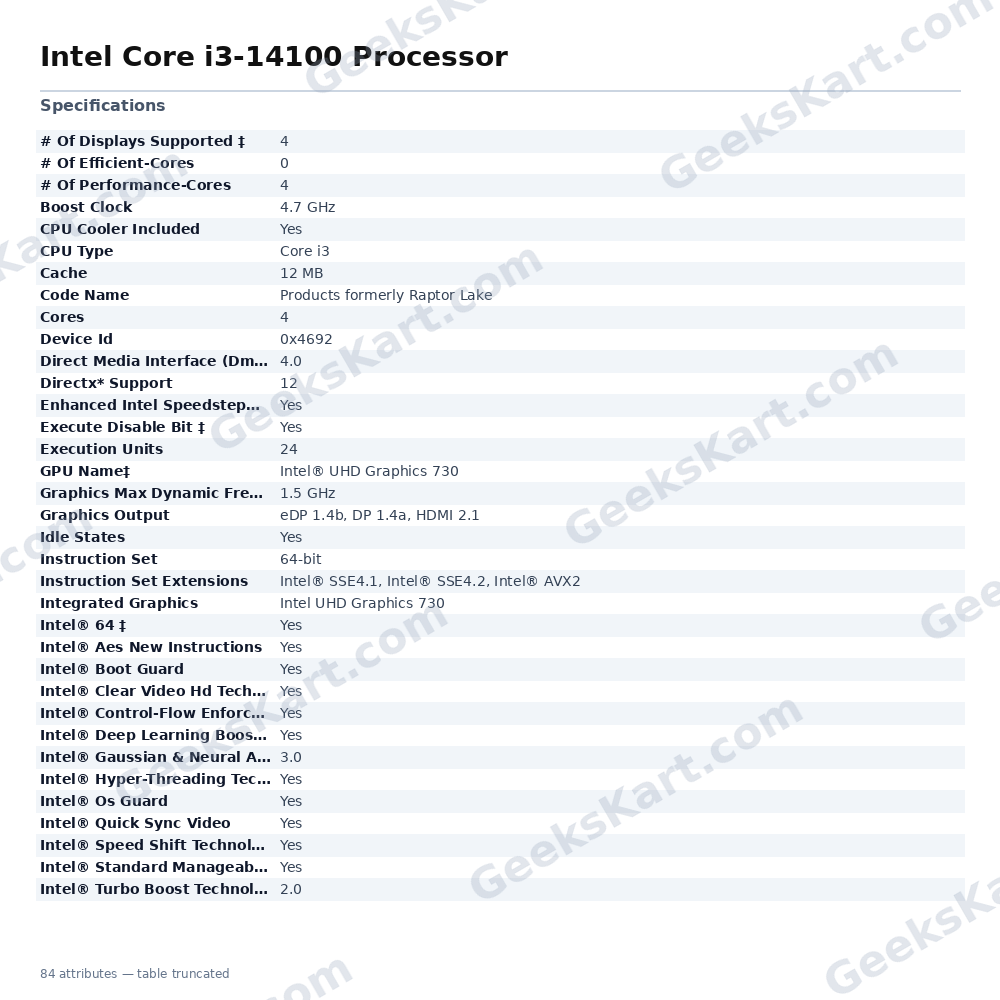

Intel Core i3-14100 Processor

The Intel Core i3-14100 is a 14th-generation desktop processor built on the Raptor Lake architecture and manufactured using Intel’s Intel 7 process node. It is designed for the FCLGA1700 socket, making it compatible with Intel 600- and 700-series motherboards that also support the i3-12100 and other LGA1700 chips. The processor features four Performance-cores (no Efficient-cores) delivering a base clock of 3.5 GHz and a maximum turbo frequency of 4.7 GHz via Intel Turbo Boost Technology 2.0. Hyper-Threading is enabled, providing eight logical threads to help with multitasking and lightly threaded workloads. The combined cache configuration includes 12 MB of Intel Smart Cache and 5 MB of L2 cache. For everyday computing, media playback, and light graphics tasks, the integrated Intel UHD Graphics 730 handles display output across up to four simultaneous monitors. It supports HDMI 2.1 (up to 4K/60 Hz), DisplayPort 1.4a (up to 8K/60 Hz), and eDP 1.4b, with a graphics boost clock of 1.5 GHz and 24 Execution Units. Memory support extends to dual-channel DDR5 at up to 4800 MT/s or DDR4 at up to 3200 MT/s, with a maximum addressable memory of 192 GB and peak bandwidth of 76.8 GB/s. The platform provides up to 20 PCIe lanes across PCIe 5.0 and 4.0 configurations (up to 1×16+4 or 2×8+4), and DMI 4.0 with eight lanes for chipset connectivity. Power consumption is rated at 60 W processor base power with a maximum turbo power of 110 W, and a thermal junction maximum of 100 °C. The package ships with a compliant boxed cooler (PCG 2020C specification) and carries a 3-year manufacturer warranty. Verified Specifications: – Cores / Threads: 4P-cores / 8 threads – Base / Boost Clock: 3.5 GHz / 4.7 GHz – Cache: 12 MB Smart Cache + 5 MB L2 – Socket: FCLGA1700 – Lithography: Intel 7 – Memory: DDR5-4800 or DDR4-3200, dual-channel, up to 192 GB – Integrated GPU: Intel UHD Graphics 730, 1.5 GHz boost, 24 EU – PCIe: 5.0 + 4.0, up to 20 lanes – TDP: 60 W base / 110 W turbo – Warranty: 3 Years – Package Size: 45.0 mm × 37.5 mm
