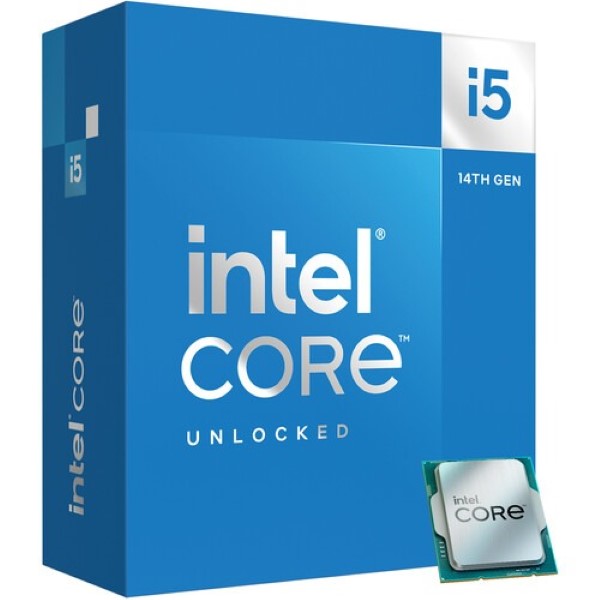

Intel Core i5-14600K LGA1700 Desktop Processor (5.3 GHz / 14 Cores / 20 Threads)
MPN BX8071514600K · Brand Intel
14 Cores & 20 Threads <li class="listItem_OMS5
Inclusive of GST · GST invoice available
Overview
- 14 Cores & 20 Threads
<li class="listItem_OMS5
Datasheet
| Model | i5-14600K |
|---|---|
| Speed | 3.5 GHz |
| Series | 14th Gen |
| Unlocked | Yes |
| Code Name | Products formerly RAPTOR LAKE |
| Tjunction | 100°C |
| Secure Key | Yes |
| Idle States | Yes |
| Launch Date | Q4'23 |
| Lithography | Intel 7 |
| Scalability | 1S Only |
| Total Cores | 14 |
| Device Id | 0xA780 |
| Intel 64 ‡ | Yes |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Package Size | 45.0 mm x 37.5 mm |
| Boost Clock | 5.3 GHz |
| Total Threads | 20 |
| Intel Os Guard | Yes |
| Total L2 Cache | 20 MB |
| Use Conditions | PC/Client/Tablet, Workstation |
| Execution Units | 32 |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Instruction Set | 64-bit |
| Opencl* Support | 3.0 |
| Opengl* Support | 4.5 |
| Directx* Support | 12 |
| Intel Boot Guard | Yes |
| Marketing Status | Launched |
| Vertical Segment | Desktop |
| Sockets Supported | FCLGA1700 |
| Max # Of Dmi Lanes | 8 |
| Product Collection | Intel Core i5 Processors (14th gen) |
| Cpu Cooler Included | No |
| Integrated Graphics | Intel UHD Graphics 770 |
| Max Turbo Frequency | 5.3 GHz |
| Maximum Turbo Power | 181 W |
| # Of Efficient-Cores | 8 |
| Max Memory Bandwidth | 89.6 GB/s |
| Pci Express Revision | 5.0 and 4.0 |
| Processor Base Power | 125 W |
| Intel Thread Director | Yes |
| Max Cpu Configuration | 1 |
| # Of Performance-Cores | 6 |
| Intel Quick Sync Video | Yes |
| Max Resolution (Dp)‡ | 7680 x 4320 @ 60Hz |
| Processor Graphics ‡ | Intel UHD Graphics 770 |
| Execute Disable Bit ‡ | Yes |
| Graphics Base Frequency | 300 MHz |
| Ecc Memory Supported ‡ | Yes |
| Max # Of Memory Channels | 2 |
| Max Resolution (Hdmi)‡ | 4096 x 2160 @ 60Hz |
| Embedded Options Available | No |
| Instruction Set Extensions | Intel SSE4.1, Intel SSE4.2, Intel AVX2 |
| Intel Aes New Instructions | Yes |
| Max # Of Pci Express Lanes | 20 |
| Multi-Format Codec Engines | 2 |
| # Of Displays Supported ‡ | 4 |
| Intel Speed Shift Technology | Yes |
| Efficient-Core Base Frequency | 2.6 GHz |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Pci Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Thermal Solution Specification | PCG 2020A |
| Intel Clear Video Hd Technology | Yes |
| Performance-Core Base Frequency | 3.5 GHz |
| Thermal Monitoring Technologies | Yes |
| Intel Turbo Boost Technology ‡ | 2.0 |
| Mode-Based Execute Control (Mbec) | Yes |
| Efficient-Core Max Turbo Frequency | 4 GHz |
| Enhanced Intel Speedstep Technology | Yes |
| Intel Gaussian & Neural Accelerator | 3.0 |
| Intel Hyper-Threading Technology ‡ | Yes |
| Performance-Core Max Turbo Frequency | 5.3 GHz |
| Direct Media Interface (Dmi) Revision | 4.0 |
| Intel Standard Manageability (Ism) ‡ | Yes |
| Intel® Volume Management Device (Vmd) | Yes |
| Intel Control-Flow Enforcement Technology | Yes |
| Intel Virtualization Technology (Vt-X) ‡ | Yes |
| Max Memory Size (Dependent On Memory Type) | 192 GB |
| Intel Vt-X With Extended Page Tables (Ept) ‡ | Yes |
| Max Resolution (Edp - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| Intel Deep Learning Boost (Intel Dl Boost) On Cpu | Yes |
| Intel Virtualization Technology For Directed I/O (Vt-D) ‡ | Yes |
| Cpu Unlocked | Yes |
| Processor Series | Core i5 |
| Memory Type | DDR4, DDR5 |
| Warranty | 3 Years |
| Socket | LGA1700 |
| Cores | 14 |
| Threads | 20 |
| TDP | 125W |
| Cache | 24 MB |
| CPU Type | Core i5 |
| Max Memory | 192 GB |
