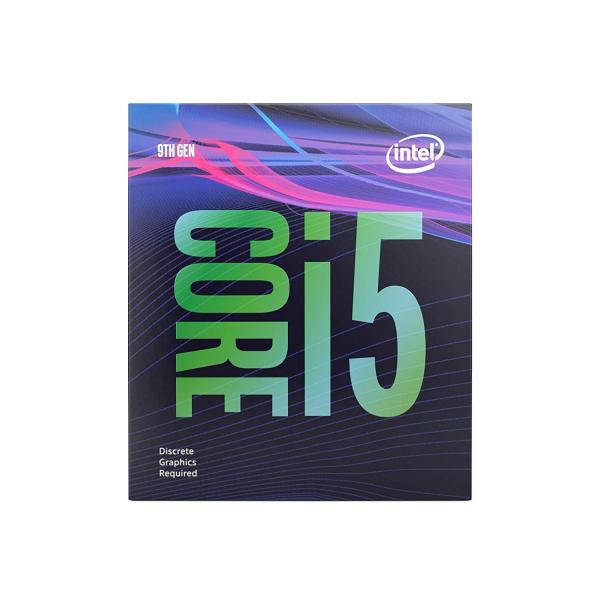

Features of INTEL Core i5 9400F 9th Generation Processor
Intel Core™ I5 9400F Desktop Processor is one of the best options in its segment. Intel® Core™ I5 9400F Desktop Processor is based on the 14nm architecture and belongs to the Coffee Lake lineup of processors.
The i5 9400F is 6 core processor with 6 threads. core i5 9400F has a base frequency of 2.90 GHz and has a max turbo frequency of 4.10 GHz. core i5 9400F has 9MB of Intel smart cache which an L3 cache and has a bus speed of 8 GT/s. Core i5 9400F has a much lower TDP of 65W making it suitable for use with a stock cooler. Max memory supported by core i5 9400F is 128 GB DDR4 memory running at 2666 MHz speed.
Core™ I5 9400F latest intel processor also supports dual-channel memory and has a max memory bandwidth of 41.6 GB/s.
Being one of the latest processors from intel it also supports PCIe 3.0. max lanes supported by 9400F is 16 lanes. It runs on an FCLGA1151 socket and the thermal solution used is PCG 2015C. package size is 37.5mm x 37.5mm.
9400F also supports intel optane memory and intel turbo boost 2.0. core i5 9400F uses a 64-bit instruction set and supports Intel SSE4.1, Intel SSE4.2, Intel AVX2 instruction extension. i5 9400F supports Intel Z390 chipset, Intel Z370 chipset, Intel Q370 chipset, Intel H370 chipset, Intel B365 chipset, Intel B360 chipset, and Intel H310 chipset.
The Intel core i5 9th Gen processor is among the best processors for those who want functional performance for the intel i5 cpu price.
- 6 Cores/ 6 Threads
- 2.90 GHz up to 4.10 GHz Max Turbo Frequency/ 9 MB Cache, Bus Speed: 8 GT/s DMI3
- Compatible only with Motherboards based on Intel 300 Series Chipsets: Intel B360 Chipset, Intel H370 Chipset, Intel H310 Chipset, Intel Q370 Chipset, Intel Z390 Chipset, Intel Z370 Chipset
- Discrete GPU required No integrated graphics. Max Memory Bandwidth – 41.6 GB/s. Max Memory Channels – 2
- Intel Optane Memory supported

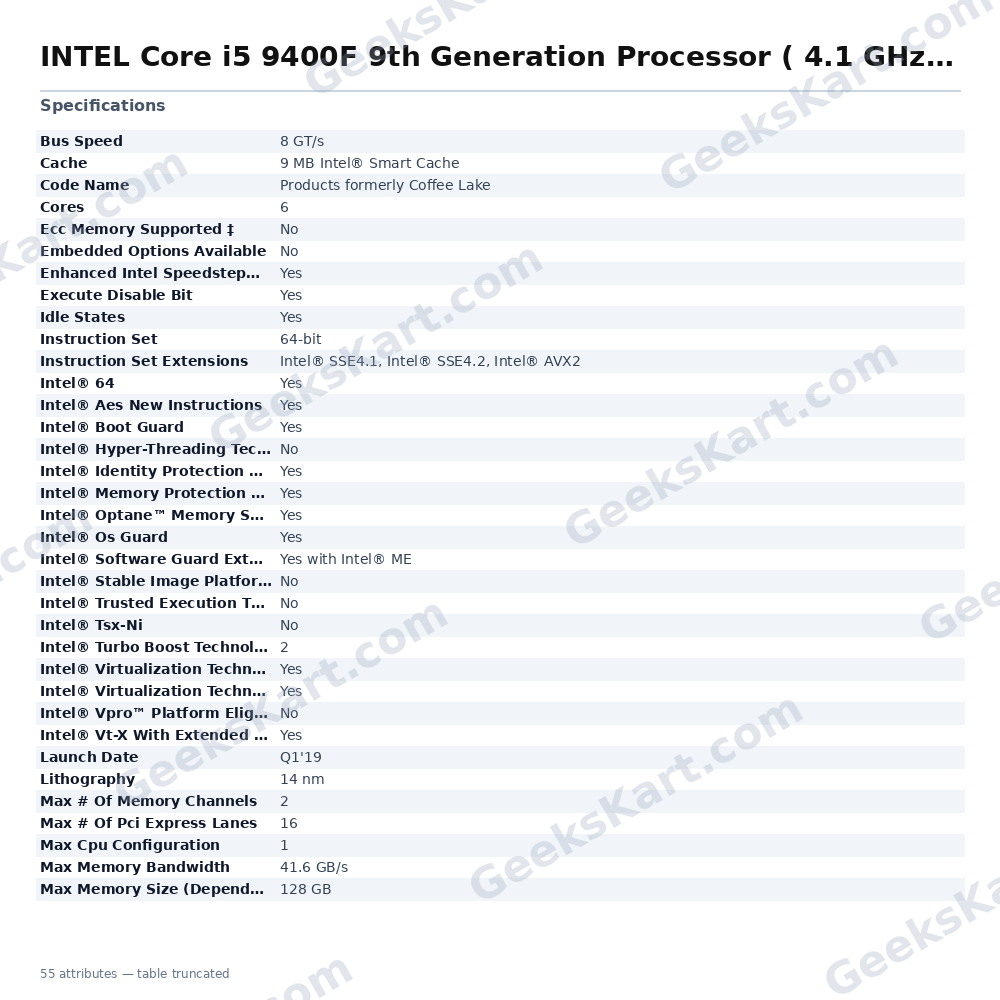

Specifications of INTEL Core i5 9400F 9th Generation Processor
| Intel Core i5-9400F Processor (9M Cache, up to 4.10 GHz) | |
| Essentials | |
| Product Collection | 9th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Coffee Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-9400F |
| Off Roadmap | No |
| Status | Launched |
| Launch Date | Q1’19 |
| Lithography | 14 nm |
| Use Conditions | PC/Client/Tablet |
| Performance | |
| # of Cores | 6 |
| # of Threads | 6 |
| Processor Base Frequency | 2.90 GHz |
| Max Turbo Frequency | 4.10 GHz |
| Cache | 9 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| TDP | 65 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-2666 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 41.6 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | N/A |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 3 |
| PCI Express Configurations ‡ | Up to 1×16, 2×8, 1×8+2×4 |
| Max # of PCI Express Lanes | 16 |
| Package Specifications | |
| Sockets Supported | FCLGA1151 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2015C (65W) |
| TJUNCTION | 100°C |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported | Yes |
| Intel® Turbo Boost Technology | 2 |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Hyper-Threading Technology | No |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Intel® TSX-NI | No |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology | Yes |
| Intel® Stable Image Platform Program (SIPP) | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | Yes with Intel® ME |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel® Boot Guard | Yes |
