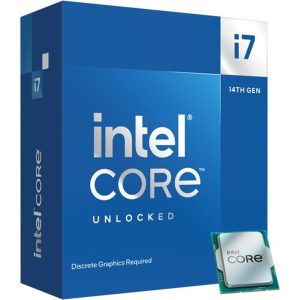

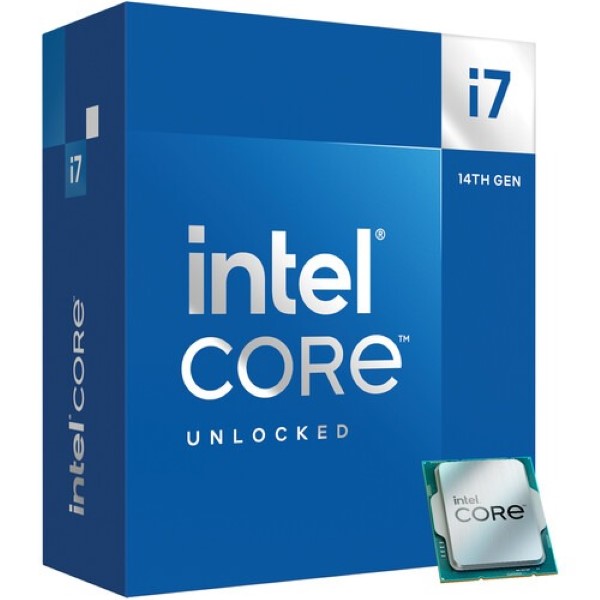

Intel Core i7-14700K LGA1700 Desktop Processor (5.6 GHz / 20 Cores / 28 Threads)
MPN BX8071514700K · Brand Intel
20 Cores & 28 Threads <li class="listItem_OMS5
Inclusive of GST · GST invoice available
Overview
- 20 Cores & 28 Threads
<li class="listItem_OMS5
Datasheet
| Model | i7-14700K |
|---|---|
| Speed | 3.4 GHz |
| Series | 14th Gen |
| Unlocked | Yes |
| Code Name | Products formerly RAPTOR LAKE |
| Device Id | 0xA780 |
| Tjunction | 100°C |
| Secure Key | Yes |
| Idle States | Yes |
| Launch Date | Q4'23 |
| Lithography | Intel 7 |
| Scalability | 1S Only |
| Total Cores | 20 |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Package Size | 45.0 mm x 37.5 mm |
| Boost Clock | 5.6 GHz |
| Total Threads | 28 |
| Intel® 64 ‡ | Yes |
| Total L2 Cache | 28 MB |
| Use Conditions | PC/Client/Tablet, Workstation |
| Execution Units | 32 |
| Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Instruction Set | 64-bit |
| Opencl* Support | 3.0 |
| Opengl* Support | 4.5 |
| Directx* Support | 12 |
| Intel® Os Guard | Yes |
| Marketing Status | Launched |
| Vertical Segment | Desktop |
| Sockets Supported | FCLGA1700 |
| Intel® Boot Guard | Yes |
| Max # Of Dmi Lanes | 8 |
| Product Collection | Intel Core i7 Processors (14th gen) |
| Cpu Cooler Included | No |
| Integrated Graphics | Intel UHD Graphics 770 |
| Max Turbo Frequency | 5.6 GHz |
| Maximum Turbo Power | 253 W |
| # Of Efficient-Cores | 12 |
| Max Memory Bandwidth | 89.6 GB/s |
| Pci Express Revision | 5.0 and 4.0 |
| Processor Base Power | 125 W |
| Max Cpu Configuration | 1 |
| # Of Performance-Cores | 8 |
| Max Resolution (Dp)‡ | 7680 x 4320 @ 60Hz |
| Processor Graphics ‡ | Intel UHD Graphics 770 |
| Execute Disable Bit ‡ | Yes |
| Graphics Base Frequency | 300 GHz |
| Intel® Thread Director | Yes |
| Ecc Memory Supported ‡ | Yes |
| Intel® Quick Sync Video | Yes |
| Max # Of Memory Channels | 2 |
| Max Resolution (Hdmi)‡ | 4096 x 2160 @ 60Hz |
| Embedded Options Available | No |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Max # Of Pci Express Lanes | 20 |
| Multi-Format Codec Engines | 2 |
| Intel® Aes New Instructions | Yes |
| Efficient-Core Base Frequency | 2.5 GHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Intel® Speed Shift Technology | Yes |
| Pci Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
| Thermal Solution Specification | PCG 2020A |
| Performance-Core Base Frequency | 3.4 GHz |
| Thermal Monitoring Technologies | Yes |
| Intel® Clear Video Hd Technology | Yes |
| Mode-Based Execute Control (Mbec) | Yes |
| Efficient-Core Max Turbo Frequency | 4.3 GHz |
| Intel® Turbo Boost Technology ‡ | 2.0 |
| Performance-Core Max Turbo Frequency | 5.5 GHz |
| Direct Media Interface (Dmi) Revision | 4.0 |
| Enhanced Intel Speedstep® Technology | Yes |
| Intel® Gaussian & Neural Accelerator | 3.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Volume Management Device (Vmd) | Yes |
| Intel® Standard Manageability (Ism) ‡ | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Max Memory Size (Dependent On Memory Type) | 192 GB |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Virtualization Technology (Vt-X) ‡ | Yes |
| Max Resolution (Edp - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| Intel® Vt-X With Extended Page Tables (Ept) ‡ | Yes |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.6 GHz |
| Intel® Deep Learning Boost (Intel® Dl Boost) On Cpu | Yes |
| Intel® Virtualization Technology For Directed I/O (Vt-D) ‡ | Yes |
| Cpu Unlocked | Yes |
| Processor Series | Core i7 |
| Memory Type | DDR4, DDR5 |
| Warranty | 3 Years |
| Socket | LGA1700 |
| Cores | 20 |
| Threads | 28 |
| TDP | 125W |
| Cache | 33 MB |
| CPU Type | Core i7 |
| Max Memory | 192 GB |
