Features of INTEL Pentium Gold 12th Generation G7400 Processor ( 3.7 GHz / 2 Cores / 4 Threads )
- The Intel Pentium Gold G7400 Processor is a part of the Intel Pentium Gold Processor Series. It was launched in the first quarter of 2022. This processor is designed for desktop use and comes with 2 cores and 4 threads, which makes it capable of handling multiple tasks efficiently. It operates at a base frequency of 3.70 GHz and has a total cache of 6 MB, which helps in faster data access.
- The processor can support a maximum memory size of 128 GB, providing ample space for data storage and quick retrieval. It has a thermal power of 46 W, which indicates the amount of power the cooling system needs to dissipate to prevent overheating.
- In addition to these features, the processor also comes with an integrated graphics processing unit (GPU) called Intel UHD Graphics 710. This GPU operates at a base frequency of 300 MHz and has 16 execution units, which can deliver decent performance for basic graphics-related tasks.
- Overall, the Intel Pentium Gold G7400 Processor is a reliable and efficient choice for general computing tasks. It offers a good balance of performance, power consumption, and price.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
The integrated Intel UHD 710 Graphics delivers rich 3D performance with high-quality visuals.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

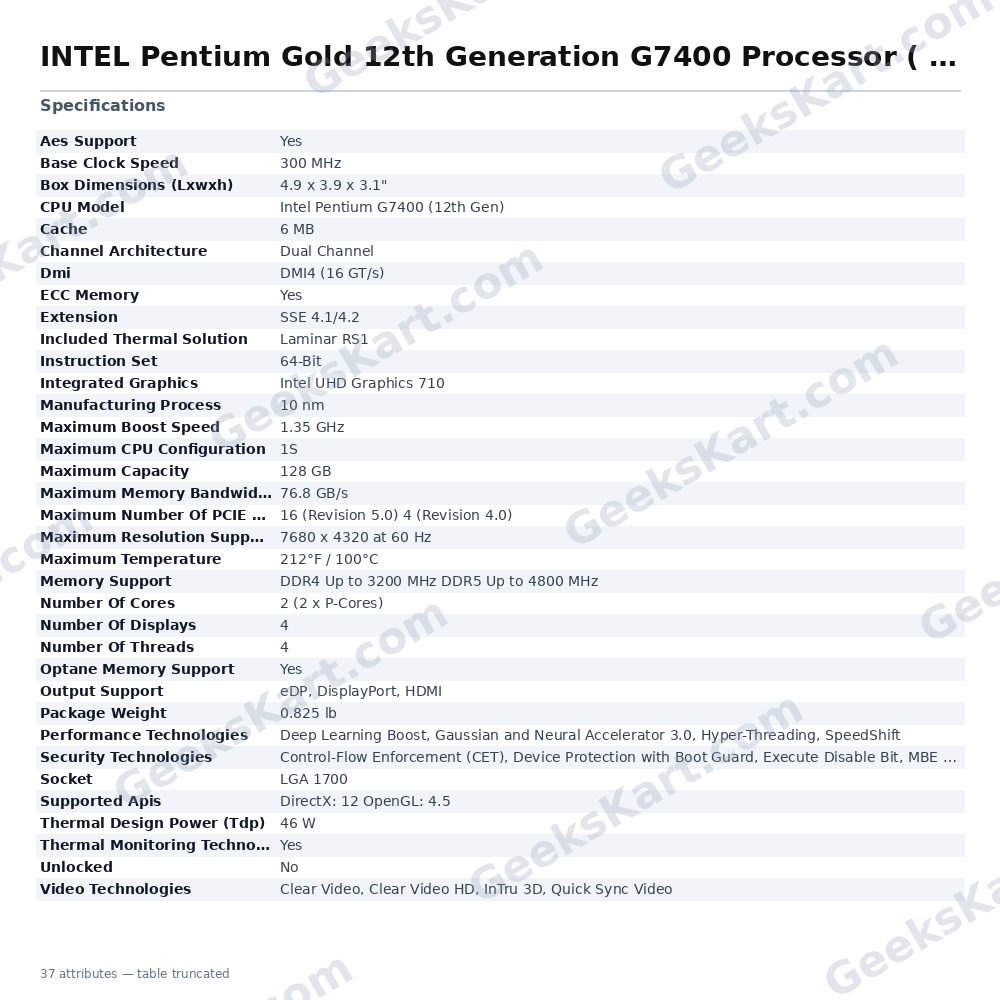

Specifications of INTEL Pentium Gold 12th Generation G7400 Processor ( 3.7 GHz / 2 Cores / 4 Threads )
| CPU Model | Intel Pentium G7400 (12th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 5.0) 4 (Revision 4.0) |
| Unlocked | No |
| Performance | |
| Number of Cores | 2 (2 x P-Cores) |
| Number of Threads | 4 |
| Base Clock Speed | P-Core: 3.7 GHz |
| L3 Cache | 6 MB |
| Memory Support | |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 Up to 3200 MHz DDR5 Up to 4800 MHz |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 76.8 GB/s |
| Optane Memory Support | Yes |
| Power | |
| Thermal Design Power (TDP) | 46 W |
| Included Thermal Solution | Laminar RS1 |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | No |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedShift |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
| Integrated Graphics | |
| Integrated Graphics | Intel UHD Graphics 710 |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12 OpenGL: 4.5 |
| Number of Displays | 4 |
| Output Support | eDP, DisplayPort, HDMI |
| Base Clock Speed | 300 MHz |
| Maximum Boost Speed | 1.35 GHz |
| Packaging Info | |
| Package Weight | 0.825 lb |
| Box Dimensions (LxWxH) | 4.9 x 3.9 x 3.1″ |
