MSI B760M Project Zero WiFi DDR5 Intel Motherboard
MPN MSI-B760M-PROJECT-ZERO-WIFI · Brand MSI
The MSI B760M Project Zero WiFi is an Intel B760 mATX motherboard with a back-connect design that moves all cables to the rear of the PCB, paired with DDR5 support up to 192 GB, Intel Wi-Fi 6E, 2.5G LAN, and a PCIe 5.0 x16 slot for a clean and capable build
Inclusive of GST · GST invoice available
Overview

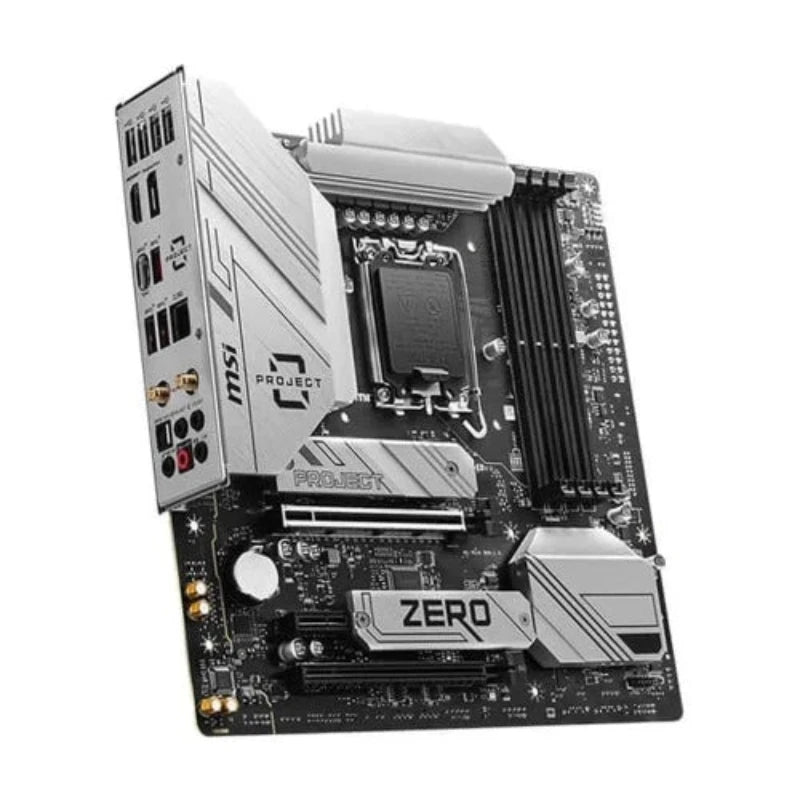

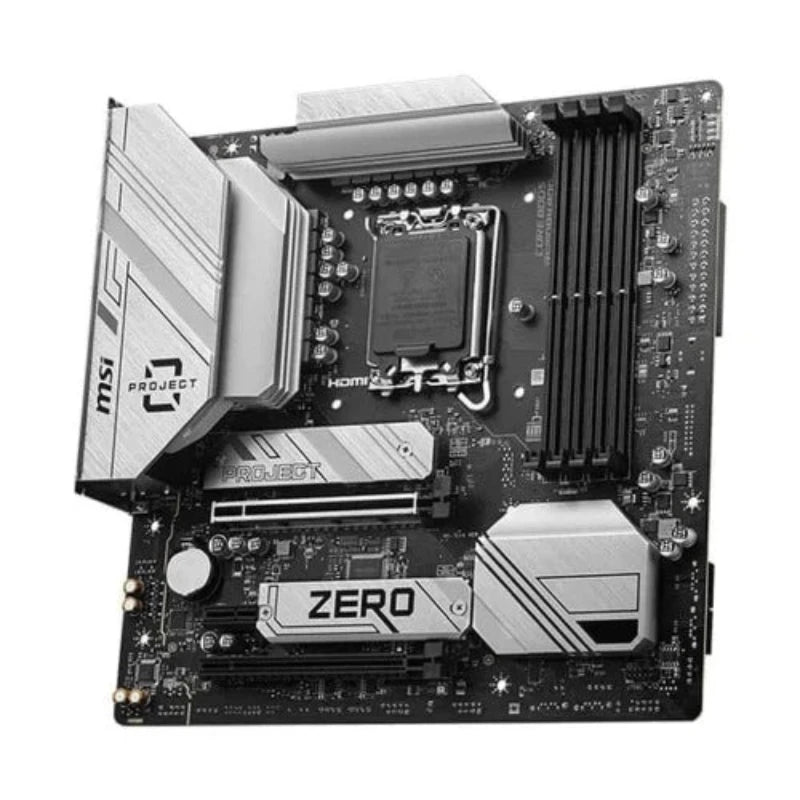

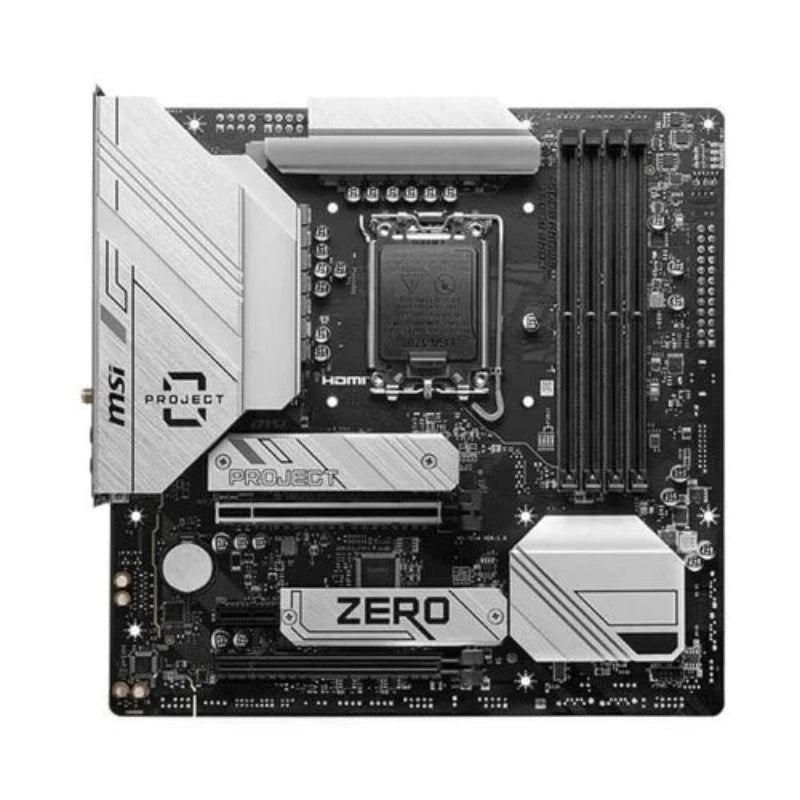

The MSI B760M Project Zero WiFi is a Micro-ATX motherboard built around the Intel B760 chipset, designed for builders who prioritise a clean, clutter-free interior aesthetic without sacrificing connectivity or performance headroom. Its defining feature is the back-connect design, which relocates the ATX power connector, dual CPU power connectors, fan headers, SATA ports, and other pin headers to the rear of the PCB. The result is a front-facing board free of cable clutter, letting your liquid cooler, graphics card, and chassis lighting take centre stage. The board supports Intel Core 12th, 13th, and 14th generation processors via the LGA1700 socket, as well as Intel Pentium Gold and Celeron processors in the same socket class. Four DDR5 slots accommodate up to 192 GB of memory, with JEDEC speeds starting at 4800 MHz and overclocking headroom extending to 7800+ MHz under the right conditions using Intel XMP profiles. For storage, two M.2 slots are available — the first runs directly from the CPU at up to PCIe 4.0 x4, while the second connects through the chipset and supports both PCIe 4.0 x4 and SATA modes. Four SATA 6Gbps ports round out the storage options, with support for RAID 0, 1, 5, and 10 across SATA devices. Expansion slots include a PCIe 5.0 x16 slot from the CPU alongside a chipset-fed PCIe 3.0 x1 slot. Wireless connectivity is handled by an Intel Wi-Fi 6E module pre-installed in the M.2 Key-E slot, supporting MU-MIMO on 2.4 GHz, 5 GHz, and 6 GHz bands (160 MHz) at up to 2.4 Gbps, plus Bluetooth 5.3. Wired networking uses a Realtek 2.5 Gbps LAN controller. The rear I/O panel includes HDMI 2.1 and DisplayPort 1.4 outputs for systems with integrated graphics, a USB 3.2 Gen 2x2 Type-C port at 20 Gbps, three USB 3.2 Gen 2 Type-A ports at 10 Gbps, and optical S/PDIF audio output alongside the Realtek ALC897 7.1-channel HD audio codec. The power delivery system uses a 10+2+1 phase direct VRM design fed by dual 8-pin CPU power connectors, supported by MSI's Core Boost technology for sustained performance under gaming and productivity workloads. A dedicated pump fan header rated up to 3 A gives water-cooling users direct pump speed control. Addressable Gen 2 and standard RGB headers are included for lighting customisation, and four EZ Debug LEDs aid troubleshooting during POST. Verified Specifications: Chipset: Intel B760 | Socket: LGA1700 | Form Factor: mATX (243.84 mm x 243.84 mm) | Memory: 4x DDR5, max 192 GB, 4800–7800+ MHz (XMP/OC) | Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6G | GPU Slot: PCIe 5.0 x16 (CPU) | LAN: Realtek 2.5 Gbps | Wireless: Intel Wi-Fi 6E + Bluetooth 5.3 | Audio: Realtek ALC897, 7.1-channel | USB Rear: 4x USB 2.0, 3x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C | Display: HDMI 2.1, DisplayPort 1.4 | Warranty: 3 Years

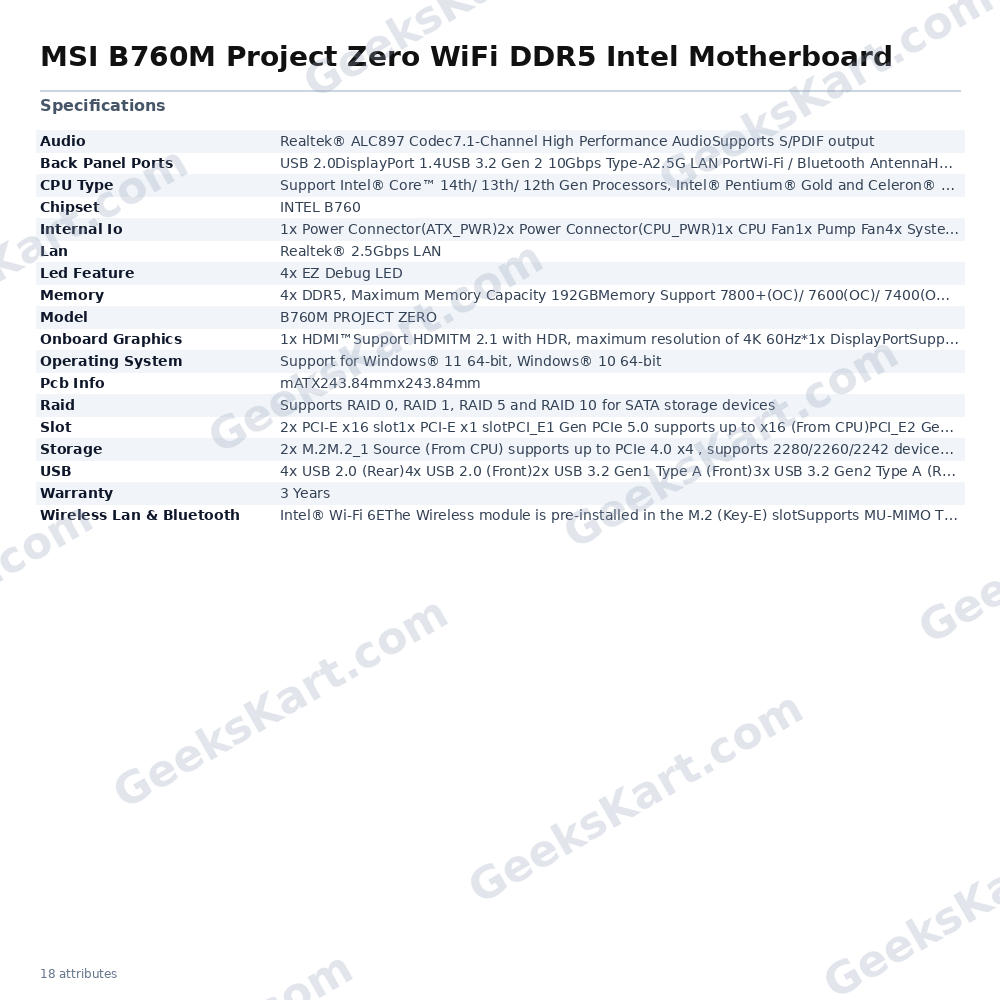

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | Support Intel® CoreTM 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA1700 |
| Lan | Realtek® 2.5Gbps LAN |
| USB | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Front)3x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Slot | 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Performance AudioSupports S/PDIF output |
| Model | B760M PROJECT ZERO |
| Memory | 4x DDR5, Maximum Memory Capacity 192GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile |
| Storage | 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G |
| Pcb Info | mATX243.84mmx243.84mm |
| Internal Io | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports |
| Led Feature | 4x EZ Debug LED |

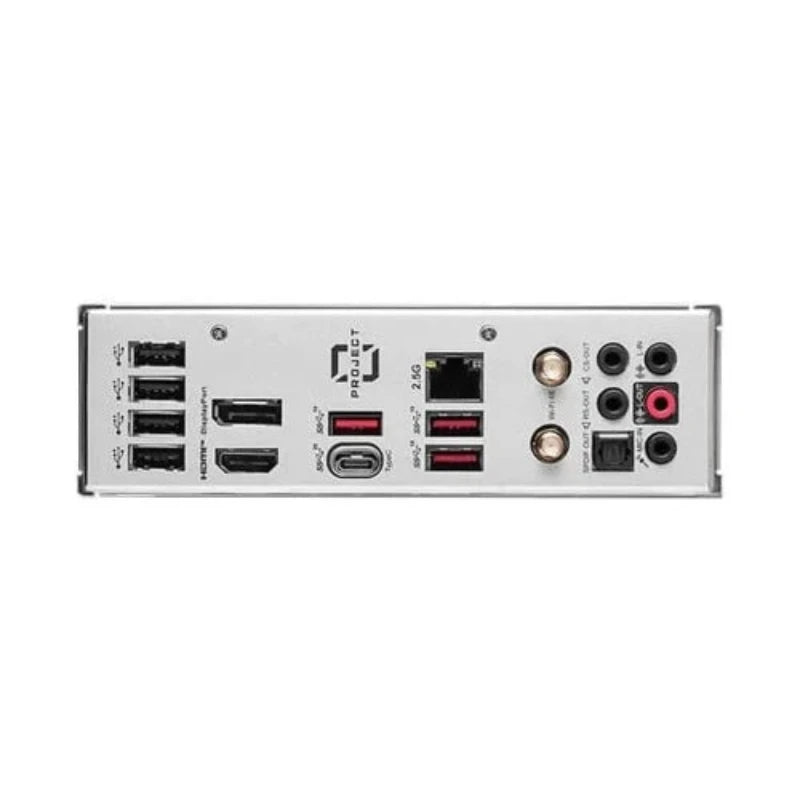

| Back Panel Ports | USB 2.0DisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI™ 2.1 PortUSB 3.2 Gen 2×2 20Gbps Type-COptical S/PDIF OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11 |
