MSI B860M Gaming Plus WiFi 6E Micro-ATX Motherboard (LGA1851, DDR5, PCIe 5.0)
MPN B860M-GAMING-PLUS-WIFI6E · Brand MSI · mATX
MSI B860M Gaming Plus WiFi 6E is a Micro-ATX motherboard for Intel LGA1851 Core Ultra Series 2 processors, featuring PCIe 5.0, DDR5 support up to 8800+ MT/s, Intel Killer 5G LAN, Wi-Fi 6E, and a 6-layer PCB with robust VRM cooling
Inclusive of GST · GST invoice available
Overview
The MSI B860M Gaming Plus WiFi 6E is a Micro-ATX motherboard built for Intel's LGA1851 socket, designed to support Intel Core Ultra Processors (Series 2). It combines a compact form factor with a feature set that covers fast connectivity, robust power delivery, and practical ease-of-use enhancements — making it a strong choice for mid-range gaming and productivity builds alike. On the connectivity front, the board integrates Intel Killer 5G LAN alongside Wi-Fi 6E and Bluetooth 5.3, ensuring low-latency wired and wireless networking. A front-panel USB Type-C header adds modern convenience for chassis with high-speed front I/O. The rear panel further includes USB 10Gbps (Type-A and Type-C), USB 5Gbps ports, HDMI, DisplayPort, and dedicated audio connectors — covering all typical desktop connectivity needs without the need for add-in cards. For memory, four DDR5 UDIMM slots support up to 256 GB of system RAM. In a single-DIMM-per-channel, single-rank configuration, speeds can reach up to 8800+ MT/s via overclocking (XMP 3.0 supported). The board also supports CUDIMM modules and Intel XMP 3.0 for straightforward memory tuning. Dual-channel mode is available across all supported configurations. Storage and expansion are well catered for: the primary PCIe x16 slot runs at PCIe 5.0 (from the CPU), and MSI's EZ PCIe Clip II allows single-finger GPU removal. M.2 slots with EZ M.2 Shield Frozr II thermal covers keep SSDs cool under load, and Lightning Gen 5 x4 M.2 support enables the fastest NVMe drives available. Thermal management comes via an extended VRM heatsink with 7W/mK MOSFET thermal pads and additional choke thermal pads, backed by a 6-layer PCB using MSI's PCB Fabric Technology for signal integrity and thermal stability. EZ Debug LEDs and an EZ Memory Detection LED simplify troubleshooting. A Thunderbolt 5 card connector (JTBT5 with RTD3 support) is included internally for future expansion. Verified Specifications: • Socket: LGA1851 • Chipset: Intel B860 • Form Factor: Micro-ATX • CPU Support: Intel Core Ultra Processors (Series 2) • Memory: 4x DDR5 UDIMM, max 256 GB; up to 8800+ MT/s (OC, 1DPC 1R); XMP 3.0; Dual Channel • Primary PCIe Slot: PCIe 5.0 x16 (CPU) • Additional Slots: PCIe 4.0 x1 (×2), PCIe 4.0 x4 (Chipset) • Wireless: Wi-Fi 6E + Bluetooth 5.3 • LAN: Intel Killer 5G • Display Output: 1× HDMI, 1× DisplayPort • USB (Rear): USB 10Gbps Type-A, USB 5Gbps Type-A, USB 5Gbps Type-C, USB 2.0 • Internal: Thunderbolt 5 card connector, 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C • Audio: Audio Boost (rear audio connectors) • RGB: 2× ARGB Gen 2 headers, 1× RGB header • PCB: 6-layer, server-grade • Warranty: 3 Years

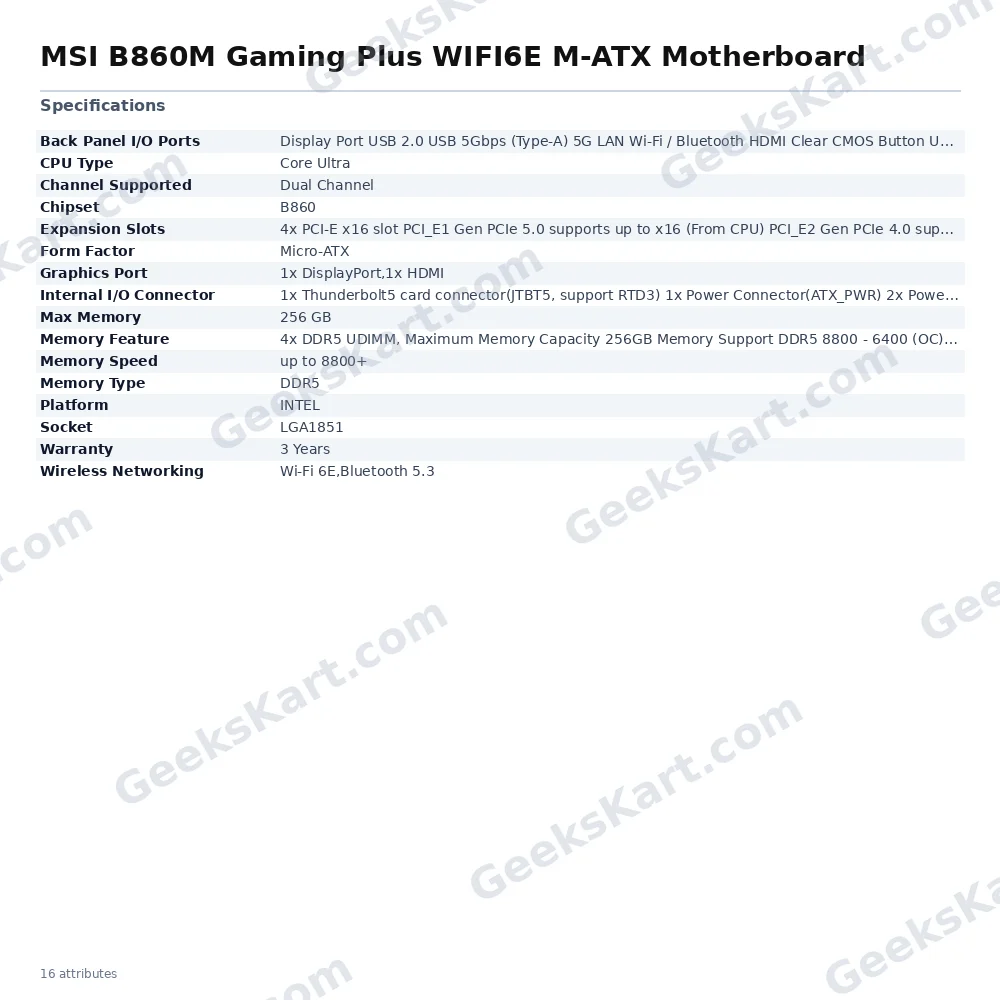

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B860 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 256 GB |
| Memory Speed | up to 8800+ |
| Platform | INTEL |
| Graphics Port | 1x DisplayPort,1x HDMI |
| Memory Feature | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the MSI Official Website |
| Expansion Slots | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | Display Port USB 2.0 USB 5Gbps (Type-A) 5G LAN Wi-Fi / Bluetooth HDMI Clear CMOS Button USB 5Gbps (Type-C) USB 10Gbps (Type-A) Audio Connectors |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
