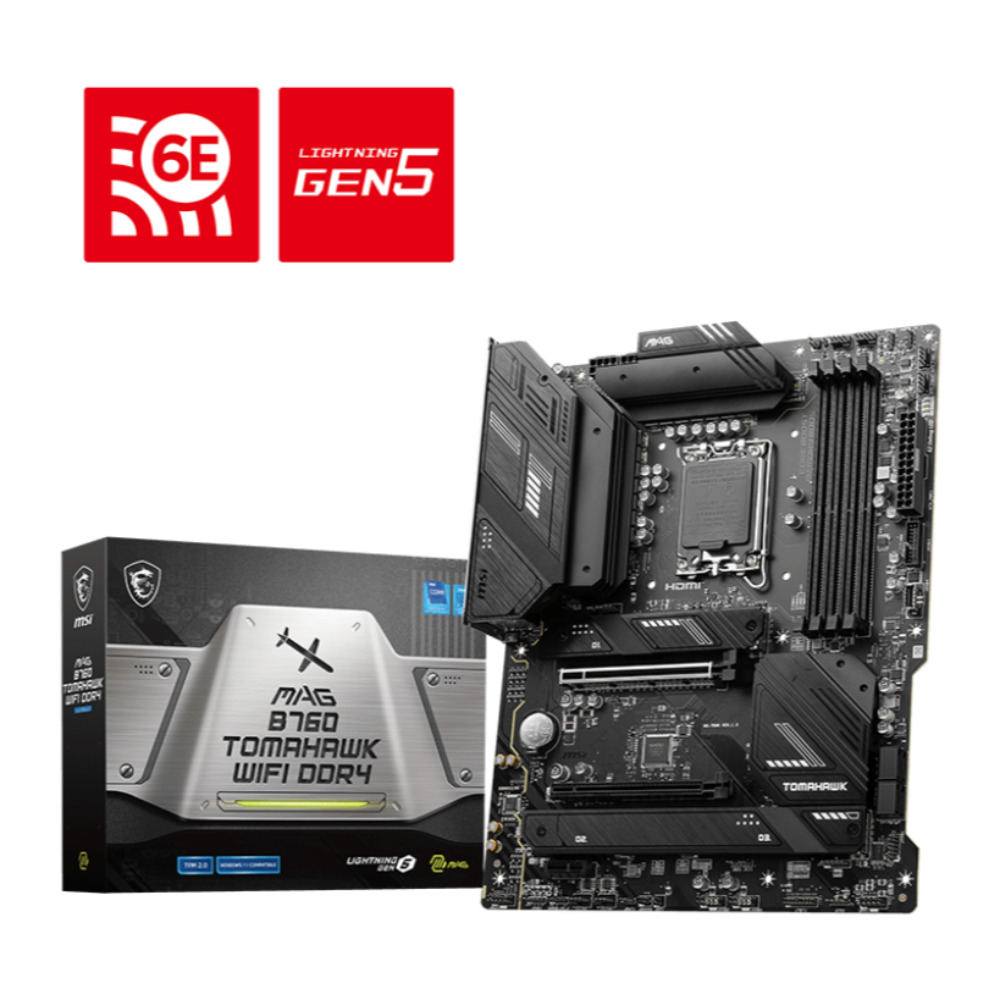

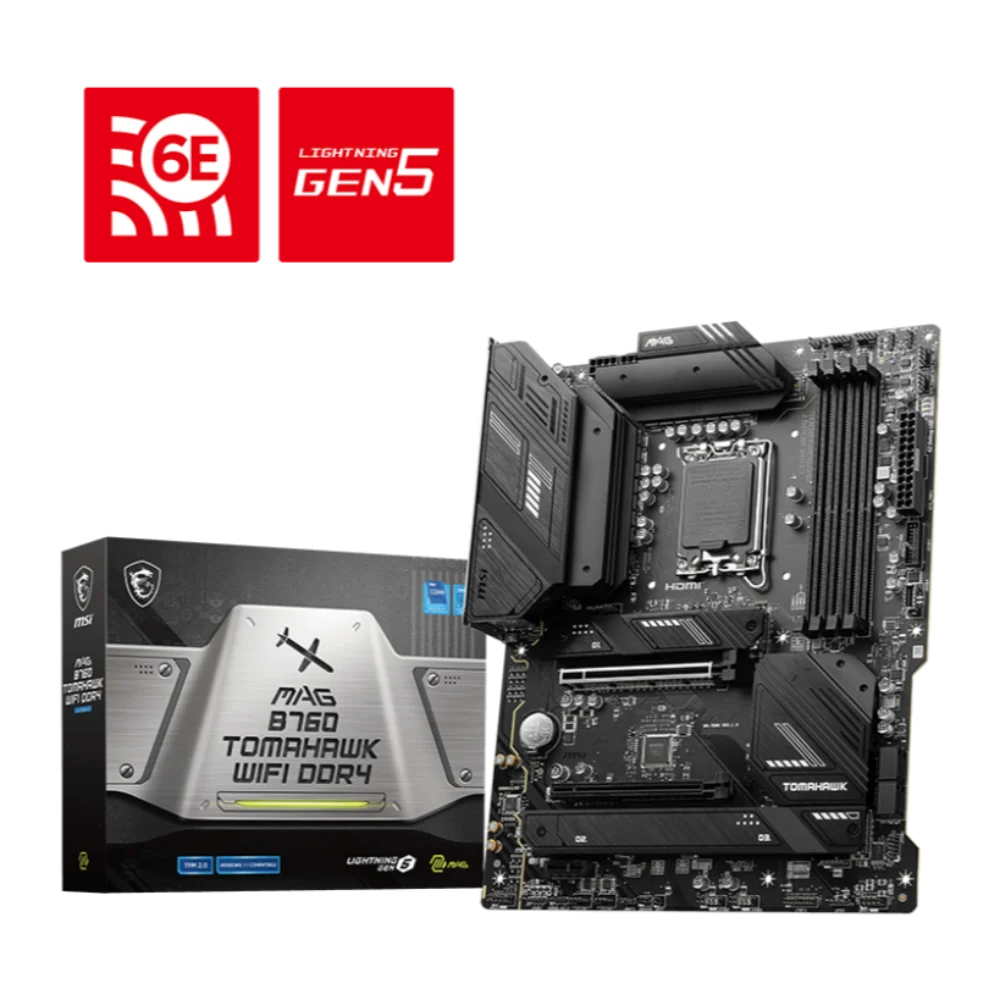

MSI MAG B760 Tomahawk Wifi DDR4 Intel Motherboard
MPN B760-TOMAHAWK-WI-FI-DDR4 · Brand MSI
The MSI MAG B760 Tomahawk WiFi DDR4 is an ATX motherboard for Intel 12th/13th Gen LGA1700 CPUs, featuring PCIe 5.0, Intel Wi-Fi 6E, three M.2 PCIe 4.0 slots, and support for up to 128 GB DDR4 at 5333 MHz (OC)
Inclusive of GST · GST invoice available
Overview
The MSI MAG B760 Tomahawk WiFi DDR4 is an ATX-form-factor motherboard built on Intel's B760 chipset, designed for LGA1700-socket processors from Intel's 12th and 13th Generation Core, Pentium Gold, and Celeron families. It delivers a well-rounded feature set for gaming and productivity builds that demand reliable connectivity, strong storage expandability, and capable overclocking headroom within a mid-range platform. At the heart of the power delivery sits a 12+1+1 Duet Rail Power System fed by dual 8-pin CPU power connectors, giving the board the headroom needed to run higher-TDP processors without throttling. Four DDR4 slots accept up to 128 GB of memory and support frequencies from JEDEC-standard 2133 MHz up to 5333 MHz under XMP/OC profiles, making it equally suited to entry-level and enthusiast memory kits. Expansion is covered by a primary PCIe 5.0 x16 slot fed directly by the CPU, a secondary PCIe 3.0 x4 slot from the chipset, and a PCIe 4.0 x1 slot. Storage options include three M.2 slots—M.2_1 connected to the CPU at PCIe 4.0 x4 and supporting up to 22110-length drives, M.2_2 and M.2_3 both chipset-fed at PCIe 4.0 x4 (M.2_3 also supports SATA mode)—plus four SATA 6 Gb/s ports with RAID 0/1/5/10 support. All M.2 slots are covered by MSI's M.2 Shield Frozr thermal solution. Wireless connectivity is handled by an Intel Wi-Fi 6E module pre-installed in the M.2 Key-E slot, covering 2.4 GHz, 5 GHz, and 6 GHz bands at up to 2.4 Gbps with MU-MIMO TX/RX, alongside Bluetooth 5.3. Wired networking uses a Realtek 2.5 Gbps LAN controller. The rear I/O panel includes HDMI 2.1 (4K 60 Hz), DisplayPort 1.4 (8K 60 Hz), four USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2x2 Type-C port (20 Gbps), and optical S/PDIF output. Audio is managed by a Realtek ALC897 codec with 7.1-channel output. For builders who value RGB customisation, the board carries two ARGB V2 headers and two standard RGB headers, alongside four EZ Debug LEDs for rapid POST diagnostics. The 6-layer PCB is manufactured with 2 oz thickened copper. The board carries a 3-year warranty. Verified Specifications: Model: MAG B760 TOMAHAWK WIFI DDR4 | Chipset: Intel B760 | Socket: LGA1700 | CPU Support: 12th/13th Gen Intel Core, Pentium Gold, Celeron | Memory: 4x DDR4 slots, max 128 GB, up to 5333 MHz (OC) | PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x4 (Chipset), 1x PCIe 4.0 x1 (Chipset) | Storage: 3x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s, RAID 0/1/5/10 | LAN: Realtek 2.5 Gbps | Wireless: Intel Wi-Fi 6E (802.11ax), BT 5.3 | Audio: Realtek ALC897, 7.1-channel | Rear USB: 4x USB 2.0, 4x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2x2 Type-C | Video Out: HDMI 2.1, DisplayPort 1.4 | Form Factor: ATX (243.84 mm x 304.8 mm) | Warranty: 3 Years

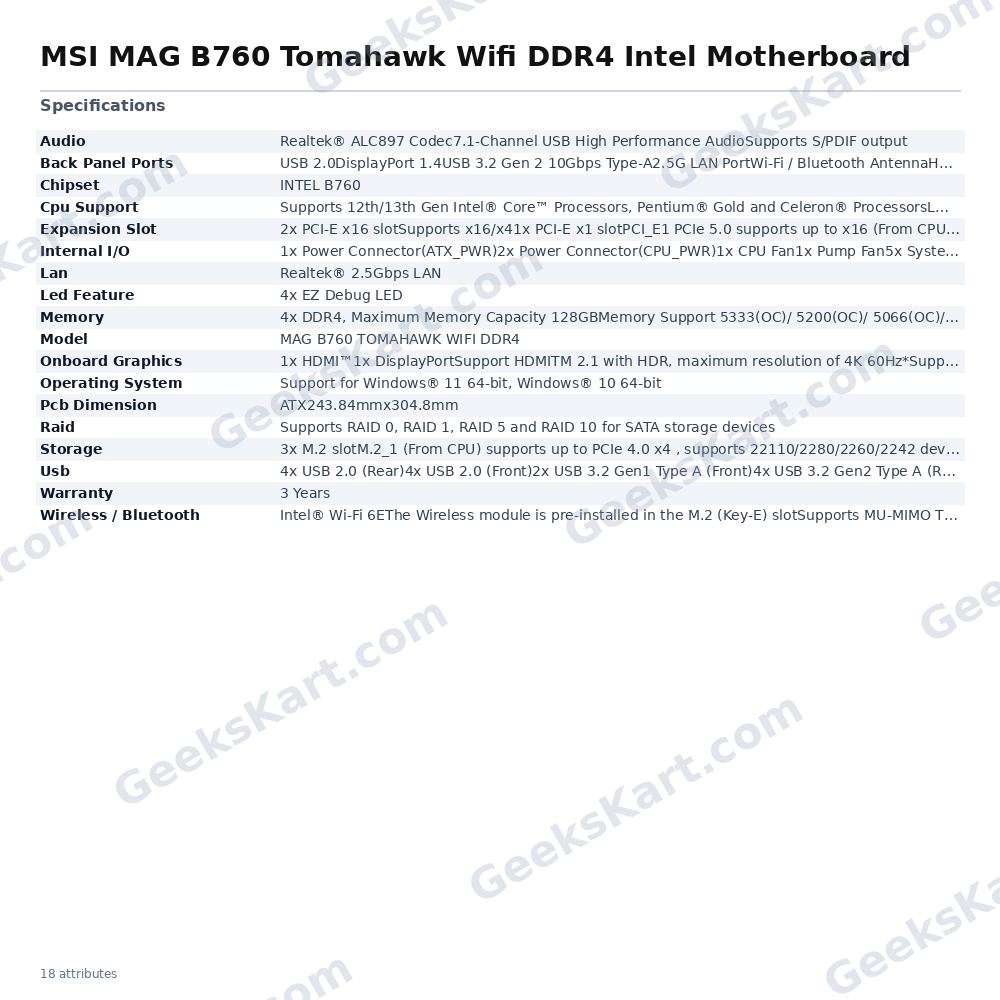

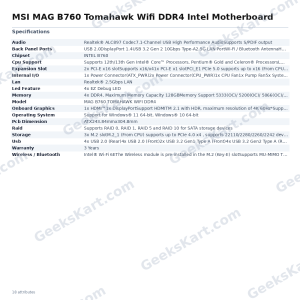

Datasheet
| Lan | Realtek® 2.5Gbps LAN |
|---|---|
| Usb | 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Front)4x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output |
| Model | MAG B760 TOMAHAWK WIFI DDR4 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GBMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 5333+ MHz• 1DPC 2R Max speed up to 4800+ MHz• 2DPC 1R Max speed up to 4400+ MHz• 2DPC 2R Max speed up to 4000+ MHz |
| Storage | 3x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G port |
| Cpu Support | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® ProcessorsLGA1700 |
| Led Feature | 4x EZ Debug LED |
| Internal I/O | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C |
| Pcb Dimension | ATX243.84mmx304.8mm |
| Expansion Slot | 2x PCI-E x16 slotSupports x16/x41x PCI-E x1 slotPCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 3.0 supports up to x4 (From Chipset)PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Back Panel Ports | USB 2.0DisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI™ 2.1 PortUSB 3.2 Gen 2×2 20Gbps Type-COptical S/PDIF OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™1x DisplayPortSupport HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*Support DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless / Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11 |
| Warranty | 3 Years |
| Chipset | INTEL B760 |
