MSI MPG B460I Gaming Edge Wifi DDR4 Intel Motherboard
MPN MSI-MPG-B460I-GAMING-EDGE-WI-FI · Brand MSI

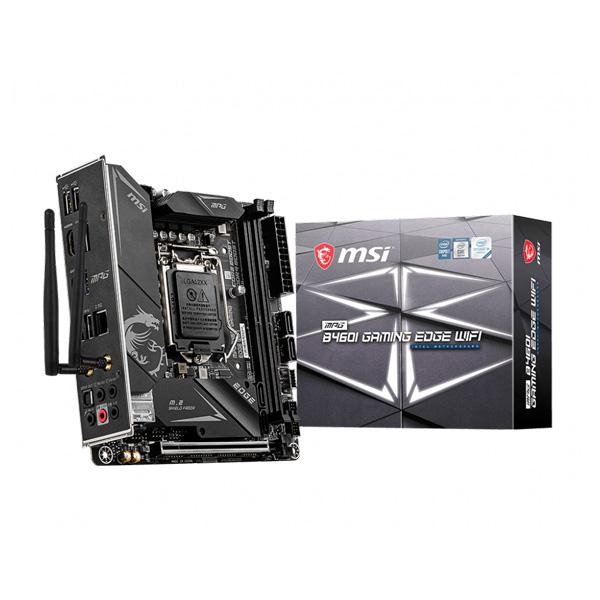

MSI MPG B460I Gaming Edge WiFi is a Mini-ITX motherboard for Intel 10th Gen LGA 1200 CPUs, featuring Intel Wi-Fi 6 (AX200), 2.5G LAN, dual DDR4 slots up to 64 GB, and two M.2 slots in a 17 cm x 17 cm footprint
Inclusive of GST · GST invoice available
Overview
The MSI MPG B460I Gaming Edge WiFi is a Mini-ITX form factor motherboard built on the Intel B460 chipset, designed for Intel 10th Generation processors using the LGA 1200 socket. Measuring just 17.0 cm x 17.0 cm (6.7 in. x 6.7 in.), it packs a feature-rich specification set into a compact footprint suited to small-form-factor gaming and workstation builds. Memory support spans two DDR4 slots with a maximum capacity of 64 GB. Intel Core i7 and i9 processors can run memory up to DDR4 2933 MHz, while Core i5 and below are supported up to DDR4 2666 MHz. Both slots operate in dual-channel mode and are compatible with Intel Extreme Memory Profile (XMP) modules. Only non-ECC, unbuffered memory is supported. For storage, the board provides four SATA 6 Gb/s ports alongside two M.2 Key-M slots. The M2_1 slot supports PCIe 3.0 x4 and SATA 6 Gb/s for 2280 devices, while M2_2 supports PCIe 3.0 x4 for 2280 devices and is Intel Optane Memory ready. RAID configurations 0, 1, 5, and 10 are available for SATA storage. Networking is handled by a Realtek RTL8125B controller providing 2.5 Gbps wired LAN, paired with an Intel AX200 wireless module pre-installed in the Key-E M.2 slot. The AX200 supports 802.11 a/b/g/n/ac/ax (Wi-Fi 6) across 2.4 GHz and 5 GHz bands with 160 MHz channel support and speeds up to 2.4 Gbps, plus Bluetooth 5.1. A 6+1+1 digital power design with extended PWM heatsink and M.2 Shield Frozr thermal covers supports sustained CPU and NVMe performance. A single PCIe 3.0 x16 slot sourced from the CPU handles discrete graphics. Display output from integrated graphics is available via one HDMI port (up to 4096x2160 at 30 Hz) and one DisplayPort (up to 4096x2304 at 60 Hz). Audio is managed by a Realtek ALC1200 codec delivering 7.1-channel HD audio with optical S/PDIF output. USB connectivity includes two USB 3.2 Gen 1 Type-C ports, five USB 3.2 Gen 1 Type-A ports, and four USB 2.0 ports spread across the rear panel and internal headers. RGB personalisation is supported via a 4-pin RGB connector and a 3-pin addressable LED connector, with MSI Mystic Light synchronisation. Verified Specifications: - Form Factor: Mini-ITX, 17.0 cm x 17.0 cm - Chipset: Intel B460 - Socket: LGA 1200 (Intel 10th Gen) - Memory: 2x DDR4, up to 64 GB, dual-channel, XMP support - Storage: 4x SATA 6 Gb/s, 2x M.2 PCIe 3.0 x4 (Key-M) - Expansion: 1x PCIe 3.0 x16 (CPU) - LAN: Realtek RTL8125B 2.5 Gbps - Wireless: Intel AX200, Wi-Fi 6, Bluetooth 5.1 - Audio: Realtek ALC1200, 7.1-ch HD, S/PDIF out - I/O Controller: NUVOTON NCT6687 - Warranty: 3 Years

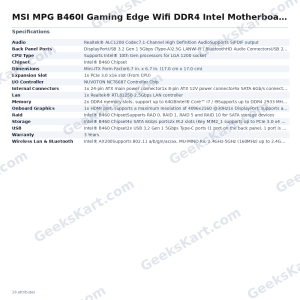

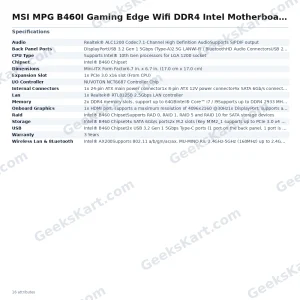

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | Intel® B460 Chipset |
| CPU Type | Supports Intel® 10th Gen processors for LGA 1200 socket |
| Lan | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
| USB | Intel® B460 Chipset2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port is available through the internal USB 3.2 Gen 1 5Gbps Type-C connector)5x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector |
| Raid | Intel® B460 ChipsetSupports RAD 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Memory | 2x DDR4 memory slots, support up to 64GBIntel® Core™ i7 / i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP) |
| Storage | Intel® B460 Chipset4x SATA 6Gb/s ports2x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2280 storage devicesM2_2 supports up to PCIe 3.0 x4, 2280 storage devicesIntel® 0ptane™ Memory Ready for M2_2 slot |
| Dimensions | Mini-ITX Form Factor6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| Expansion Slot | 1x PCIe 3.0 x16 slot (From CPU) |
| I/O Controller | NUVOTON NCT6687 Controller Chip |
| Back Panel Ports | DisplayPortUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothHD Audio ConnectorsUSB 2.0HDMIUSB 3.2 Gen 1 5Gbps (Type-C)USB 3.2 Gen 1 5Gbps (Type-A)Optical S/PDIF OUT |
| Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @30Hz1x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz |
| Internal Connectors | 1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)1x USB 2.0 connector (supports additional 2 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector1x 4-pin system fan connector1x Front panel audio connector1x System panel connector1x 4-pin RGB LED connector1x 3-pin RAINB0W LED connector1x Chassis Intrusion connector1xTPM module connector1x Clear CM0S jumper4x EZ Debug LED |
| Wireless Lan & 8Luetooth | Intel® AX200Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4GbpsWiFi 6 Pre-CertifiedSupports Bluetooth® 5.1 , FIPS, FISMAThe Wireless module is pre-install in the M2 (Key-E) slotOnly support windows 10 64-bit |
