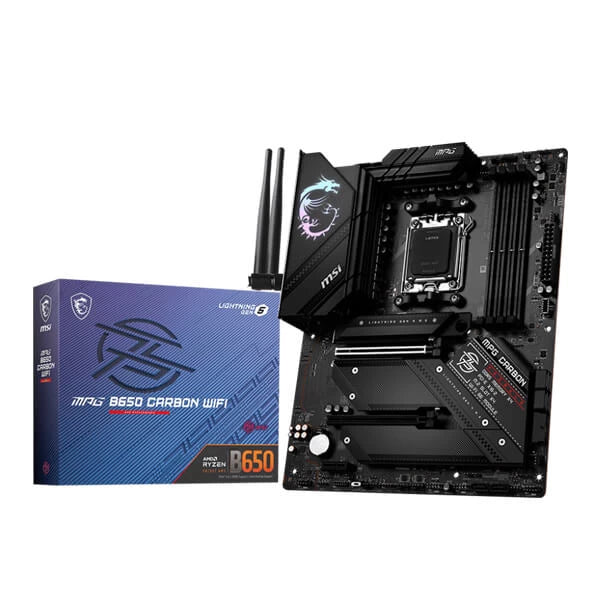

MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard

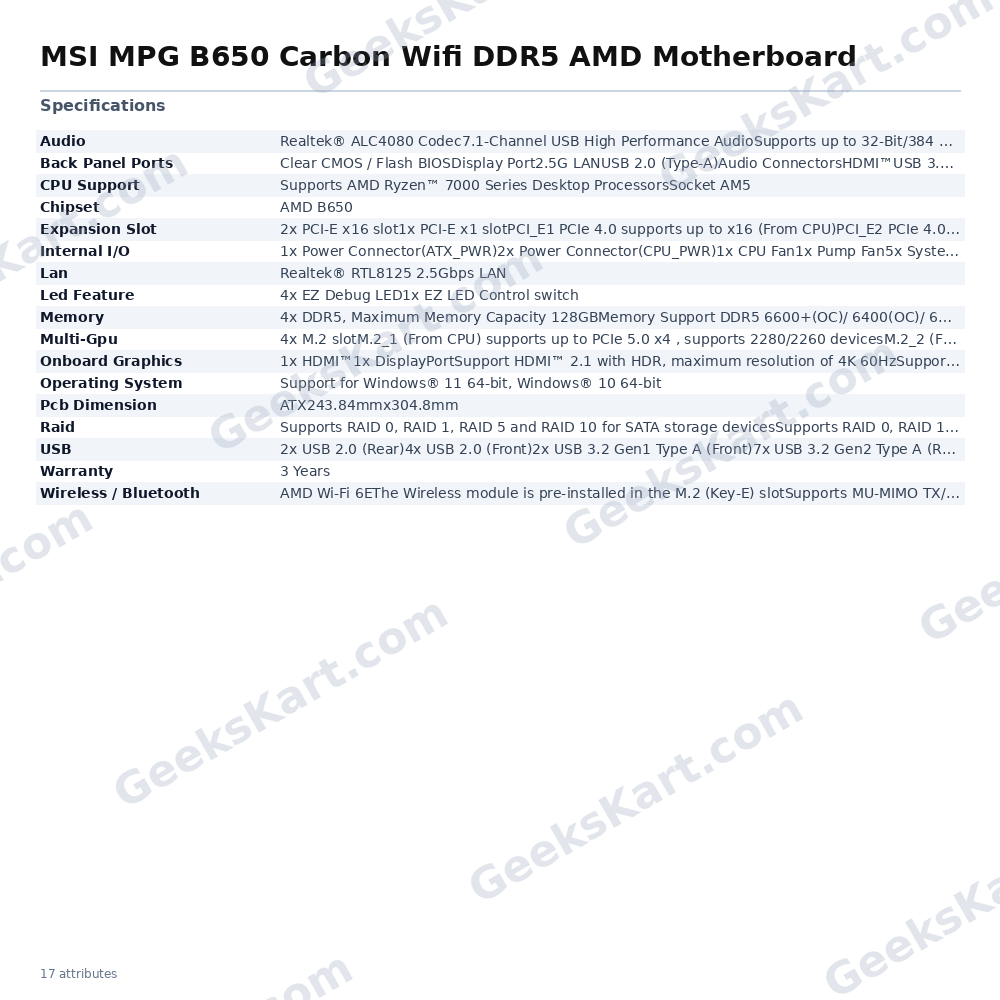

The MSI MPG B650 Carbon WiFi is a full-size ATX motherboard built for AMD Ryzen 7000 series processors on the AM5 socket. Engineered for performance-oriented builds, it combines a robust 16+2+1 Duet Rail Power System with dual 8-pin CPU power connectors and an extended heatsink featuring a heat-pipe design, ensuring sustained power delivery even during demanding workloads. Memory support spans four DDR5 slots capable of holding up to 128 GB in dual-channel configuration. Native JEDEC speed is 4800 MHz, while AMD EXPO profiles unlock overclocking up to 6600+ MHz in single-rank, single-dimm configurations — giving memory-sensitive applications a meaningful bandwidth advantage. Storage options are a genuine highlight. The primary M.2 slot (M.2_1, sourced directly from the CPU) supports PCIe 5.0 x4 at up to 128 Gbps, while three additional M.2 slots operate at PCIe 4.0 x4. Six SATA 6 Gbps ports round out the storage ecosystem, and all configurations support RAID 0, 1, 5, and 10 for both SATA and NVMe devices. Connectivity is comprehensive. The onboard AMD Wi-Fi 6E module covers the 2.4 GHz, 5 GHz, and 6 GHz bands with MU-MIMO TX/RX and 160 MHz channel support, while a Realtek RTL8125 controller handles wired 2.5 Gbps Ethernet. Bluetooth 5.2 is included. The rear panel delivers 7x USB 3.2 Gen 2 Type-A ports at 10 Gbps, one USB 3.2 Gen 2×2 Type-C at 20 Gbps, and 2x USB 2.0 ports — 17 USB connections total across front and rear. Audio is handled by a Realtek ALC4080 codec delivering 7.1-channel output with up to 32-bit/384 kHz playback. Display outputs include HDMI 2.1 (4K/60Hz with HDR) and DisplayPort 1.4 (up to 8K/60Hz) for integrated-graphics scenarios. The PCB is a 6-layer design using 2 oz thickened copper, and MSI’s Steel Armour reinforces PCIe slots against heavy GPU loads. RGB enthusiasts will find three ARGB Gen2 headers, one standard RGB header, and Mystic Light Sync integration for system-wide lighting coordination. Key Verified Specifications: • Chipset: AMD B650 • Socket: AM5 | Compatible CPUs: AMD Ryzen 7000 Series • Memory: 4x DDR5, max 128 GB, up to 6600+ MHz (OC), AMD EXPO supported • PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x4 (CPU), 1x PCIe 3.0 x1 (Chipset) • M.2 Slots: 1x PCIe 5.0 x4 (CPU), 3x PCIe 4.0 x4 • SATA: 6x 6 Gbps with RAID 0/1/5/10 • LAN: Realtek RTL8125 2.5 Gbps • Wireless: AMD Wi-Fi 6E (802.11ax), Bluetooth 5.2 • Audio: Realtek ALC4080, 7.1-channel, 32-bit/384 kHz • Rear USB: 7x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C, 2x USB 2.0 • Display: HDMI 2.1 + DisplayPort 1.4 • Power Design: 16+2+1 phases, dual 8-pin CPU connectors • Form Factor: ATX (243.84 mm × 304.8 mm) • OS Support: Windows 11 64-bit, Windows 10 64-bit • Warranty: 3 Years
