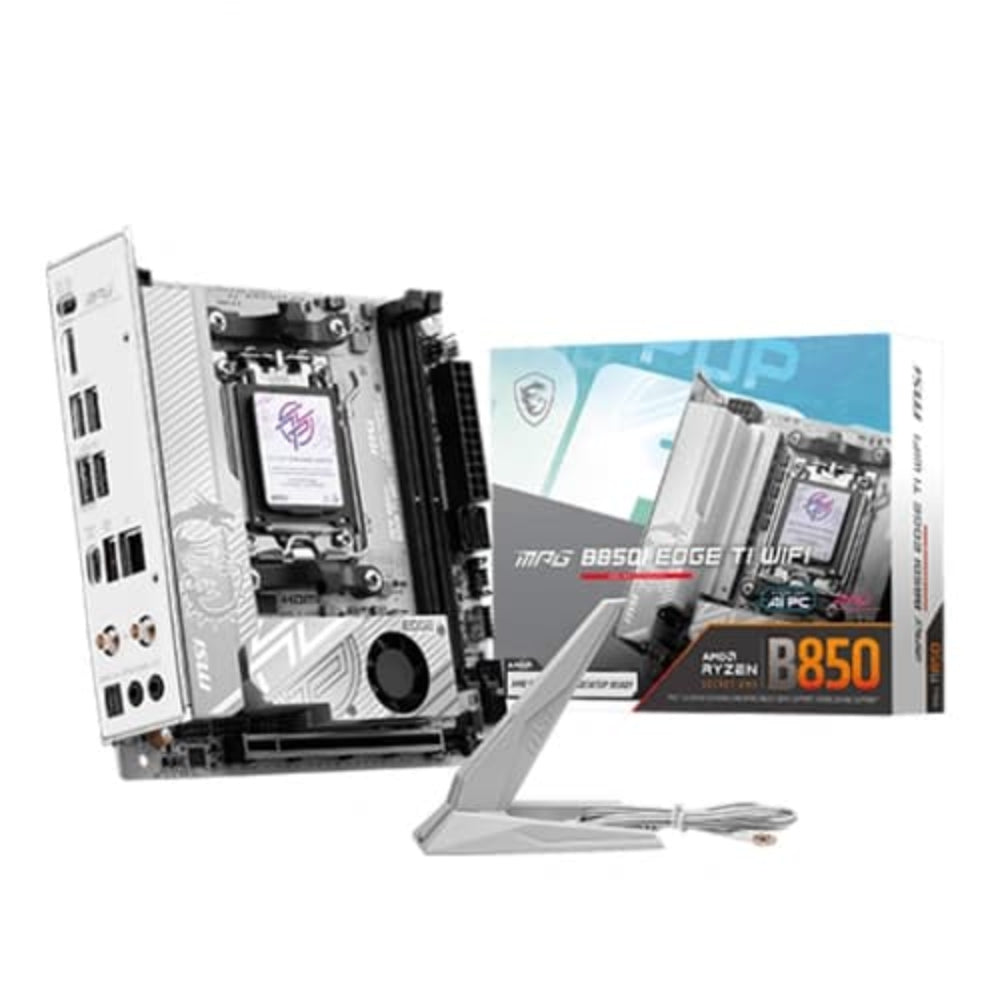

MSI MPG B850I Edge TI WIFI 7 DDR5 AMD Motherboard ( White )

The MSI MPG B850I Edge TI WIFI 7 in White is a Mini-ITX form-factor motherboard built on the AMD B850 chipset with an AM5 socket, making it compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 series desktop processors. Designed for compact, high-performance builds, it delivers flagship-grade features in a space-efficient package without compromising on connectivity or power delivery. At the heart of its power subsystem is a Direct 8+2+1 VRM configuration paired with dual power connectors and 90A Smart Power Stage components. The board uses a 10-layer PCB constructed with 2oz thickened copper and server-grade materials, providing stable power delivery even under sustained, demanding workloads. The Frozr Guard thermal solution features an enlarged heatsink with MOSFET thermal pads rated at 7W/mK, while the M.2 Shield Frozr keeps NVMe SSDs running cool under load. Memory support covers dual-channel DDR5 at up to 8200+ MT/s (OC), with a maximum capacity of 128GB. The board supports AMD EXPO memory profiles, JEDEC speeds, non-ECC unbuffered DIMMs, and CUDIMM in clock driver bypass mode. Connectivity is a standout strength. The single PCIe x16 slot runs at PCIe 5.0 x16 for Ryzen 9000 and 7000 series CPUs, and at PCIe 4.0 x8 or x4 for select Ryzen 8000 APUs. A Lightning Gen 5 M.2 slot is included for next-generation NVMe storage. Wireless networking is handled by a Wi-Fi 7 and Bluetooth 5.4 solution, complemented by a 5G wired LAN port on the rear panel. Rear I/O also includes USB 20Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, HDMI, optical S/PDIF out, a Flash BIOS button, and a Clear CMOS button. Internal headers include USB 10Gbps Type-C, two USB 5Gbps Type-A, two USB 2.0, an addressable RGB V2 header, and a TPM 2.0 pin header. Audio Boost 5 provides studio-grade onboard audio quality. The silver-white colour scheme is purpose-built for all-white PC aesthetics. Key Verified Specifications: - Socket: AM5 | Chipset: AMD B850 - CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 series - Form Factor: Mini-ITX - Memory: DDR5 Dual Channel, up to 128GB, up to 8200+ MT/s (OC) - Expansion: 1x PCIe 5.0 x16 slot (CPU-direct) - Storage: Lightning Gen 5 M.2 - Wireless: Wi-Fi 7, Bluetooth 5.4 - LAN: 5G wired - Rear USB: 20Gbps Type-C, 10Gbps Type-A (x2), 5Gbps Type-A - Graphics Output: 1x HDMI - Warranty: 3 Years
