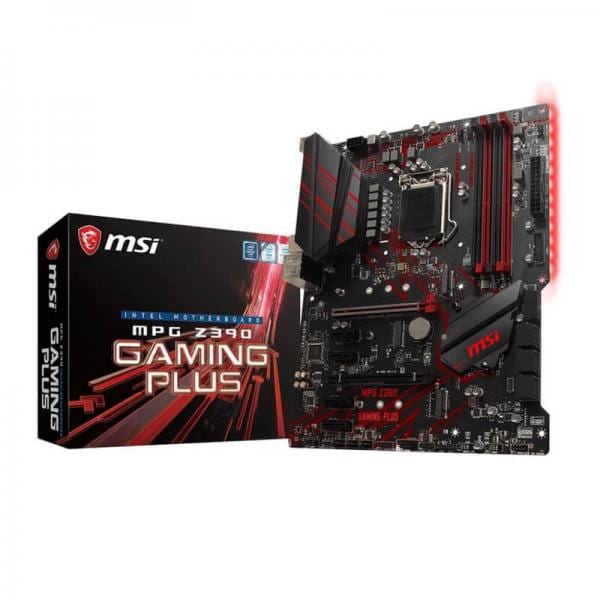

Feature of MSI MPG Z390 Gaming Plus
Satisfying gamers with what they really need, MPG Z390 GAMING PLUS is equipped with Extended Heatsink Design, Core boost, Twin Turbo M.2, Game Boost, Turbo USB and Intel CNVi connector and MSI latest Dragon Center APP
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
- Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
- Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user friendly user interface.
Specifications of MSI MPG Z390 Gaming Plus
| PROCESSOR | Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
| CHIPSET | Intel® Z390 Chipset |
| MEMORY | 4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Dual-Channel mode |
| SLOTS | 2 x PCIe 3.0 x16 slots 4 x PCIe 3.0 x1 slots 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only |
| ONBOARD GRAPHICS | 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz *No Display support when using the Processor model with suffix “F” |
| MULTI-GPU | Supports 2-Way AMD CrossFire™ Technology |
| STORAGE | Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready2M.2 slots and SATA ports share the bandwidth. Please refer user manual for details. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| RAID | Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices |
| USB | Intel® Z390 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)1 The CNVI_1 and JUSB2 share the same bandwidth. Please refer user manual for details. |
| AUDIO | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| INTERNAL CONNECTORS | 1 x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (2 M-Key slots,1 E-Key slot) 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 2x 4-pin RGB LED connectors 1x Serial Port connector 1x Clear CMOS jumper |
| BACK PANEL PORTS | PS/2 Combo Port LAN HD Audio Connectors USB 2.0 DVI-D HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 |
| DIMENSIONS | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
