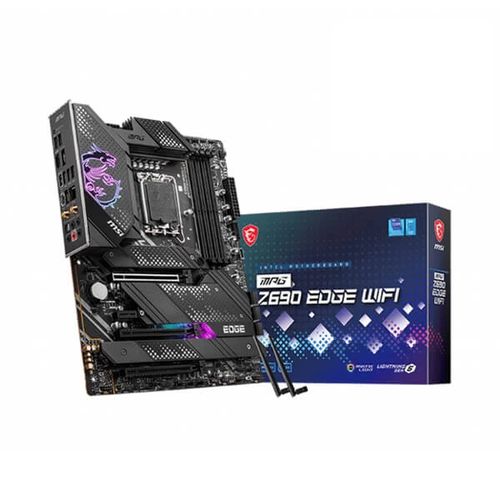

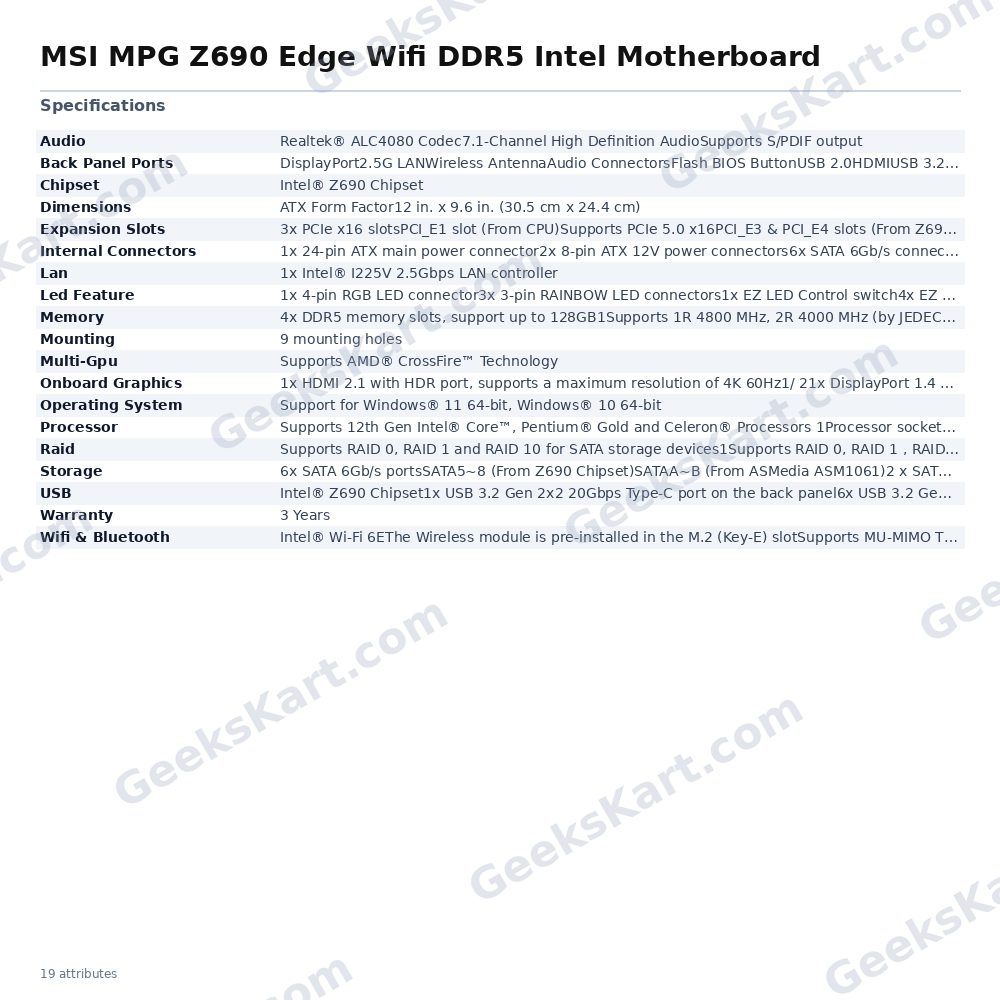

MSI MPG Z690 Edge Wifi DDR5 Intel Motherboard

The MSI MPG Z690 Edge WiFi DDR5 is a full-size ATX motherboard built around the Intel Z690 chipset and LGA1700 socket, designed to support 12th Generation Intel Core, Pentium Gold, and Celeron processors. It accepts up to four DDR5 memory modules across a dual-channel configuration, with a maximum supported capacity of 128 GB and overclocked speeds reaching 6400+ MHz on a single rank, single DIMM-per-channel arrangement — validated through MSI's OC Lab-tuned XMP profiles. Power delivery relies on a 16+1+1 direct phase VRM, with each of the 16 main phases rated at 75 A via Smart Power Stage components, backed by two 8-pin ATX 12V connectors. The VRM is cooled by aluminium heatsinks connected through a heat pipe, with MOSFET thermal pads rated at 7 W/mK and additional choke thermal pads to manage temperatures during sustained loads. The six-layer PCB uses 2 oz thickened copper and server-grade materials for improved signal integrity and stability. Storage expansion includes four M.2 Key-M slots — the primary M2_1 driven directly from the CPU at PCIe 4.0 x4, and M2_2 through M2_4 from the Z690 chipset also at PCIe 4.0 x4, with M2_3 and M2_4 additionally supporting SATA 6 Gb/s devices. Each M.2 slot is covered by MSI's M.2 Shield Frozr heatsink to reduce thermal throttling. Six SATA 6 Gb/s ports are available in total, four from the Z690 chipset and two from an ASMedia ASM1061 controller. NVMe RAID supports levels 0, 1, 5, and 10; SATA RAID supports levels 0, 1, and 10. Connectivity is led by Intel Wi-Fi 6E, supporting 2.4 GHz, 5 GHz, and 6 GHz bands (160 MHz channel width) with MU-MIMO TX/RX and throughput up to 2.4 Gbps, paired with Bluetooth 5.2. Wired networking uses an Intel I225V 2.5 Gbps LAN controller. Back-panel USB includes one USB 3.2 Gen 2x2 Type-C at 20 Gbps, five USB 3.2 Gen 2 Type-A at 10 Gbps, and two USB 2.0 Type-A ports. Additional internal headers support further USB 3.2 Gen 1 and USB 2.0 devices. Audio is handled by a Realtek ALC4080 codec delivering 7.1-channel high-definition audio with S/PDIF optical output under MSI's Audio Boost 5 implementation. Display output includes one HDMI 2.1 (4K 60 Hz with HDR) and one DisplayPort 1.4 (HBR3, 4K 60 Hz), active only when a processor with integrated graphics is installed. The primary PCIe x16 slot runs at PCIe 5.0 x16 directly from the CPU, with two additional x16-keyed slots from the chipset running at PCIe 3.0 x4, plus one PCIe 3.0 x1 slot. AMD CrossFire multi-GPU configurations are supported. RGB and ARGB ecosystem connectivity includes one 4-pin RGB header and three 3-pin ARGB (Rainbow) headers, all manageable through MSI's Mystic Light software supporting 16.8 million colour combinations. Fan control infrastructure spans one CPU fan header, one dedicated pump-fan header, and six system fan headers, all 4-pin PWM. A pre-installed I/O shield, Flash BIOS Button for no-CPU BIOS updates, and four EZ Debug LEDs simplify the installation and troubleshooting experience. Verified Specifications: - Form Factor: ATX — 12 in. x 9.6 in. (30.5 cm x 24.4 cm) - Socket: LGA1700 | Chipset: Intel Z690 - CPU Support: 12th Gen Intel Core, Pentium Gold, Celeron - Memory: 4x DDR5 slots, max 128 GB, up to 6400+ MHz (OC, 1DPC 1R) - Primary PCIe: PCIe 5.0 x16 (CPU) - M.2 Slots: 4x (PCIe 4.0 x4 each; M2_3 & M2_4 also SATA) - SATA: 6x SATA 6 Gb/s - VRM: 16+1+1 phases, 75 A SPS per main phase, dual 8-pin EPS - LAN: Intel I225V 2.5 Gbps - Wireless: Intel Wi-Fi 6E (802.11ax, up to 2.4 Gbps) + Bluetooth 5.2 - Audio: Realtek ALC4080, 7.1-channel HD Audio, S/PDIF out - USB (rear): 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 5x USB 3.2 Gen 2 Type-A (10 Gbps), 2x USB 2.0 - Display Out: 1x HDMI 2.1, 1x DisplayPort 1.4 (iGPU required) - Warranty: 3 Years
