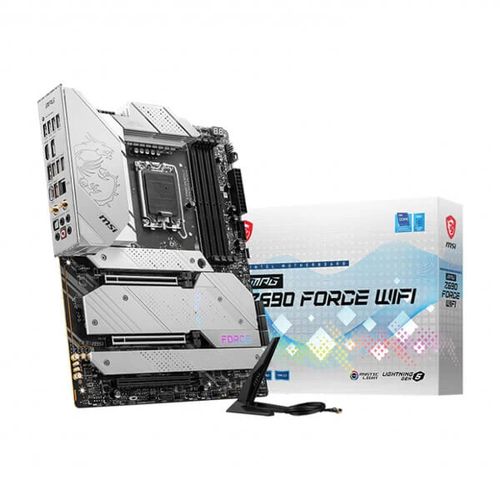

MSI MPG Z690 Force Wifi DDR5 Intel Motherboard

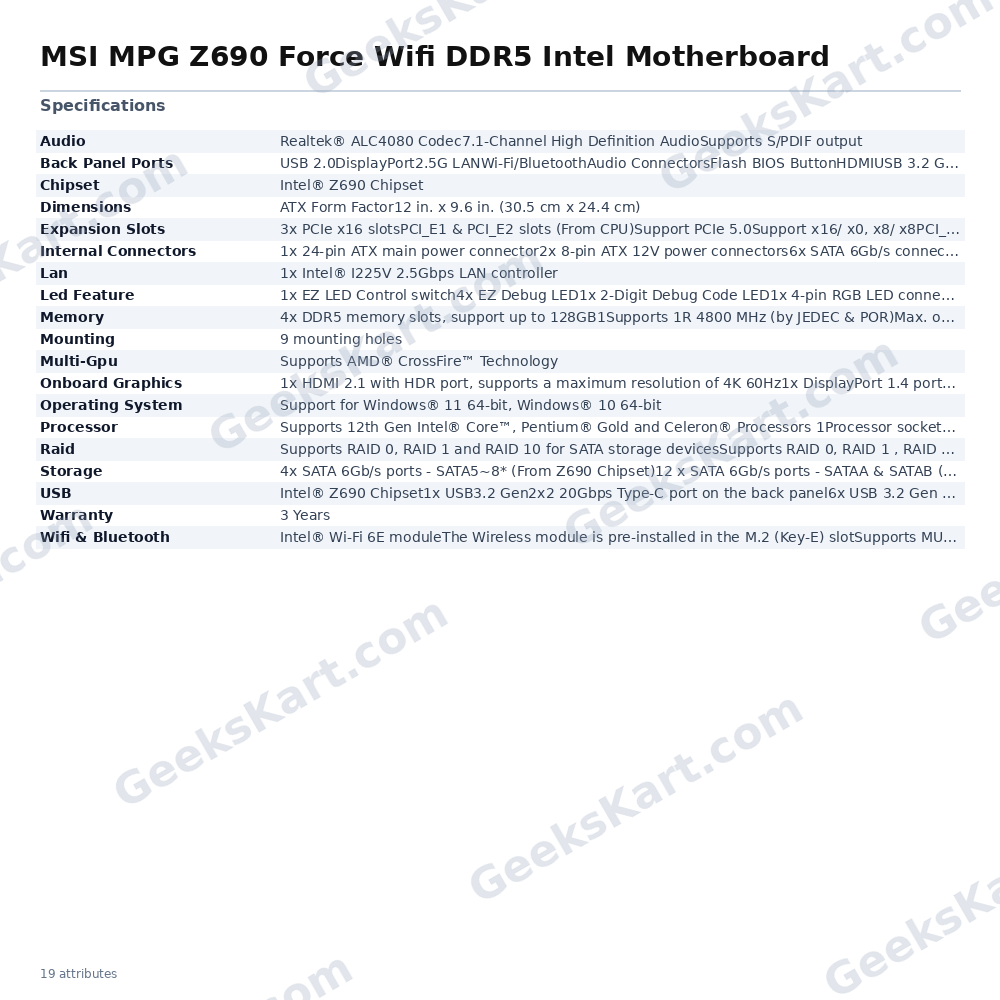

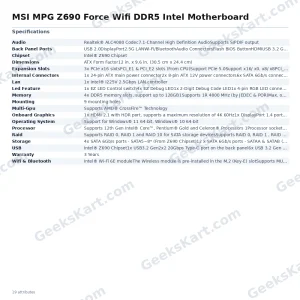

The MSI MPG Z690 Force WiFi DDR5 is an ATX-form-factor motherboard built around Intel's Z690 chipset, designed to support 12th Generation Intel Core, Pentium Gold, and Celeron processors installed in the LGA1700 socket. It represents a strong platform for enthusiast and gaming system builders who want to pair a current-generation Intel processor with DDR5 memory and high-bandwidth PCIe 5.0 expansion. Memory capacity and speed flexibility are notable strengths of this board. Four DDR5 DIMM slots accommodate up to 128 GB of non-ECC, unbuffered memory. JEDEC baseline speed is 4800 MHz, while XMP 3.0 overclocking profiles can push single-rank, single-DIMM-per-channel configurations beyond 6666 MHz. Dual-channel operation is supported through MSI's Dual Controller Dual-Channel architecture. Expansion connectivity is well-provisioned. Two CPU-connected PCIe x16 slots operate at PCIe 5.0 speeds, supporting x16/x0 or x8/x8 GPU configurations, while a third chipset-connected slot runs PCIe 3.0 x4. Five M.2 Key-M slots are available for NVMe and SATA solid-state storage — the first four support PCIe 4.0 x4, while the fifth supports both PCIe 3.0 x4 and SATA 6Gb/s. Six SATA 6Gb/s ports (four from the chipset, two from an ASMedia ASM1061 controller) are also present. The power delivery system uses a direct 18+1+1 phase design with dual 8-pin ATX 12V connectors, complemented by an enlarged heatsink with heat-pipe and MOSFET thermal pads rated at 7 W/mK, helping maintain stable temperatures under sustained load. Networking is handled by an Intel I225V 2.5 Gbps wired LAN controller and a pre-installed Intel Wi-Fi 6E module (802.11ax, 2.4/5/6 GHz, up to 2.4 Gbps, MU-MIMO TX/RX) with Bluetooth 5.2. Audio is delivered via a Realtek ALC4080 codec with 7.1-channel HD output and optical S/PDIF. RGB lighting is controlled through MSI Mystic Light, with one 4-pin RGB header, two 3-pin ARGB headers, and one dedicated Corsair LED connector on board. Four EZ Debug LEDs and a 2-digit debug code display assist with troubleshooting during POST. — Verified Specifications — Socket: LGA1700 | Chipset: Intel Z690 | Form Factor: ATX, 30.5 cm × 24.4 cm | Memory: 4× DDR5, max 128 GB, up to 6666+ MHz (OC) | PCIe: 2× PCIe 5.0 x16 (CPU), 1× PCIe 3.0 x4 (chipset) | Storage: 5× M.2 (PCIe 4.0/3.0 x4 + SATA), 6× SATA 6Gb/s | USB (rear): 1× USB 3.2 Gen 2×2 20 Gbps Type-C, 5× USB 3.2 Gen 2 10 Gbps Type-A, 4× USB 2.0 | Display Out: HDMI 2.1 (4K 60Hz), DisplayPort 1.4 HBR3 (4K 60Hz) | LAN: Intel I225V 2.5 Gbps | WiFi: Intel Wi-Fi 6E (AX), Bluetooth 5.2 | Audio: Realtek ALC4080, 7.1 HD | Warranty: 3 years | OS: Windows 11 / Windows 10 (64-bit)
