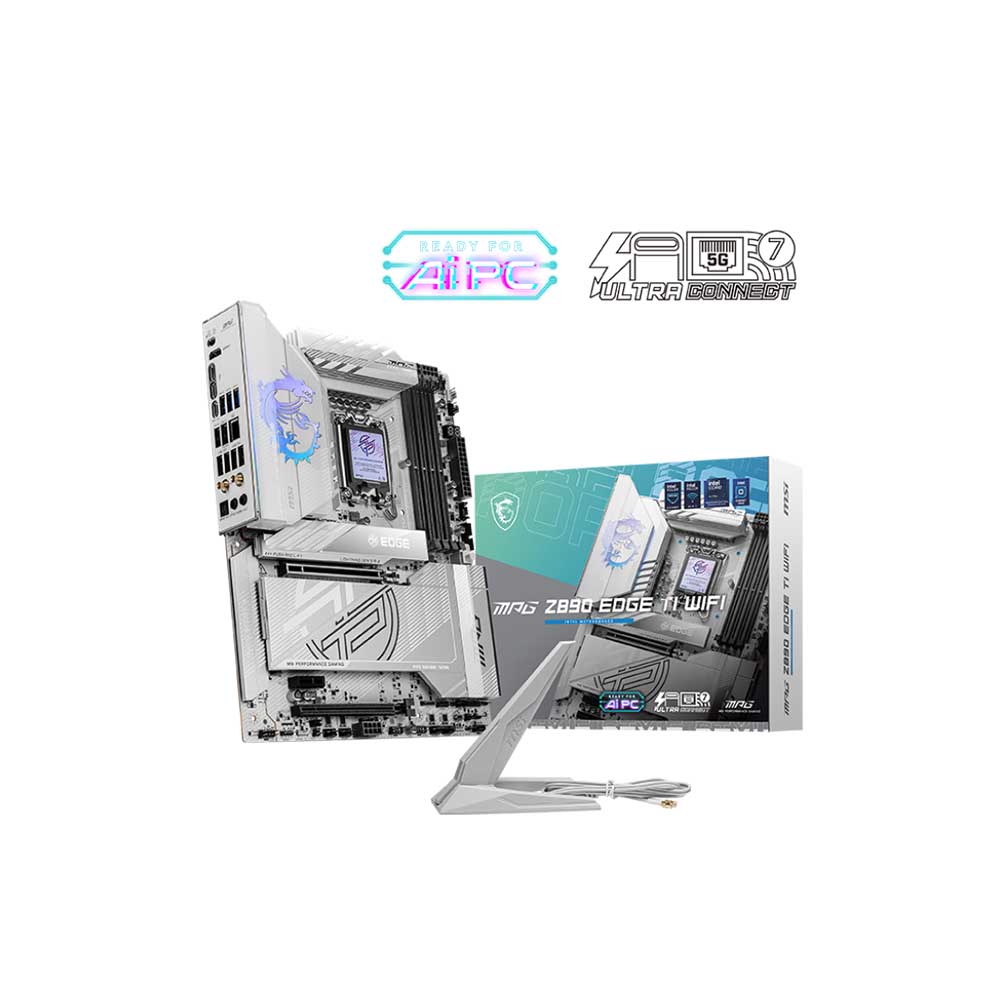

MSI MPG Z890 Edge TI WiFi LGA1851 ATX Motherboard

The MSI MPG Z890 Edge TI WiFi is a full-size ATX motherboard built around the Intel Z890 chipset and LGA1851 socket, designed to support Intel Core Ultra Series 2 processors. It arrives with a robust 16+1+1+1 Duet Rail Power System paired with dual 8-pin CPU power connectors, underpinned by an 8-layer PCB constructed from 2oz thickened copper and server-grade materials — a configuration intended to sustain sustained high-load workloads without voltage instability. Memory support centres on DDR5 in dual-channel configuration, with speeds reaching up to 9200+ MT/s under overclocking via Intel XMP 3.0. The board accommodates non-ECC unbuffered DIMMs as well as CUDIMM modules, with a maximum supported capacity of 256 GB across its memory slots. For storage and expansion, the primary PCIe x16 slot (PCI_E1) runs at PCIe 5.0 bandwidth sourced directly from the CPU, while additional slots operate at PCIe 4.0 via the chipset. An onboard Lightning Gen 5 M.2 connector delivers next-generation NVMe storage performance, and MSI's EZ M.2 Shield Frozr II and EZ M.2 Clip II simplify drive installation without tools. Thermal management is handled by the Frozr Guard system: an enlarged heatsink with integrated heat-pipe, MOSFET thermal pads rated at 7W/mk, additional choke thermal pads, and M.2 Shield Frozr coverage. Six system fan headers plus a dedicated CPU fan and combo pump/system fan header give builders extensive cooling control. Connectivity is a clear strength. The board integrates Intel Killer 5G LAN alongside Wi-Fi 7 and Bluetooth 5.4 for wireless, and Thunderbolt 4 on both the rear panel and an internal Thunderbolt 5 card connector (JTBT5 with RTD3 support). The rear I/O also includes USB 10Gbps Type-A and Type-C ports, USB 5Gbps Type-A, USB 2.0, HDMI, dual Type-C DisplayPort outputs, Optical S/PDIF out, a Clear CMOS button, and a Flash BIOS button. Internally, headers cover four USB 2.0 ports, two USB 5Gbps Type-A ports, and one USB 20Gbps Type-C port. Audio Boost 4 delivers dedicated audio circuitry for high-fidelity playback, and the board supports three Addressable V2 RGB LED connectors (JARGB_V2) plus one standard RGB LED connector (JRGB), enabling full RGB ecosystem integration. EZ PCIe Release and EZ Antenna further reduce installation friction. Key Verified Specifications: - Socket: LGA 1851 - Chipset: Intel Z890 - Compatible CPUs: Intel Core Ultra Series 2 - Form Factor: ATX - Memory Type: DDR5, Dual Channel - Max Memory: 256 GB - Memory Speed (OC): Up to 9200+ MT/s - Memory Standards: XMP 3.0, JEDEC, CUDIMM, Non-ECC Unbuffered - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 1x PCIe 4.0 x1 (Chipset) - M.2: Lightning Gen 5 M.2 (confirmed from source) - Wireless: Wi-Fi 7, Bluetooth 5.4 - LAN: Intel Killer 5G - Thunderbolt: Thunderbolt 4 (rear panel); Thunderbolt 5 card connector (internal) - Graphics Outputs: 1x HDMI, 2x Type-C DisplayPort - Power Delivery: 16+1+1+1 Duet Rail, dual 8-pin CPU connectors - PCB: 8-layer, 2oz copper - MOSFET Thermal Pads: 7W/mk rated - Warranty: 3 Years - Color: White - GTIN: 4711377260800
