MSI Pro H510M-B DDR4 Intel Motherboard

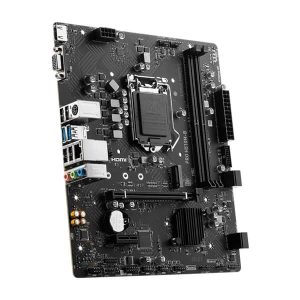

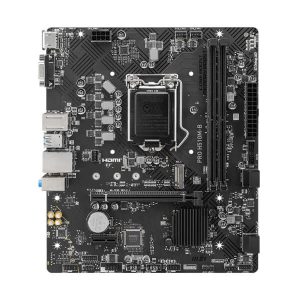

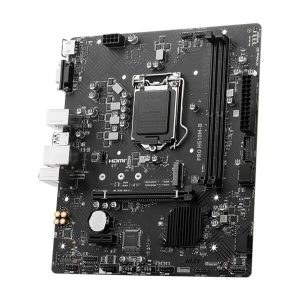

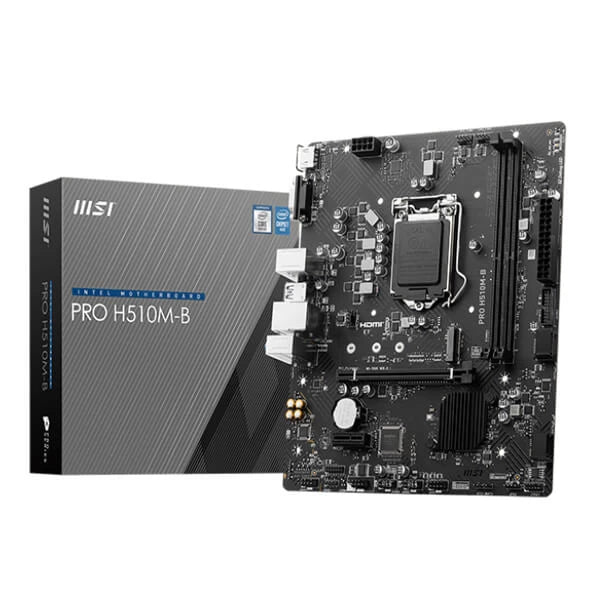

The MSI Pro H510M-B is a Micro-ATX motherboard built on the Intel H510 chipset and designed for the LGA 1200 socket, making it compatible with 10th Generation Intel Core, Pentium Gold, and Celeron processors. Its compact 202 mm x 236 mm footprint fits standard mATX chassis while delivering a capable feature set for home, office, and entry-level builds. Memory support spans two DDR4 DIMM slots with a maximum capacity of 64 GB. Core i9 and Core i7 processors can run memory at up to 2933 MHz in single-rank configurations, while Core i5, Core i3, Pentium Gold, and Celeron processors support up to 2666 MHz. Dual-channel mode is available, and the board is compatible with Intel Extreme Memory Profile (XMP) for straightforward memory tuning. Only non-ECC, unbuffered modules are supported. Storage options include one M.2 slot (chipset-sourced, PCIe 3.0 x4 or SATA mode, supporting 2280/2260/2242 form factors) alongside four SATA 6 Gb/s ports, giving builders flexibility to combine an NVMe or SATA SSD with traditional hard drives. Expansion is handled by one PCIe 3.0 x16 slot (from CPU) and one PCIe 3.0 x1 slot (from chipset). Display output is provided through one HDMI 1.4 port (up to 4K at 30 Hz) and one VGA port (up to 2048×1536 at 50 Hz or 1920×1200 at 60 Hz) for use with integrated graphics. Connectivity includes a Realtek 8111H Gigabit LAN controller and a comprehensive USB layout: four USB 2.0 and two USB 3.2 Gen 1 Type-A ports on the rear panel, plus four USB 2.0 and two USB 3.2 Gen 1 headers for front-panel connections. Audio is handled by a Realtek ALC897 codec delivering 7.1-channel High Definition Audio. An JRGB header enables addressable RGB lighting, and four EZ Debug LEDs simplify troubleshooting during POST. Internal I/O headers include ATX and CPU power connectors, one CPU fan header, two system fan headers, a front-panel audio header, a chassis intrusion header, a COM port, and a TPM 2.0 pin header. The board supports Windows 11 64-bit and Windows 10 64-bit and carries a 3-year manufacturer warranty. Verified Specifications: - Model: PRO H510M-B - Chipset: Intel H510 - Socket: LGA 1200 - Form Factor: mATX (202 mm x 236 mm) - Memory: 2x DDR4 DIMM, max 64 GB, up to 2933 MHz (XMP), Dual-Channel - Storage: 1x M.2 (PCIe 3.0 x4 / SATA, 2280/2260/2242) + 4x SATA 6G - Expansion: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 - Display: 1x HDMI 1.4 (4K@30Hz), 1x VGA - USB (Rear): 4x USB 2.0, 2x USB 3.2 Gen 1 Type-A - LAN: Realtek 8111H Gigabit - Audio: Realtek ALC897, 7.1-ch HD Audio - OS Support: Windows 11 / Windows 10 (64-bit) - Warranty: 3 Years
