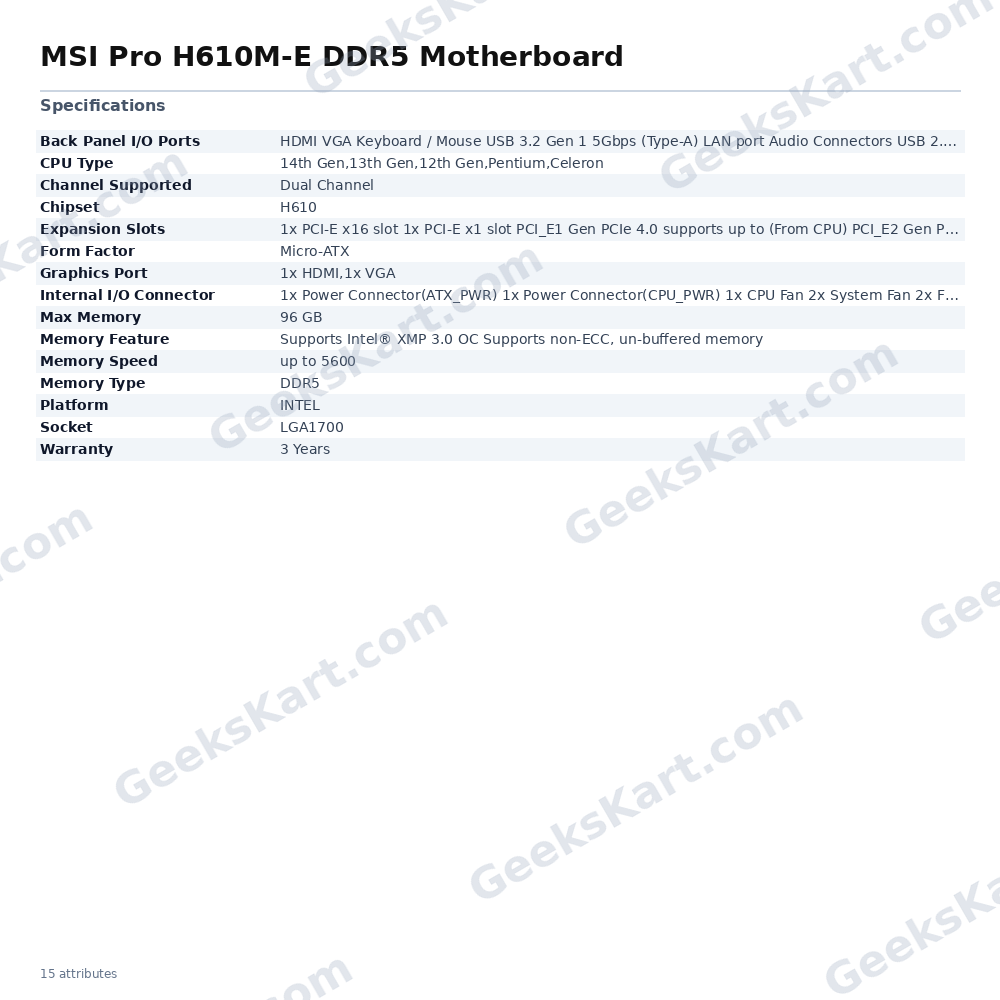

MSI Pro H610M-E DDR5 Motherboard

The MSI Pro H610M-E is a Micro-ATX motherboard built on Intel's H610 chipset and designed for the LGA1700 socket. It supports Intel Core 12th, 13th, and 14th generation processors as well as Intel Pentium Gold and Celeron processors, making it a versatile foundation for both entry-level office builds and cost-conscious home desktops. Memory support centres on DDR5, with dual-channel capacity stretching up to 96 GB and a maximum rated speed of 5600 MHz. The board also supports Intel XMP 3.0 profiles for straightforward memory overclocking, and accepts only non-ECC, unbuffered DIMMs in keeping with the H610 platform's specification. For graphics, the primary x16 PCIe slot operates at PCIe 4.0 speeds drawing lanes directly from the CPU, providing ample bandwidth for a dedicated graphics card. A secondary PCIe x1 slot runs at PCIe 3.0 via the chipset for add-in cards such as sound or networking adapters. MSI's Steel Armor reinforcement on the primary slot helps protect heavier graphics cards from physical stress. Display output is handled natively through a rear HDMI port and a VGA port, useful for builds that rely on the processor's integrated graphics. Rear connectivity further includes USB 3.2 Gen 1 (5 Gbps) Type-A ports, two USB 2.0 ports, a Gigabit LAN port, and audio connectors. Internally the board provides four USB 2.0 headers, two USB 5 Gbps (Type-A) headers, one CPU fan header, two system fan headers, a front audio header, an RGB LED connector (JRGB), a chassis intrusion header, a COM port header, and a TPM 2.0 pin header. MSI's Audio Boost circuitry delivers dedicated audio capacitors and an isolated audio PCB layer for cleaner sound. The board ships with a 3-year manufacturer warranty. Verifiable Specifications: - Chipset: Intel H610 - Socket: LGA1700 - Form Factor: Micro-ATX - Supported CPUs: Intel 12th / 13th / 14th Gen Core; Pentium Gold; Celeron - Memory Type: DDR5, non-ECC unbuffered, Dual Channel - Max Memory: 96 GB - Max Memory Speed: 5600 MHz (XMP 3.0 supported) - PCIe Slots: 1× PCIe 4.0 x16 (CPU); 1× PCIe 3.0 x1 (Chipset) - Display Outputs: 1× HDMI, 1× VGA - Rear USB: USB 3.2 Gen 1 5Gbps (Type-A), 2× USB 2.0 - LAN: Gigabit Ethernet (RTL8111H noted in source metadata) - Internal Headers: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× JRGB, 1× TPM 2.0, 1× COM - Warranty: 3 Years
