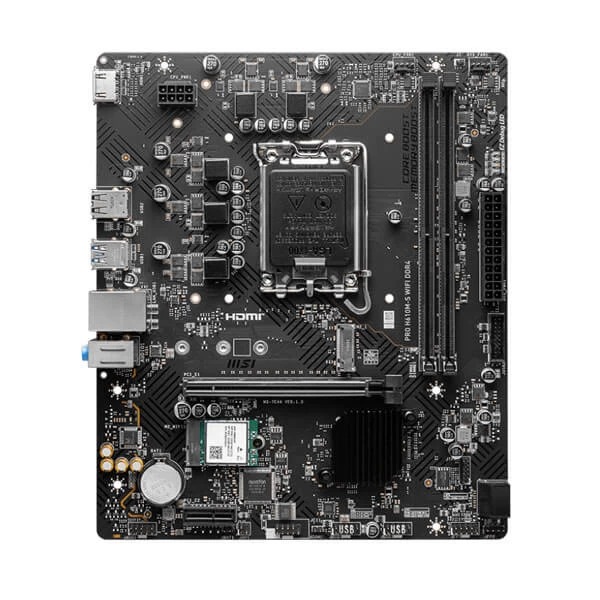

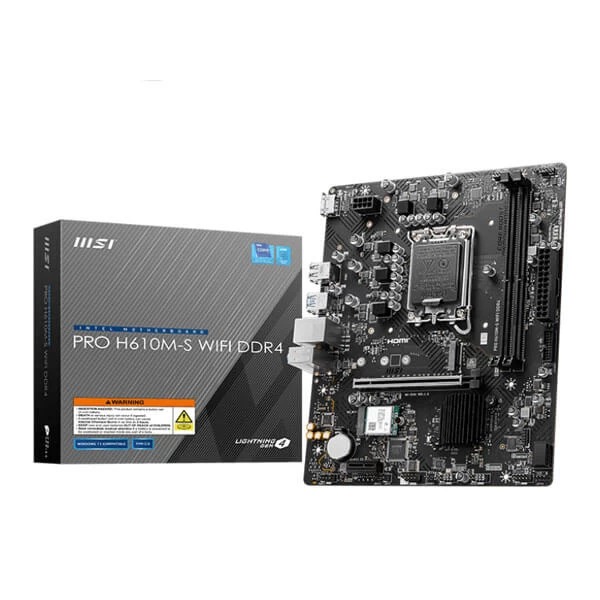

MSI PRO H610M-S WIFI DDR4 Motherboard
MPN PRO-H610M-S-WIFI-DDR4 · Brand Kingst · mATX
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR4 Mem
Inclusive of GST · GST invoice available
Overview
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Mem
Datasheet
| Memory Speed | up to 3200 |
|---|---|
| Platform | INTEL |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Graphics Port | 1x HDMI |
| Memory Feature | Supports non-ECC, un-buffered memory |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Channel Supported | Dual Channel |

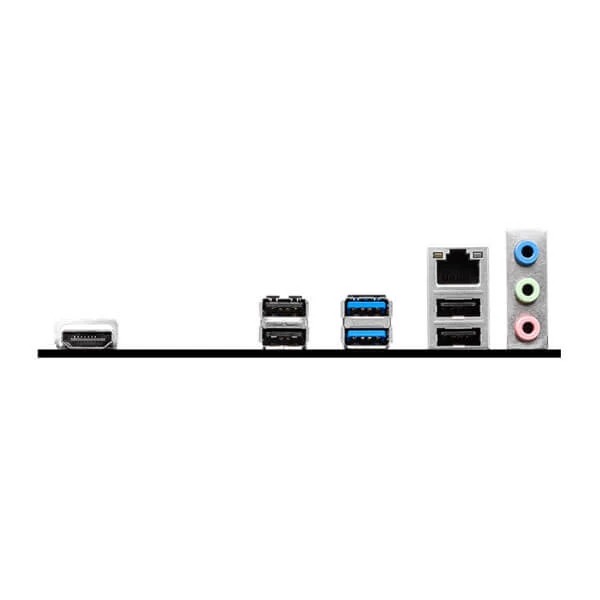

| Back Panel I/O Ports | HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 LAN port Audio Connectors USB 2.0 |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | H610 |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen,Pentium,Celeron |
| Max Memory | 64 GB |
