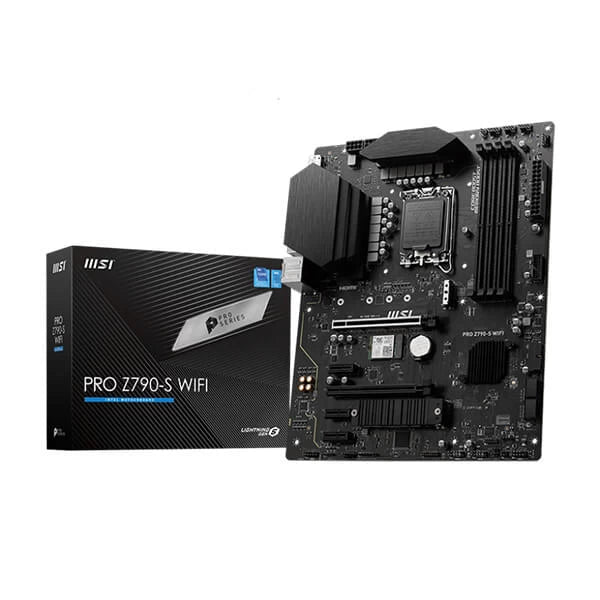

MSI Pro Z790-S Wifi DDR5 Intel Motherboard
MPN MSI-PRO-Z790-S-WIFI-MOTHERBOARD · Brand MSI
The MSI PRO Z790-S WIFI is an ATX motherboard for Intel LGA 1700 CPUs (12th–14th Gen) featuring DDR5 support up to 192 GB at 6600+ MHz, PCIe 5.0 x16, Intel Wi-Fi 6E, 2.5G LAN, and dual M.2 PCIe 4.0 slots
Inclusive of GST · GST invoice available
Overview

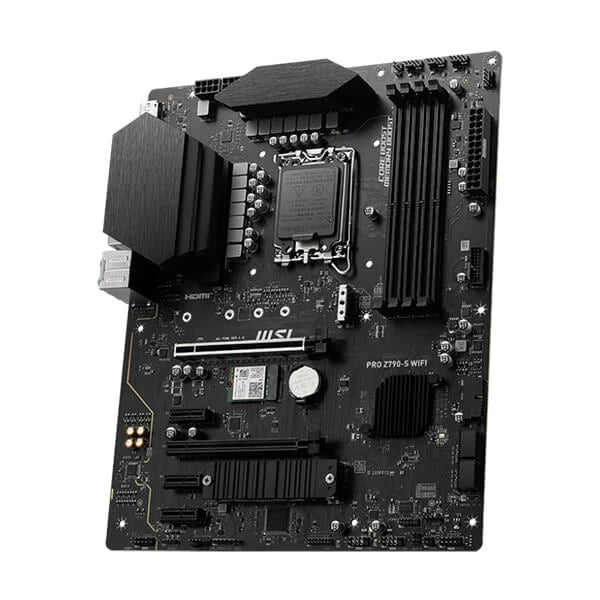

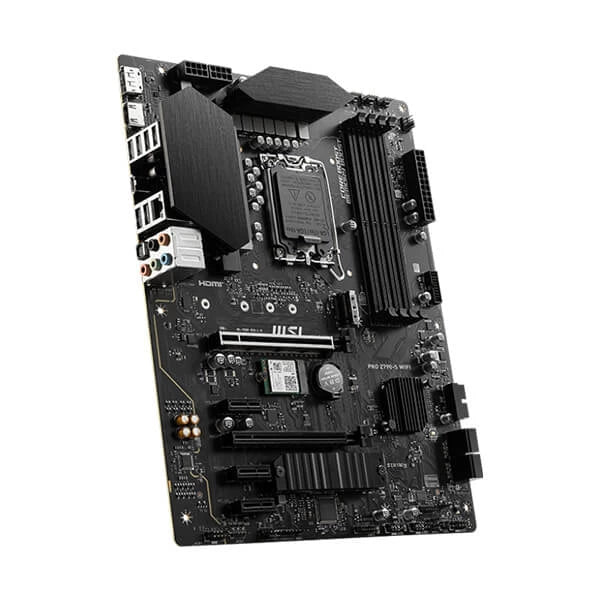

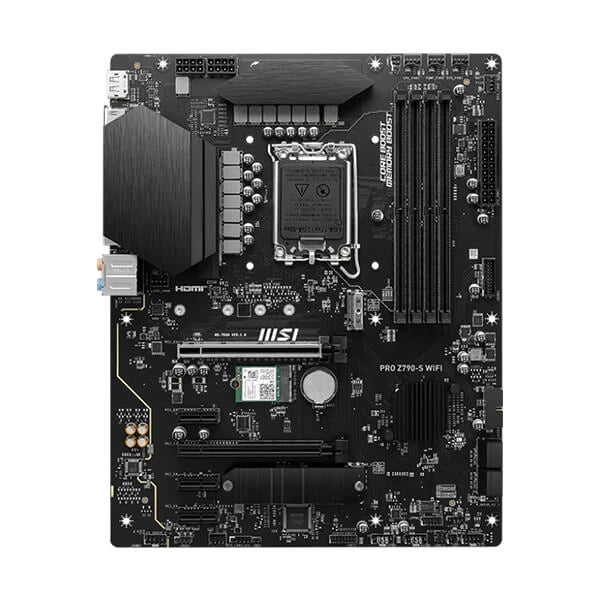

The MSI PRO Z790-S WIFI is a full-size ATX motherboard (243.84 mm × 304.8 mm) built on Intel's Z790 chipset and designed for the LGA 1700 socket. It supports Intel Core 12th, 13th, and 14th Generation processors, as well as Pentium Gold and Celeron processors in the same socket family, making it a versatile platform for productivity, content creation, and gaming builds alike. Memory performance is a standout capability. Four DDR5 DIMM slots accept up to 192 GB of non-ECC, unbuffered DDR5 RAM. Base JEDEC speeds start at 4800 MHz and run through 5600 MHz, while XMP 3.0 profiles push single-rank configurations to 6600+ MHz. The board's 12+1+1 Duet Rail Power System with P-PAK MOSFETs and dual 8-pin CPU power connectors provides the stable delivery needed for overclocking headroom. Thermal management relies on an extended heatsink assembly with MOSFET thermal pads rated at 7 W/mK, supplementary choke thermal pads, and M.2 Shield Frozr covers over both M.2 slots. The 6-layer PCB uses 2 oz copper traces and server-grade substrate for signal integrity under sustained loads. Storage options include two M.2 slots — M.2_1 (CPU-direct, PCIe 4.0 x4, up to 110 mm) and M.2_2 (chipset, PCIe 4.0 x4 or SATA) — plus four SATA 6 Gb/s ports supporting RAID 0, 1, 5, and 10. The primary PCIe x16 slot runs at Gen 5.0 from the CPU, enabling next-generation GPU or add-in card bandwidth. Connectivity is comprehensive. Wired networking is handled by a Realtek RTL8125BG 2.5 Gbps controller, while wireless is provided by an Intel Wi-Fi 6E module (802.11ax, 2.4/5/6 GHz, 160 MHz, up to 2.4 Gbps) with Bluetooth 5.3. The rear panel includes one USB 3.2 Gen 2×2 Type-C port (20 Gbps), four USB 3.2 Gen 1 Type-A ports (5 Gbps), and two USB 2.0 ports, along with HDMI 1.4 (4K@30Hz) and DisplayPort 1.4 (4K@60Hz) outputs for systems with integrated graphics. Audio is managed by a Realtek ALC897 codec delivering 7.1-channel HD audio with S/PDIF optical output. Internal headers include an RGB LED connector (JRGB), a Thunderbolt header (JTBT with RTD3 support), TPM 2.0 pin header, chassis intrusion connector, and fan headers for one CPU fan, one pump, and four system fans. Verifiable Specifications: Chipset: Intel Z790 | Socket: LGA 1700 | Form Factor: ATX, 243.84 × 304.8 mm | Memory: 4× DDR5, max 192 GB, up to 6600+ MHz (XMP 3.0 OC) | Primary PCIe: x16 Gen 5.0 (CPU) | M.2: 2× PCIe 4.0 x4 | SATA: 4× 6 Gb/s | LAN: Realtek 2.5 Gbps | Wi-Fi: Intel Wi-Fi 6E (2.4 Gbps) | Bluetooth: 5.3 | Audio: Realtek ALC897, 7.1-CH HD | USB Rear: 1× Gen 2×2 Type-C, 4× Gen 1 Type-A, 2× USB 2.0 | Display: HDMI 1.4 + DP 1.4 | Warranty: 3 Years

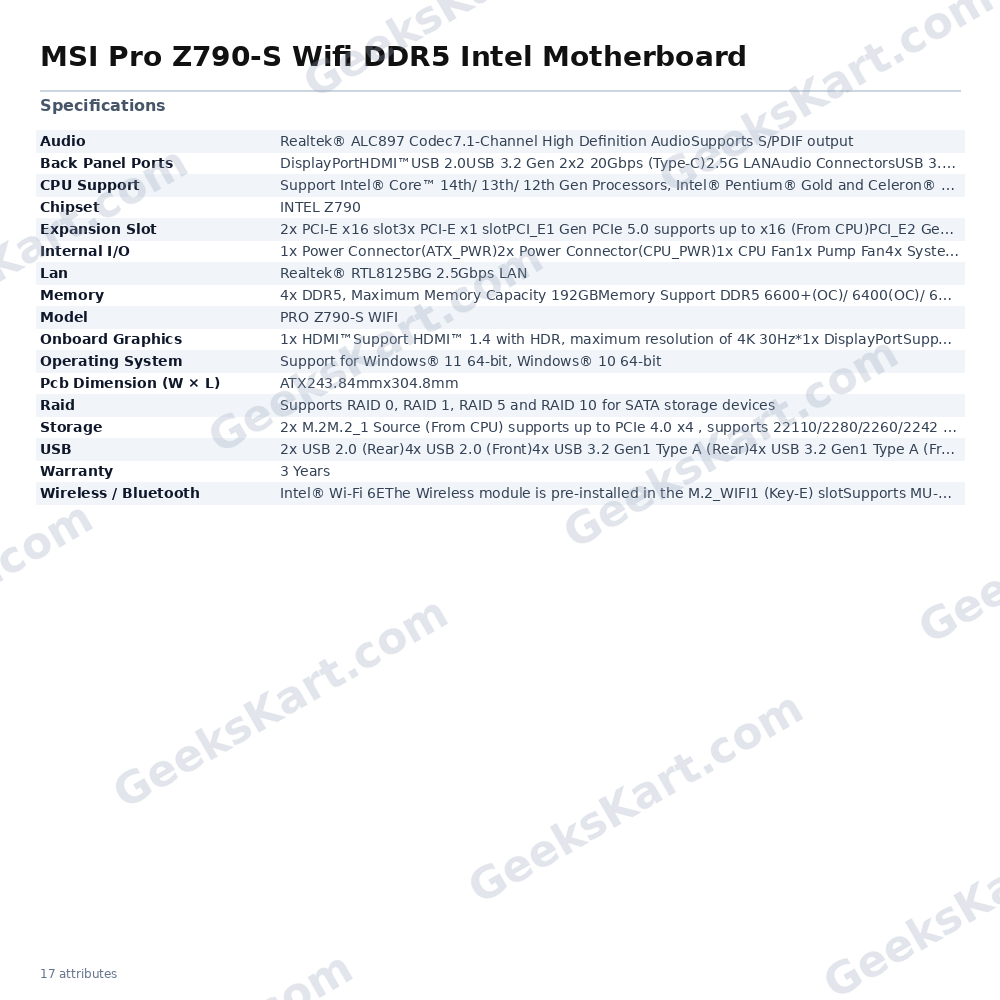

Datasheet
| Warranty | 3 Years |
|---|---|
| Chipset | INTEL Z790 |
| Lan | Realtek® RTL8125BG 2.5Gbps LAN |
| USB | 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2x2 Type C (Rear) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition AudioSupports S/PDIF output |
| Model | PRO Z790-S WIFI |
| Memory | 4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6600+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
| Storage | 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G |
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700 |
| Internal I/O | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports |
| Expansion Slot | 2x PCI-E x16 slot3x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |

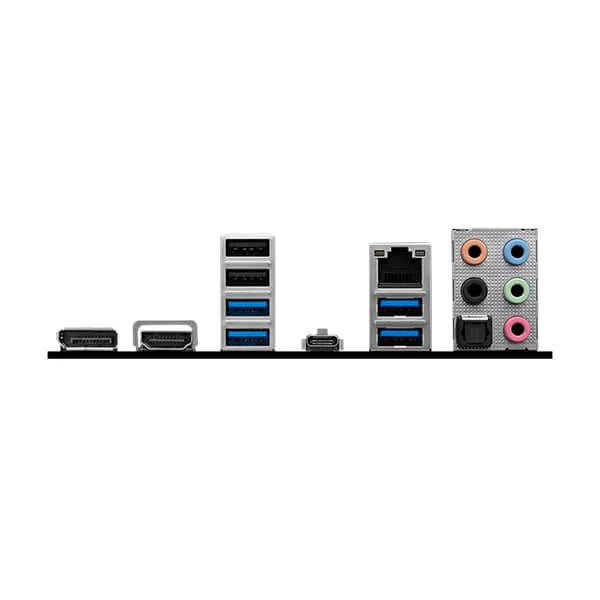

| Back Panel Ports | DisplayPortHDMI™USB 2.0USB 3.2 Gen 2×2 20Gbps (Type-C)2.5G LANAudio ConnectorsUSB 3.2 Gen 1 5Gbps (Type-A)USB 3.2 Gen 1 5Gbps (Type-A)S/PDIF-OUT |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Onboard Graphics | 1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed |
| Wireless / Bluetooth | Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11 |
| Pcb Dimension (W × L) | ATX243.84mmx304.8mm |
