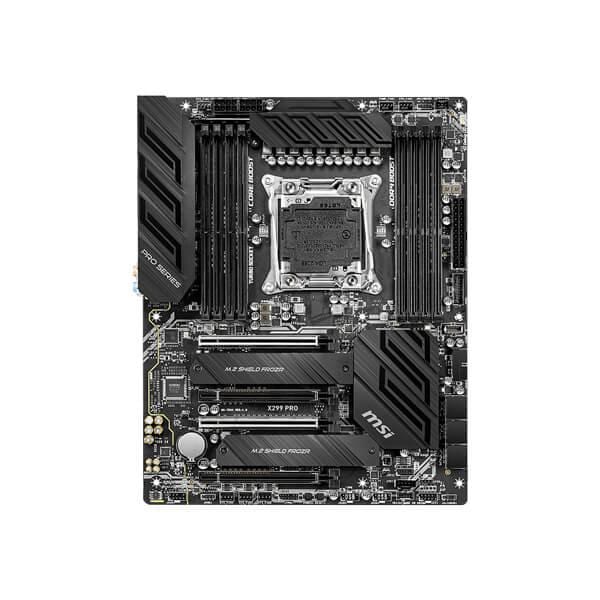

MSI X299 Pro DDR4 Intel Motherboard

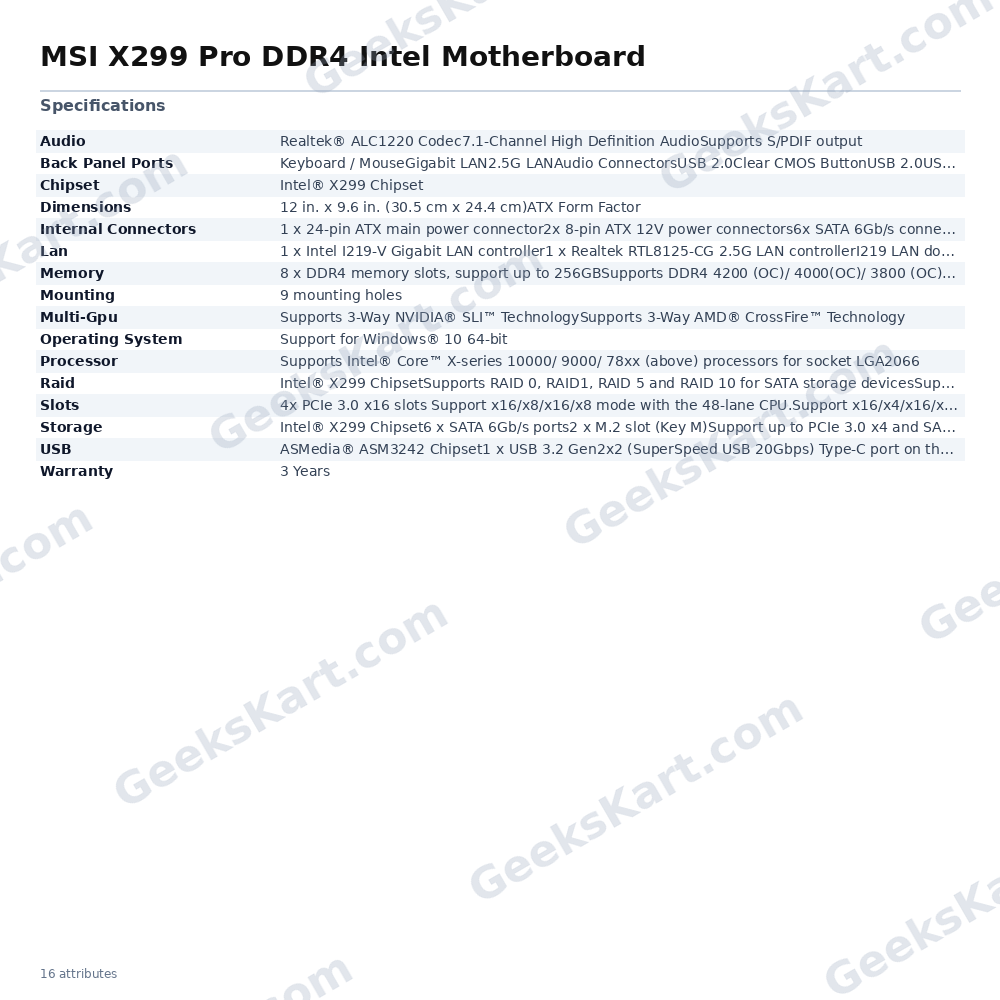

The MSI X299 Pro is an ATX-form-factor motherboard built on the Intel X299 chipset, designed for Intel Core X-series processors in the LGA2066 socket — including the 10000-series, 9000-series, and 78xx-series (and above). Its eight DDR4 DIMM slots support a quad-channel memory architecture with a maximum capacity of 256 GB. Memory speeds range from native DDR4-2133 up to DDR4-4200 via overclocking, and the board is compatible with Intel Extreme Memory Profile (XMP) for simplified performance tuning. Non-ECC, unbuffered DIMMs are supported. For expansion, the board provides four PCIe 3.0 x16 slots. Bandwidth allocation scales with CPU lane count: 48-lane CPUs operate at x16/x8/x16/x8, 44-lane CPUs at x16/x4/x16/x8, and 28-lane CPUs at x16/x4/x8/x0. Multi-GPU configurations are supported up to 3-Way NVIDIA SLI and 3-Way AMD CrossFire using Steel Armor-reinforced PCIe slots. Storage connectivity is handled by six SATA 6Gb/s ports and two M.2 Key-M slots capable of PCIe 3.0 x4 or SATA 6Gb/s drives in 2242, 2260, 2280, and 22110 form factors. RAID 0, 1, 5, and 10 are supported for SATA devices; RAID 0 and 1 are available for M.2 PCIe devices. Intel Optane Memory is supported via the M2_2 slot when switched to PCH lanes. USB connectivity is extensive: a single USB 3.2 Gen2x2 (20 Gbps) Type-C port on the rear panel is powered by an ASMedia ASM3242 controller; an ASMedia ASM3142 controller provides one internal USB 3.2 Gen2 (10 Gbps) Type-C header; the Intel X299 chipset supplies eight USB 3.2 Gen1 (5 Gbps) and eight USB 2.0 ports split between rear panel and internal headers. Networking is handled by a dual-LAN configuration: one Intel I219-V Gigabit controller and one Realtek RTL8125-CG 2.5G controller. Note that the I219-V does not support G3 to S5 Wake. Audio is provided by a Realtek ALC1220 codec delivering 7.1-channel High Definition Audio with S/PDIF optical output. Power delivery uses two 8-pin ATX 12V connectors alongside the standard 24-pin ATX main connector. Additional headers include a 4-pin CPU fan, a 4-pin water pump connector, four 4-pin system fan headers, a TPM module header, a chassis intrusion header, a Virtual RAID on CPU (VROC) connector, and a Thunderbolt Add-on Card connector. Verifiable Specifications: • Form Factor: ATX — 12 in. × 9.6 in. (30.5 cm × 24.4 cm), 9 mounting holes • Socket: LGA2066 • Chipset: Intel X299 • CPU Support: Intel Core X-series 10000 / 9000 / 78xx (above) • Memory: 8× DDR4 DIMM, quad-channel, up to 256 GB, DDR4-4200 (OC) max • Expansion: 4× PCIe 3.0 x16 • Storage: 6× SATA 6Gb/s, 2× M.2 (PCIe 3.0 x4 / SATA) • USB Rear Panel: 1× USB 3.2 Gen2x2 Type-C (20 Gbps), 2× USB 3.2 Gen1 Type-A, 4× USB 2.0 • LAN: Intel I219-V (1 GbE) + Realtek RTL8125-CG (2.5 GbE) • Audio: Realtek ALC1220, 7.1-channel HD Audio, S/PDIF out • Multi-GPU: 3-Way NVIDIA SLI / 3-Way AMD CrossFire • OS Support: Windows 10 64-bit • Warranty: 3 Years
