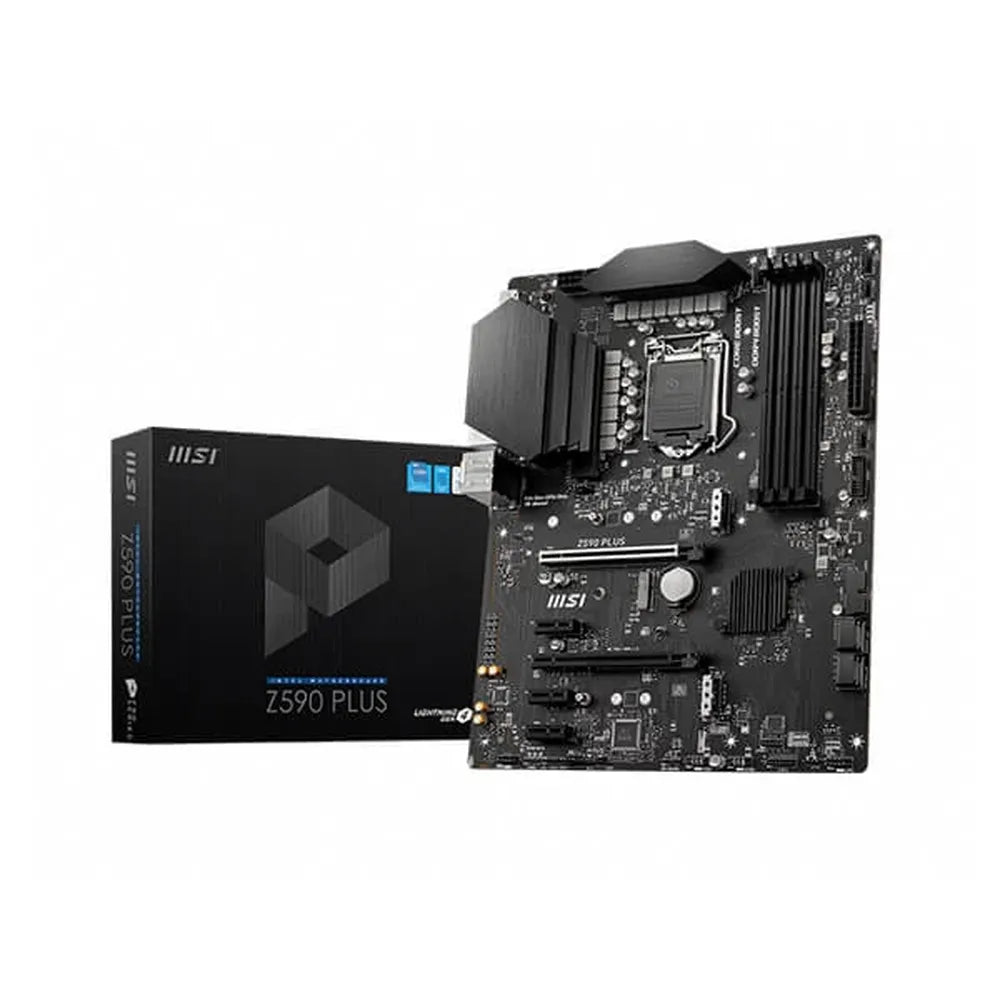

Feature of MSI Z590 Plus DDR4 Intel Motherboard
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- Premium Thermal Solution: Extended Heatsink Design are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
User Friendly Design
MSI Motherboards Feature tons of convienient and smart design for DIY users, countles system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisty even the most demanding tweaker. make it so easy to install your own motherboard without any issue
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
EZ DEBUG LED DESIGN
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again
COMPATIBILITY
- 11TH GEN CORE PROCESSORS SUPPORT
- EXTREME STABILITY & COMPATIBILITY TESTING FOR MEMORY
- WINDOWS 10 CERTIFIED
MORE RELIABLE CIRCUIT TRANSMISSION
6-layer PCB allows for higher bandwidth and faster transfer speeds. This is also beneficial for reliable circuit transmission.
CONNECTIVITY
The most important thing o fdiy is expandability. MSI PRO seriees motherboads featuree plenty possibility for prosumer’s neeed. Stable LAN, Faster storangee and usb transfer speed and other expandable connectors are ready to enlarge your flexibity.
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
FAST AND FUTURE-READY STORAGE (LIGHTNING GEN 4)
MSI Z590 Plus PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Read and write your files over USB faster than ever. MSI PRO series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 20Gbps transferring speed by reversible Type-C.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
EXPERIENCE MORE
MSI PRO Series motherboards are design to satisfy any professional workflow, Elevate your listenings pleasure and enjoy extremely sound quality. Moreover, with year of experiance in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your systemto deliver reliable maximum performance.
A HUGE STEP OF DDR4 PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HD AUDIO CONNECTORS
Keep you sound perfect by transmit your audio with pure digital signal.

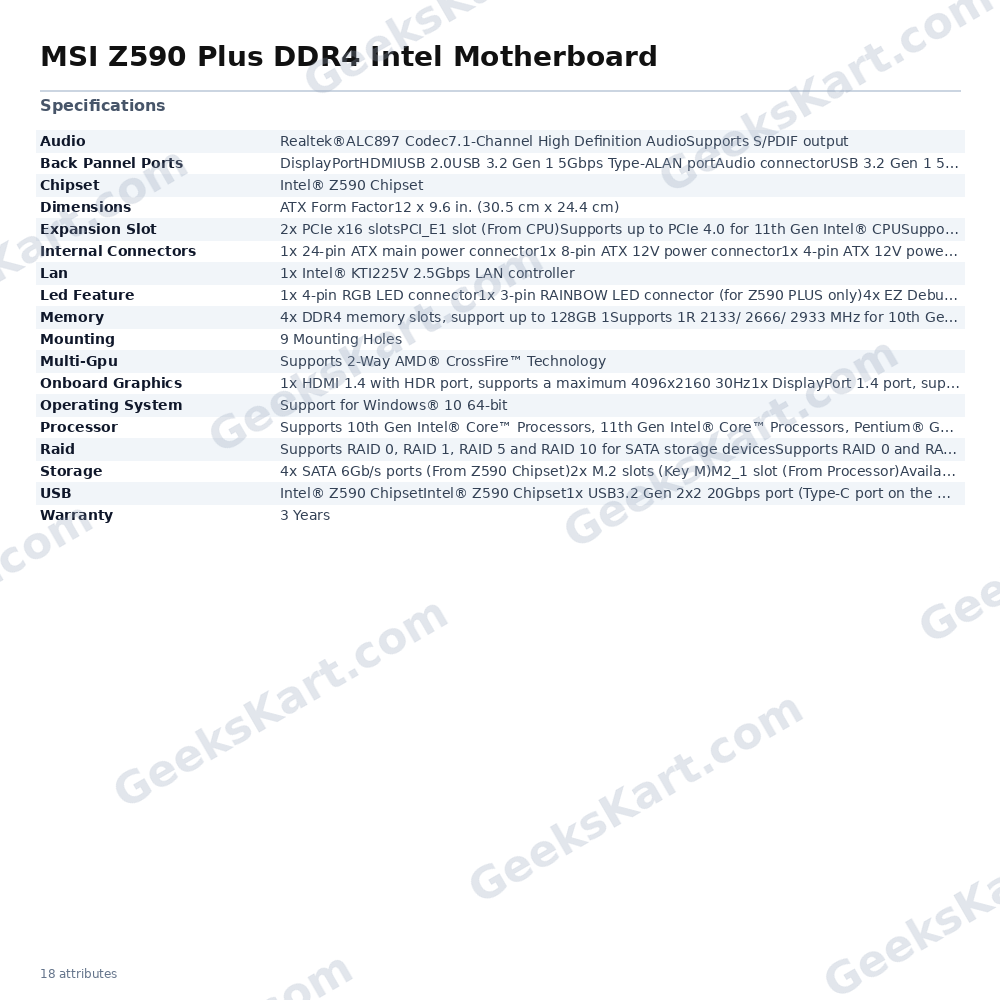

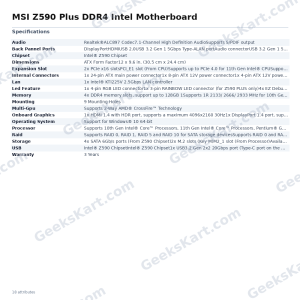

Specifications of MSI Z590 Plus DDR4 Intel Motherboard
| Processor | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 |
| Chipset | Intel® Z590 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slot | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0 x4 speed 3x PCIe 3.0 x1 slots (From Z590 Chipset)1x M.2 slot with E key for WiFi module only (M2_3) |
| Onboard Graphics | 1x HDMI 1.4 with HDR port, supports a maximum 4096×2160 30Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| Storage | 4x SATA 6Gb/s ports (From Z590 Chipset) 2x M.2 slots (Key M) M2_1 slot (From Processor) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0×4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z590 chipset) Support up to PCIe 3.0×4 Support up to SATA 6Gb/s Support 2242/ 2260/ 2280 storage devices |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | Intel® Z590 Chipset Intel® Z590 Chipset 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 4 Type-A ports available through the internal connector) 2x USB 2.0 ports on the back panel Hub-ASM1074 2x USB 3.2 Gen 1 5Gbps ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors |
| Audio | Realtek®ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Lan | 1x Intel® KTI225V 2.5Gbps LAN controller |
| Internal Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x M.2 slot (E-Key) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector |
| Led Feature | 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector (for Z590 PLUS only) 4x EZ Debug LED (for Z590 PLUS only) |
| Back Pannel Ports | DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A Optical S/PDIF Out |
| Dimensions | ATX Form Factor 12 x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 Mounting Holes |
| Operating System | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
