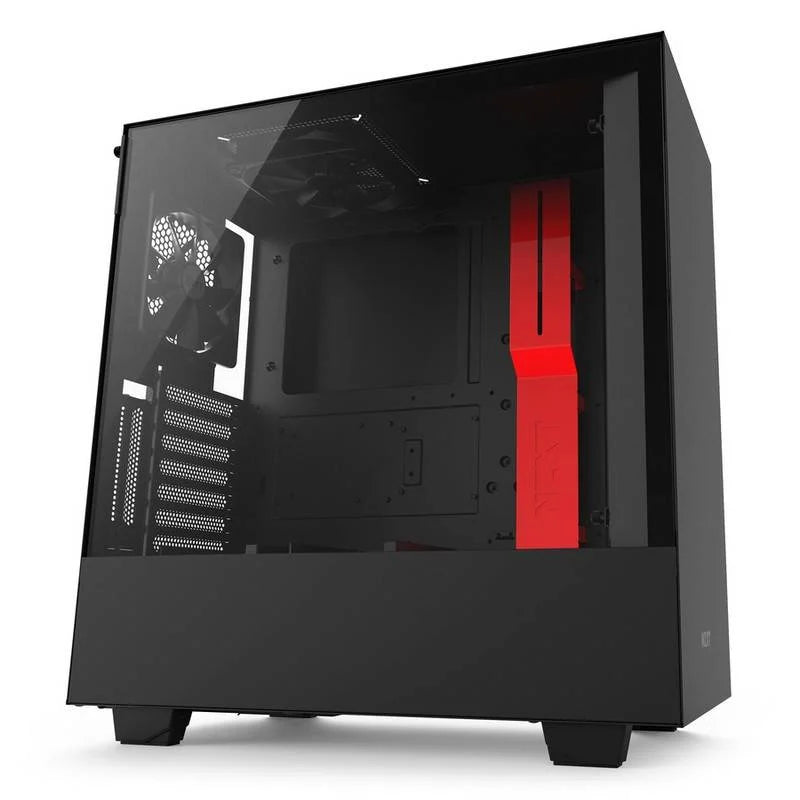

NZXT H500i ATX Mid Tower Cabinet ( Black-Red )

The NZXT H500i ATX Mid Tower Cabinet in Black-Red is a compact, feature-rich PC enclosure built from SECC steel and tempered glass. Designed to support Mini-ITX, MicroATX, and ATX motherboards, it offers a clean aesthetic matched with practical build features that suit both first-time builders and experienced enthusiasts. At the heart of the H500i is the integrated Smart Device — a CAM-powered controller that consolidates fan management and RGB lighting into a single unit. It provides three fan channels with a maximum output of 10W per channel, one RGB LED port supporting up to four HUE LED strips or five Aer RGB fans, and a built-in noise detection module. This module is used by the Adaptive Noise Reduction feature, which measures ambient system noise and adjusts fan speeds automatically — removing the need to manually configure fan curves. Two Aer F120 case fans are included. Each runs at 1,200 ±200 RPM, delivers 50.42 CFM of airflow, and operates at 28 dBA, using a rifle bearing for longevity. Fan support extends to two 120mm or 140mm positions at the front, one 120mm or 140mm position at the top, and one 120mm at the rear. For liquid-cooling builds, the front bracket accommodates radiators up to 280mm, while the rear supports a 120mm radiator. An integrated reservoir mount is present for custom-loop configurations. Front radiator clearance is 60mm and rear is 60mm, giving adequate room for thick radiators and fittings. GPU clearance reaches up to 381mm, and a vertical GPU mount bracket is included for two-slot graphics cards — a 30cm riser card is recommended but not included. CPU cooler height clearance is 165mm. The cable management channel provides 19–23mm of routing space behind the motherboard tray, and the adjustable cable bar aids in keeping the interior tidy. Storage options include two 2.5-inch SSD trays on the PSU shroud (also mountable behind the motherboard tray) and support for 3.5-inch drives. Front I/O includes two USB 3.1 Gen 1 ports and a combined audio/mic jack. Seven expansion slots are available. Dust filtration covers the front right side panel, bottom front, and PSU intake areas. Verified Specifications: — Form Factor: ATX Mid Tower — Dimensions (without feet): W 210mm × H 435mm × D 428mm — Dimensions (with feet): W 210mm × H 460mm × D 428mm — Weight: 7 kg — Materials: SECC Steel, Tempered Glass — Motherboard Support: Mini-ITX, MicroATX, ATX — Expansion Slots: 7 — I/O: 2× USB 3.1 Gen 1, 1× Audio/Mic — Included Fans: 2× Aer F120 (1,200 ±200 RPM, 50.42 CFM, 28 dBA, Rifle Bearing) — Fan Support: Front 2× 120/140mm, Top 1× 120/140mm, Rear 1× 120mm — Radiator Support: Front up to 280mm, Rear 120mm — GPU Clearance: up to 381mm — CPU Cooler Clearance: up to 165mm — Drive Bays: 2× 2.5-inch, 2× 3.5-inch — Smart Device: 3 fan channels (max 10W each), 1 RGB LED port — Warranty: 2 Years CAM software requires an internal USB 2.0 header, a Windows 10 or later system, and an internet connection for full feature access
