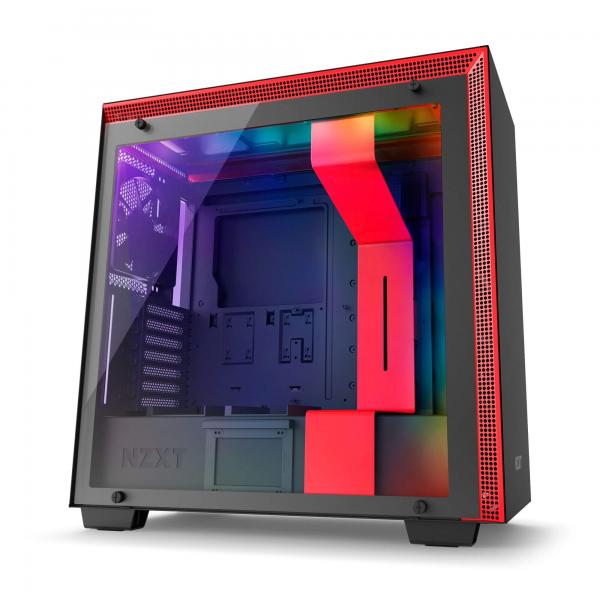

NZXT H700i ATX Mid Tower Cabinet ( Black-Red )

The NZXT H700i (model CA-H700W-BR) is a mid-tower ATX PC case built around NZXT’s CAM-powered Smart Device, which integrates fan control and RGB lighting management into a single digital controller. The Smart Device offers three fan channels with a maximum output of 10W per channel, plus one RGB LED port supporting up to four HUE LED strips or five Aer RGB fans. Two pre-installed RGB LED strips are individually addressable, visible through the large tempered glass side panel that gives a clear view of the interior. The chassis is constructed from SECC steel and tempered glass, weighing 12.27 kg. It measures 230 mm wide, 494 mm tall, and 494 mm deep without feet (516 mm tall with feet). Motherboard compatibility spans Mini-ITX, Micro-ATX, ATX, and EATX up to 272 mm (10.7 inches). Seven expansion slots accommodate multi-GPU or high-end single-GPU builds; GPU clearance extends to 413 mm, and CPU cooler height clearance is up to 185 mm. Cooling is a strong point: the front accepts two 140 mm or three 120 mm fans plus a radiator up to 360 mm with push/pull configuration, while the top supports the same fan count with a 280 mm or 360 mm radiator. The rear fits one 120 mm or 140 mm fan. Included fans are three Aer F120 (case version) running at 1,200 ±200 RPM, 50.42 CFM airflow, and 28 dBA noise on rifle bearings, and one Aer F140 (case version) at 1,000 ±200 RPM, 68.95 CFM, 29 dBA on rifle bearings. Integrated reservoir mounting along the cable bar supports custom-loop reservoirs and pumps up to 224 mm. Storage capacity reaches seven 2.5-inch drive bays (three quick-release trays on the PSU shroud, two steel trays behind the motherboard tray) and two 3.5-inch drive cages beneath the PSU shroud. Cable management clearance behind the motherboard tray is 18–22 mm, and the adjustable cable bar helps route longer runs cleanly. Front I/O includes two USB 2.0 ports, two USB 3.1 Gen 1 ports, and a combined audio/mic jack. Front and PSU intake positions are fully filtered. The H700i carries a 2-year manufacturer warranty and requires an internal USB 2.0 header and an internet connection to use NZXT’s CAM software. Verified Specifications: – Model: CA-H700W-BR – Dimensions: W 230 mm × H 494 mm × D 494 mm (without feet); H 516 mm (with feet) – Weight: 12.27 kg – Material: SECC Steel + Tempered Glass – Motherboard Support: Mini-ITX / Micro-ATX / ATX / EATX (up to 272 mm) – Expansion Slots: 7 – Front I/O: 2× USB 2.0, 2× USB 3.1 Gen 1, 1× Audio/Mic – Included Fans: 3× Aer F120 (front) + 1× Aer F140 (rear) – Fan Support: Front 3×120/2×140 mm; Top 3×120/2×140 mm; Rear 1×120/1×140 mm – Radiator Support: Front up to 360 mm; Top up to 360 mm – GPU Clearance: Up to 413 mm – CPU Cooler Clearance: Up to 185 mm – Drive Bays: 7× 2.5-inch; 2× 3.5-inch – Smart Device: 3 fan channels (10W each), 1 RGB LED port – Warranty: 2 Years
