NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)
MPN NZXT-N7-B550-BLACK · Brand NZXT · ATX
The NZXT N7 B550 (N7-B55XT-B1) is an ATX motherboard for AMD AM4 Ryzen processors featuring Wi-Fi 6E, Bluetooth 5.2, dual M.2 slots, 128 GB DDR4 support, and NZXT CAM-controlled RGB and fan management
Inclusive of GST · GST invoice available
Overview

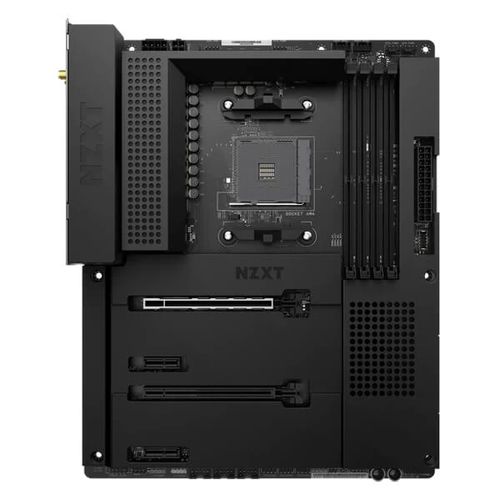

The NZXT N7 B550 (model N7-B55XT-B1) is an ATX-form-factor motherboard built on the AMD B550 chipset and designed for the AM4 socket. It is compatible with AMD Ryzen 3000, 4000, and 5000 Series processors — note that the Ryzen 5 3400G and Ryzen 3 3200G APUs are not supported. The board ships in a distinctive matte-black cover finish that integrates an I/O shield directly into the rear panel, simplifying the build process and giving the interior a cleaner appearance. Connectivity is a highlight. Wireless networking is handled by an Intel AX210 adapter supporting Wi-Fi 6E across 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11 a/b/g/n/ac/ax protocols and MU-MIMO, paired with Bluetooth 5.2. Wired networking uses a Realtek RTL8125BG 2.5 Gigabit LAN controller. The rear I/O panel provides 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, and 2 x USB 2.0 ports, alongside an HDMI 2.1 output, optical S/PDIF, 5.1-channel audio jacks, a BIOS Flashback button, and a Clear CMOS button. Memory support extends to four DDR4 DIMM slots with a maximum capacity of 128 GB. Base speeds of 2133–3200 MHz are complemented by XMP support and overclocked profiles reaching 4666+ MHz on Vermeer and Matisse CPUs and 4733+ MHz on Renoir APUs. Both ECC and non-ECC unbuffered memory types are supported in a dual-channel configuration. Storage options include one M.2 slot (2242/2260/2280, PCIe 4.0 x4 on Vermeer/Matisse or PCIe 3.0 on Renoir) and a second M.2 slot (PCIe 3.0 x2 and SATA mode), plus six SATA 6 Gb/s ports with RAID 0/1/5/10 support. Expansion slots comprise one PCIe x16 (PCIe 4.0 x16 on Vermeer/Matisse), one PCIe x16 (x4 mode), and two PCIe 3.0 x1 slots, with 2-Way AMD CrossFireX multi-GPU support. Audio is delivered by a Realtek ALC1220 codec providing 8-channel high-definition audio at 32-bit/192 kHz through Nichicon Fine Gold Series audio capacitors. Thermal and lighting management run through NZXT CAM software, which controls four RGB channels (via 2 x NZXT RGB, 1 x 5V ARGB, and 1 x 12V RGB headers) and seven independent fan channels (one CPU_FAN, one AIO_PUMP up to 24 W, and five SYS_FAN connectors each up to 24 W). Verified Specifications: - Model: N7-B55XT-B1 - Chipset: AMD B550 | Socket: AM4 | Form Factor: ATX - CPU Support: Ryzen 3000/4000/5000 Series (AM4); Ryzen 5 3400G and Ryzen 3 3200G not supported - Memory: 4 x DDR4 DIMM, Max 128 GB; XMP; OC up to 4733+ MHz - Storage: 1 x M.2 PCIe 4.0 x4 + 1 x M.2 PCIe 3.0 x2/SATA; 6 x SATA 6 Gb/s; RAID 0/1/5/10 - Wireless: Intel AX210 Wi-Fi 6E (2.4/5/6 GHz, MU-MIMO); BT 5.2 - LAN: Realtek RTL8125BG 2.5G - Audio: Realtek ALC1220, 8-ch HD, 32-bit/192 kHz, Nichicon Fine Gold capacitors - Rear USB: 1 x Gen 2 Type-C, 3 x Gen 2 Type-A, 4 x Gen 1, 2 x USB 2.0 - Display: HDMI 2.1 (APU only, max 4096×2160@60 Hz) - Multi-GPU: AMD 2-Way CrossFireX - Warranty: 3 Years

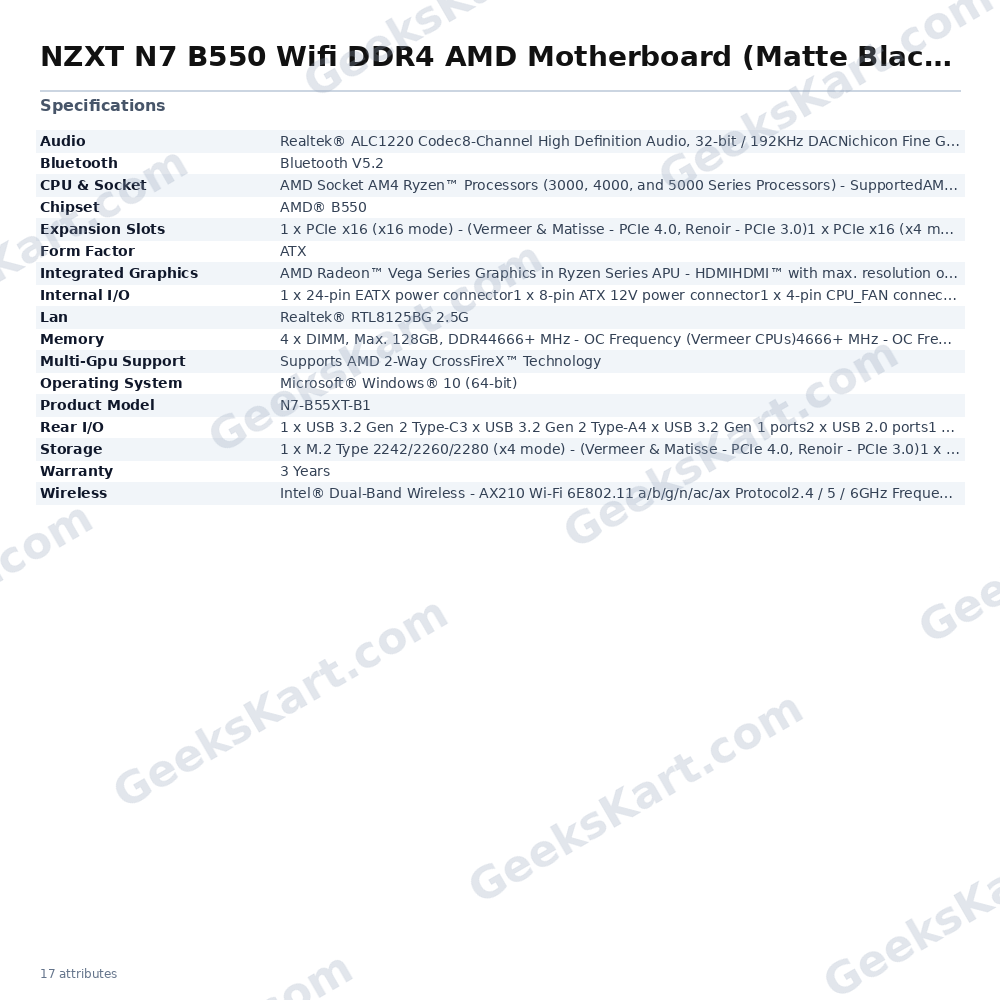

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD® B550 |
| Lan | Realtek® RTL8125BG 2.5G |
| Audio | Realtek® ALC1220 Codec8-Channel High Definition Audio, 32-bit / 192KHz DACNichicon Fine Gold Series Audio Capacitors |
| Memory | 4 x DIMM, Max. 128GB, DDR44666+ MHz – OC Frequency (Vermeer CPUs)4666+ MHz – OC Frequency (Matisse CPUs)4733+ MHz – OC Frequency (Renoir APUs)3200/2933/2667/2400/2133 – Base FrequencyECC & non-ECC, un-buffered memory typeDual-channel memory architectureXMP Supported |
| Storage | 1 x M.2 Type 2242/2260/2280 (x4 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)6 x SATA 6Gb/s – (M2_2 and SATA3_5_6 share lanes)RAID 0/1/5/10 Supported |
| Rear I/O | 1 x USB 3.2 Gen 2 Type-C3 x USB 3.2 Gen 2 Type-A4 x USB 3.2 Gen 1 ports2 x USB 2.0 ports1 x HDMI 2.12 x Wireless Antenna (2T2R)1 x LAN (RJ45) Port1 x 5.1-Channel Audio Jacks1 x Optical S/PDIF1 x BIOS Flashback Button1 x Clear CMOS Button |
| Wireless | Intel® Dual-Band Wireless – AX210 Wi-Fi 6E802.11 a/b/g/n/ac/ax Protocol2.4 / 5 / 6GHz Frequency BandsSupports MU-MIMO |
| Bluetooth | Bluetooth V5.2 |
| CPU & Socket | AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) – SupportedAMD Ryzen™ 5 3400G and Ryzen™ 3200G – Not Supported |
| Internal I/O | 1 x 24-pin EATX power connector1 x 8-pin ATX 12V power connector1 x 4-pin CPU_FAN connector1 x 4-pin AIO_PUMP connector (Up to 24W)5 x 4-pin SYS_FAN connectors (Up to 24W)1 x CPU_FAN Connector (Up to 24W)2 x NZXT RGB LED connectors1 x 5V Addressable RGB connector1 x 12V RGB connector1 x M.2 (M Key), Type 2242/2260/2280 – (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)1 x M.2 (E Key) (For wireless cards)6 x SATA 6Gbps Ports1 x USB 3.2 Gen 2 Header (Type-C)1 x USB 3.2 Gen 1 Header (Up to 2 ports)3 x USB 2.0 Header (Up to 6 ports)1 x Front Panel Audio1 x Power Button1 x Reset Button4 x POST LEDs |
| Product Model | N7-B55XT-B1 |
| Expansion Slots | 1 x PCIe x16 (x16 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0)1 x PCIe x16 (x4 mode)2 x PCIe 3.0 x1 |
| Operating System | Microsoft® Windows® 10 (64-bit) |
| Multi-Gpu Support | Supports AMD 2-Way CrossFireX™ Technology |
| Integrated Graphics | AMD Radeon™ Vega Series Graphics in Ryzen Series APU – HDMIHDMI™ with max. resolution of 4096×2160@60HzMaximum shared memory of 16GB with 32GB installedMicrosoft PlayReady® Supported |
