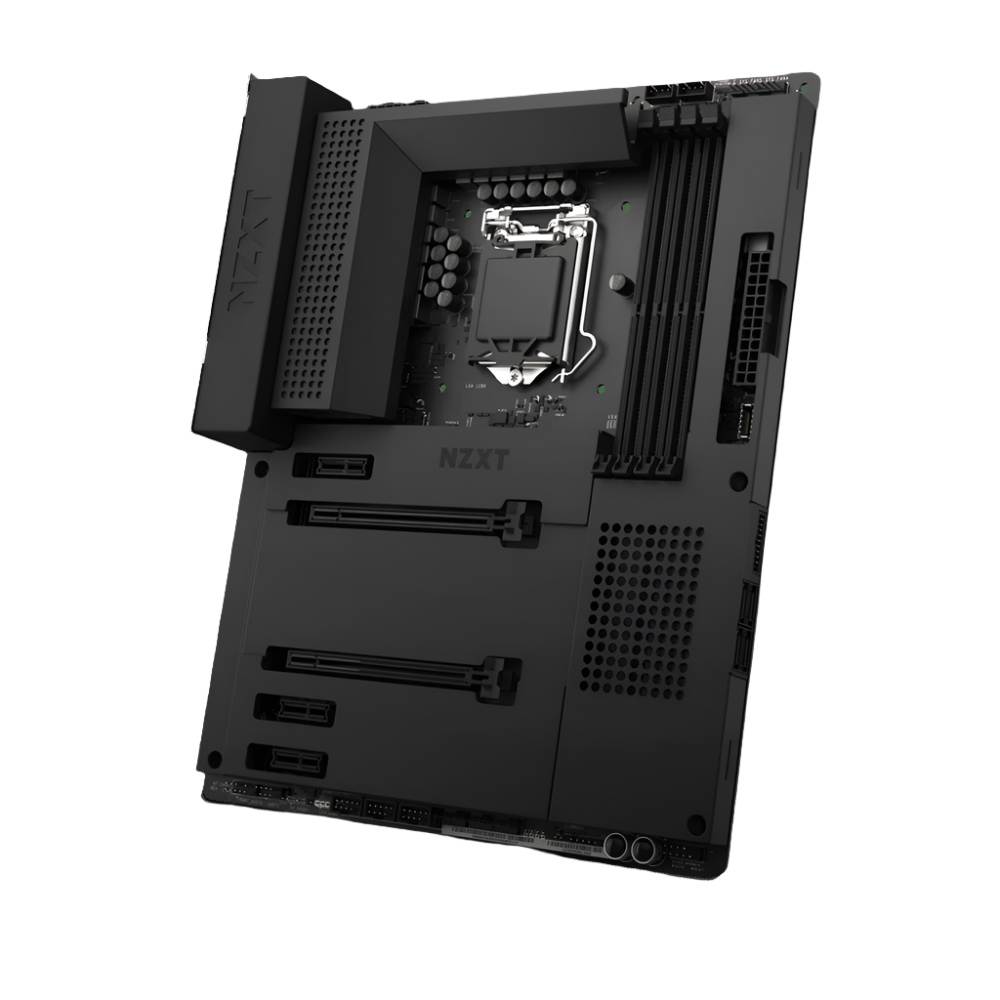

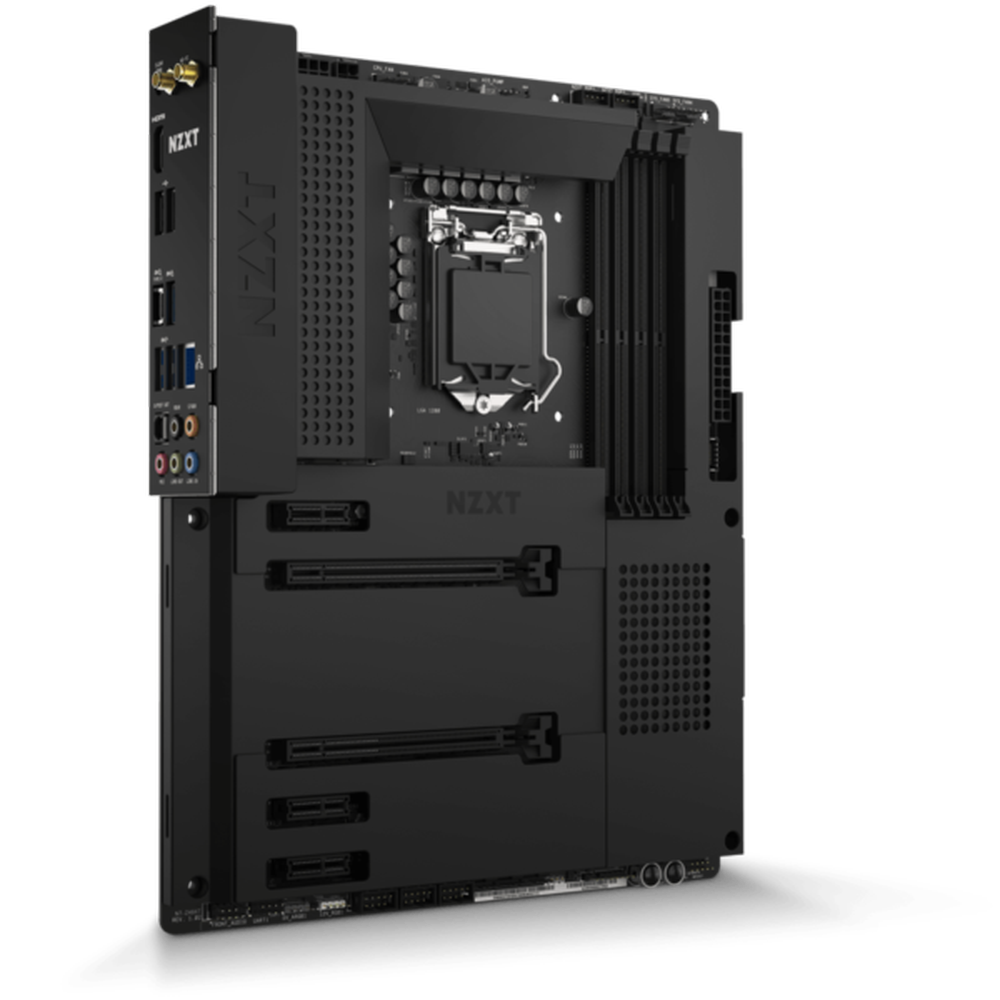

NZXT N7 Z490 Wifi DDR4 Intel Motherboard (Matte Black)
MPN NZXT-N7-Z490 · Brand NZXT · ATX
The NZXT N7 Z490 Matte White ATX motherboard supports Intel 10th Gen LGA 1200 CPUs with Wi-Fi 6, Bluetooth 5.1, 2.5G LAN, 128 GB DDR4, and integrated 7-channel fan control via NZXT CAM
Inclusive of GST · GST invoice available
Overview

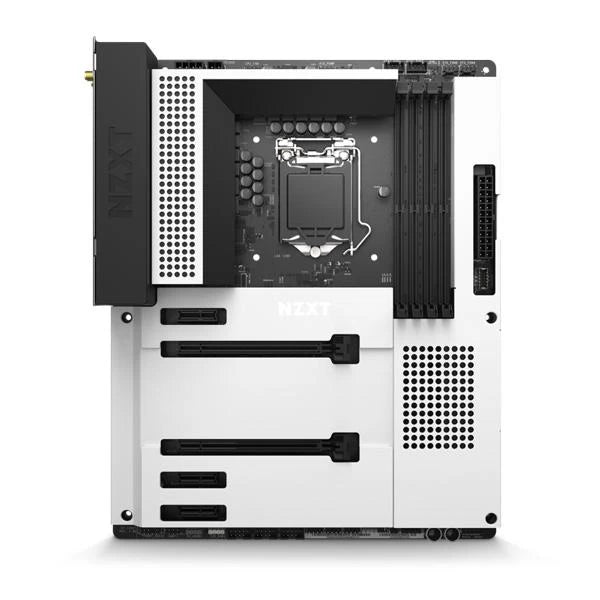

The NZXT N7 Z490 DDR4 Intel Motherboard in Matte White (model N7-Z49XT-W1) is an ATX-form-factor board built on Intel's Z490 chipset, designed for Intel 10th Generation Core processors using the LGA 1200 socket. Its matte white armour cover is engineered to complement NZXT cases visually, creating a cohesive aesthetic across your build without exposed PCB surfaces. Connectivity is a standout strength. The board ships with an Intel AX200 Wi-Fi 6 adapter supporting 802.11 a/b/g/n/ac/ax across 2.4 GHz and 5 GHz bands with MU-MIMO, paired with Bluetooth 5.1. Wired networking is handled by a Realtek RTL8125BG controller delivering 2.5 Gigabit Ethernet. A full rear I/O antenna is included in the box. NZXT's integrated fan and RGB management is a key differentiator. Seven 4-pin PWM fan headers (1x CPU_FAN, 1x AIO_PUMP, 5x SYS_FAN, each rated up to 24W) are controlled through NZXT CAM software alongside four RGB lighting channels — two NZXT proprietary RGB headers, one 5V addressable RGB header, and one 12V RGB header — supporting accessories from multiple manufacturers. Memory support spans four DDR4 DIMM slots accommodating up to 128 GB in dual-channel configuration. Native speeds include up to 2933 MHz with Intel XMP 2.0 profiles enabling overclocked speeds to 4266 MHz. Storage options include two M.2 slots (both M Key, 2242/2260/2280; one PCIe 3.0 x4 + SATA, one PCIe 3.0 x4 only) and four SATA 6 Gb/s ports with RAID 0/1/5/10 support. Optane Memory compatibility is also present. Expansion slots consist of two PCIe 3.0 x16 slots (single-GPU at x16 or dual-GPU at x16/x4) and three PCIe 3.0 x1 slots. AMD 2-Way CrossFireX is supported for multi-GPU configurations. Audio is driven by a Realtek ALC1220 codec delivering 8-channel HD audio at 32-bit/192 kHz, backed by Nichicon Fine Gold Series audio capacitors. The rear I/O includes an optical S/PDIF output and 5.1-channel analogue jacks. Verified Specifications: - Form Factor: ATX - Chipset: Intel Z490 - Socket: LGA 1200 (Intel 10th Gen Core i3/i5/i7/i9) - Memory: 4x DDR4 DIMM, max 128 GB, up to 4266 MHz (O.C.), XMP 2.0, dual-channel - Storage: 2x M.2 PCIe 3.0 x4 (2242/2260/2280), 4x SATA 6 Gb/s, RAID 0/1/5/10 - Wireless: Intel AX200 Wi-Fi 6 (802.11ax), 2.4/5 GHz, MU-MIMO - Bluetooth: 5.1 - LAN: Realtek RTL8125BG 2.5G - Audio: Realtek ALC1220, 8-ch HD, 32-bit/192 kHz, Nichicon Fine Gold caps - USB: 1x USB 3.2 Gen 2 Type-A + 1x USB 3.2 Gen 2 Type-C (rear), 2x USB 3.2 Gen 1, 2x USB 2.0 at rear; additional mid-board headers - Fan Headers: 7x 4-pin PWM (each up to 24W) - RGB: 2x NZXT RGB, 1x 5V ARGB, 1x 12V RGB - Warranty: 3 Years - Model: N7-Z49XT-W1 - Certifications: FCC, CE, WHQL, ErP/EuP Ready

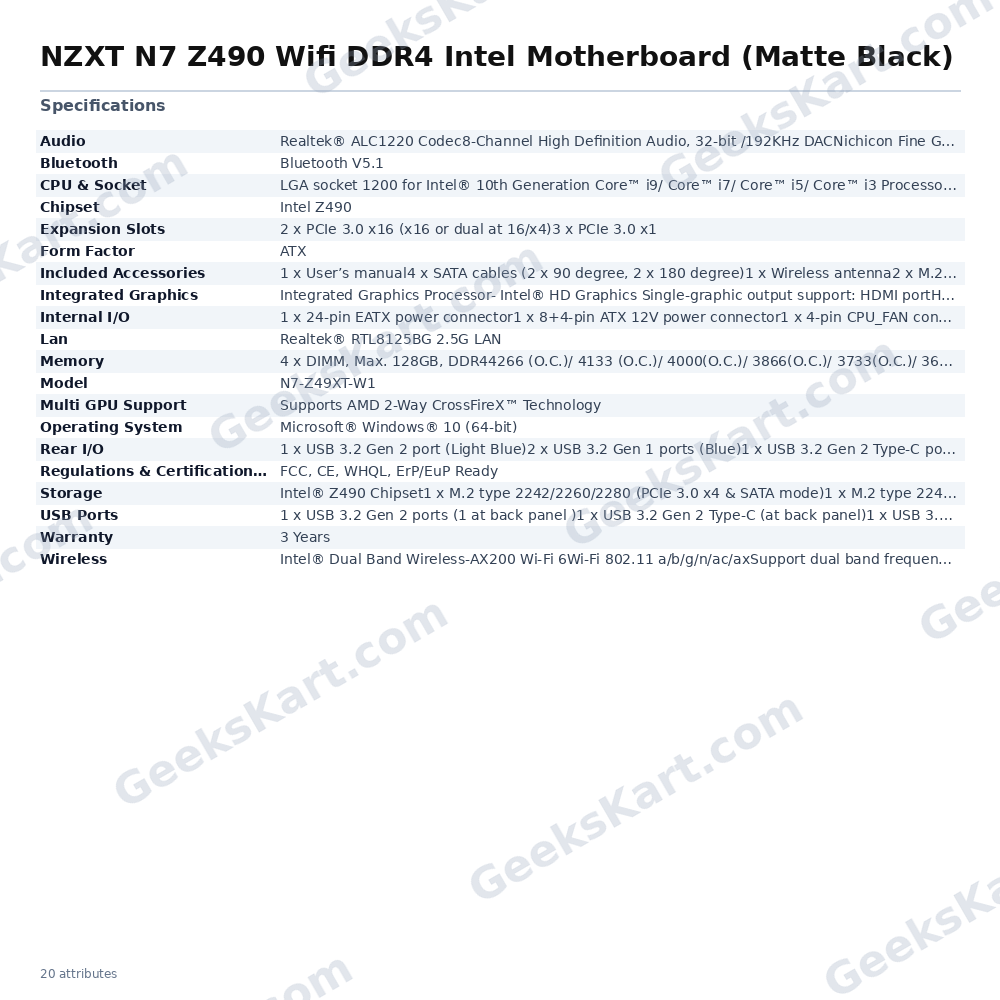

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | INTEL Z490 |
| Lan | Realtek® RTL8125BG 2.5G LAN |
| Audio | Realtek® ALC1220 Codec8-Channel High Definition Audio, 32-bit /192KHz DACNichicon Fine Gold Series Audio Capacitors |
| Memory | 4 x DIMM, Max. 128GB, DDR44266 (O.C.)/ 4133 (O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered MemoryDual-channel memory architectureSupport Intel® Extreme Memory Profile (XMP) 2.0 |
| Storage | Intel® Z490 Chipset1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only)4 x SATA 6Gb/s portsSupport RAID 0/1/5/10Supports Intel® Smart Response TechnologyIntel® Rapid Storage Technology 15Intel® Optane Memory Ready |

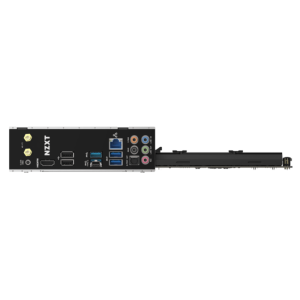

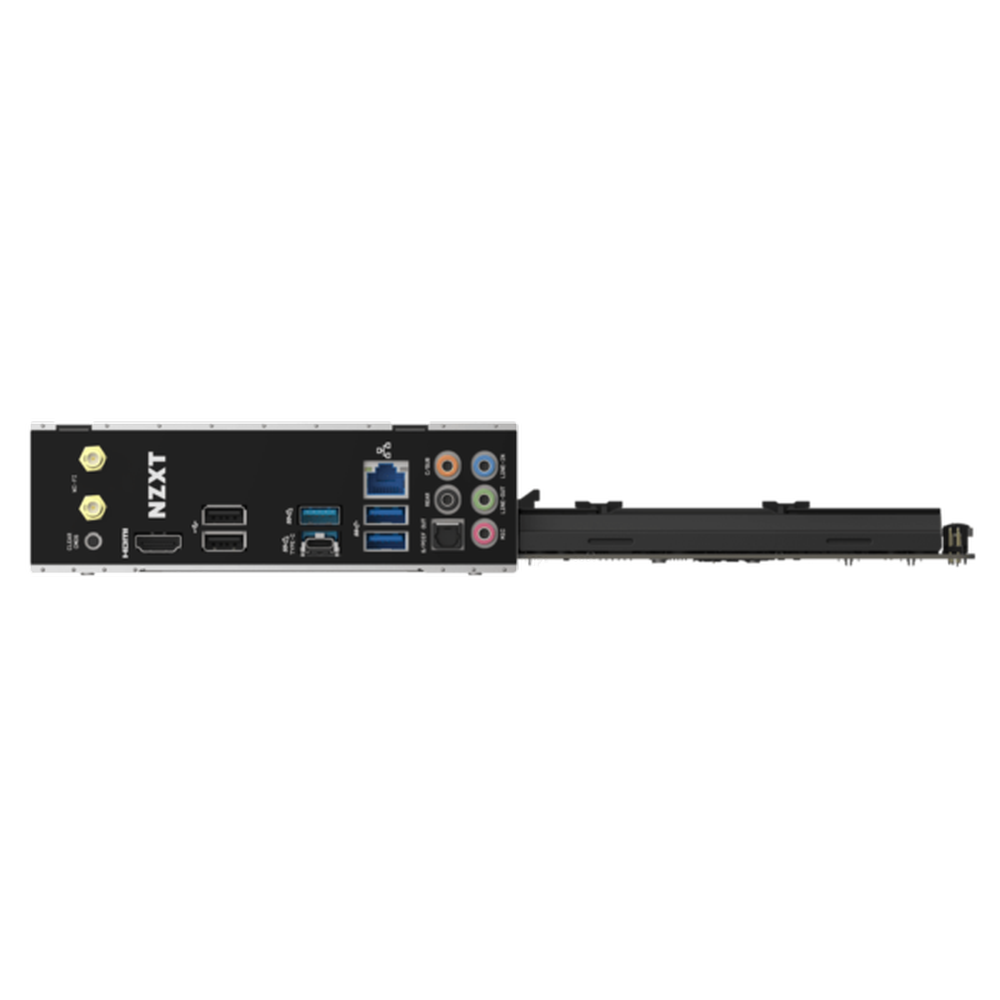

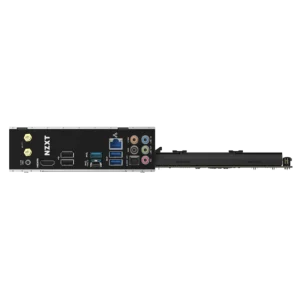

| Rear I/O | 1 x USB 3.2 Gen 2 port (Light Blue)2 x USB 3.2 Gen 1 ports (Blue)1 x USB 3.2 Gen 2 Type-C port2 x USB 2.0 ports1 x HDMI™ 1.4b1 x 2×2 Wireless antenna1 x Clear CMOS button1 x LAN (RJ45) port1 x Optical S/PDIF Out port1 x 5.1-Channel audio jacks |
| Wireless | Intel® Dual Band Wireless-AX200 Wi-Fi 6Wi-Fi 802.11 a/b/g/n/ac/axSupport dual band frequency 2.4/5GHzSupports MU-MIMO |
| Bluetooth | Bluetooth V5.1 |
| USB Ports | 1 x USB 3.2 Gen 2 ports (1 at back panel )1 x USB 3.2 Gen 2 Type-C (at back panel)1 x USB 3.2 Gen 2 front panel port (For USB Type-C)4 x USB 3.2 Gen 1 ports (2 at back panel , 2 at mid-board)8 x USB 2.0 ports (2 at back panel, 6 at mid-board) |
| CPU & Socket | LGA socket 1200 for Intel® 10th Generation Core™ i9/ Core™ i7/ Core™ i5/ Core™ i3 ProcessorsSupport Intel 14nm CPUSupport Intel Turbo Boost Technology 2.0 |
| Internal I/O | 1 x 24-pin EATX power connector1 x 8+4-pin ATX 12V power connector1 x 4-pin CPU_FAN connector (Up to 24W per channel)1 x 4-pin AIO_PUMP connector (Up to 24W per channel)5 x 4-pin SYS_FAN connectors (Up to 24W per channel)2 x NZXT RGB LED connectors1 x 5V Addressable RGB LED connector1 x 12V RGB LED connector3 x USB 2.0 header (Up to 6 USB 2.0 ports)1 x USB 3.2 Gen 1 header (Up to 2 USB 3.2 Gen 1 ports)1 x USB 3.2 Gen 2 front panel header (For USB Type C)4 x SATA 6Gb/s connectors1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 & SATA mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage device support (PCIe 3.0 x4 mode only)1 x M.2 Socket 1 with E Key, (For wireless cards, supports CNVio)1 x Power button1 x Reset button1 x Front panel audio connector4 x POST LEDs |
| Model | N7-Z49XT-W1 |
| Expansion Slots | 2 x PCIe 3.0 x16 (x16 or dual at 16/x4)3 x PCIe 3.0 x1 |
| Operating System | Microsoft® Windows® 10 (64-bit) |
| Multi GPU Support | Supports AMD 2-Way CrossFireX™ Technology |
| Integrated Graphics | Integrated Graphics Processor- Intel® HD Graphics Single-graphic output support: HDMI portHDMI™ with max. resolution of 4096×2160@24HzMaximum shared memory of 1024MB (for iGPU exclusively) |
| Included Accessories | 1 x User’s manual4 x SATA cables (2 x 90 degree, 2 x 180 degree)1 x Wireless antenna2 x M.2 screws |
| Regulations & Certifications (Emc & Safety) | FCC, CE, WHQL, ErP/EuP Ready |
