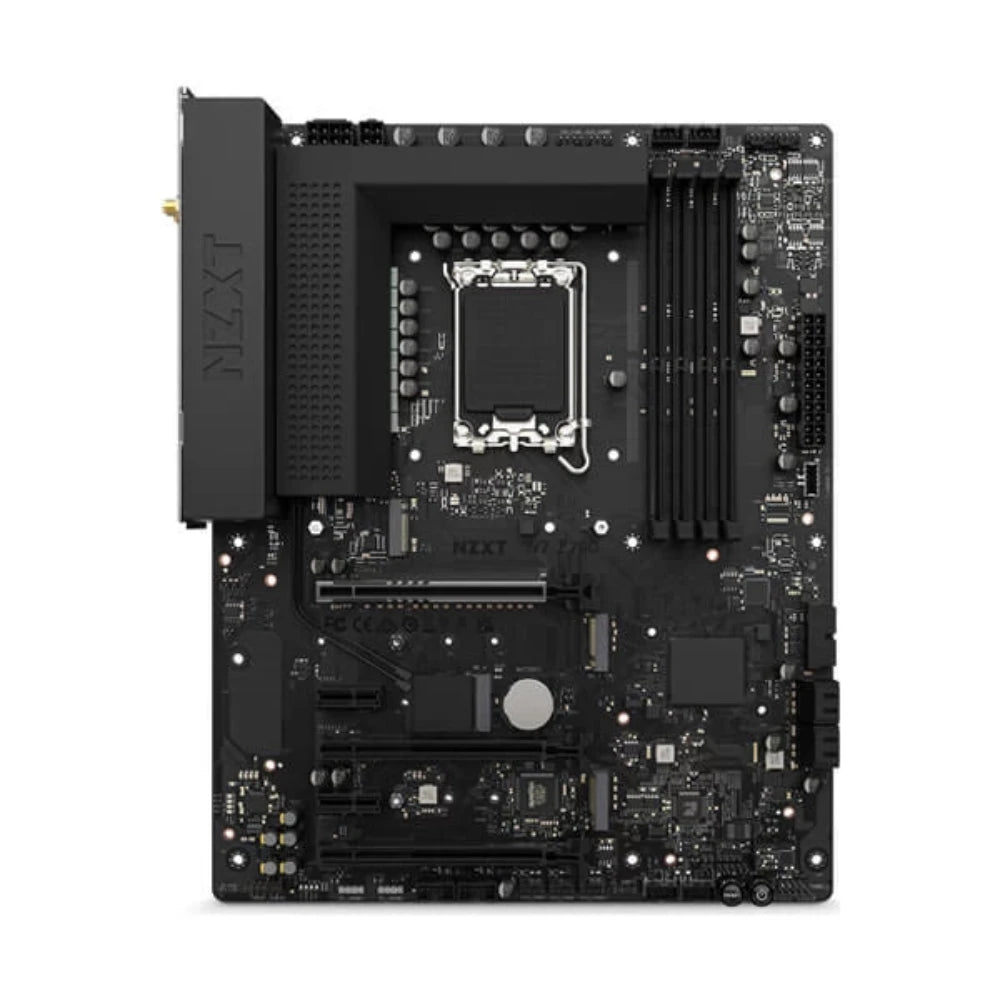

NZXT N7 Z790 Wifi DDR5 Intel Motherboard (Black)
MPN NZXT-N7-Z790-WI-FI-BLACK · Brand NZXT · ATX
The NZXT N7 Z790 Wi-Fi DDR5 ATX Motherboard (Black) supports Intel 12th and 13th Gen LGA 1700 CPUs with PCIe 5.0, up to 128 GB DDR5, Wi-Fi 6E, and a clean full-cover design managed via NZXT CAM
Inclusive of GST · GST invoice available
Overview
The NZXT N7 Z790 Wi-Fi DDR5 ATX Motherboard in Black is a full-featured Intel Z790 Express chipset board built for 12th and 13th Generation Intel Core processors using the LGA 1700 socket. Its clean, fully covered aesthetic makes it a natural fit for showcase builds, with an integrated rear I/O shield and a full-cover panel available in black or white that conceals cabling and contributes to a visually unified interior. Power delivery is handled by a 16+1+2 DrMOS power phase design on a 2 oz copper PCB, providing stable voltage regulation for both stock and overclocked configurations. The board supports DDR5 memory across four DIMM slots, accommodating up to 128 GB in dual-channel mode. Intel XMP 3.0 is supported for straightforward memory frequency tuning, with overclocked speeds achievable above 5000 MHz (subject to the memory QVL). Storage options are generous: three M.2 connectors (M.2_1 and M.2_2 each support PCIe 4.0 x4 in Type 2242/2260/2280 and up to 22110 form factors respectively; M.2_3 supports PCIe 4.0 x4 and SATA 6 Gb/s), plus four SATA 6 Gb/s ports and Intel VMD support. The primary PCIe slot runs at PCIe 5.0 x16 for the latest discrete GPUs, accompanied by two PCIe 4.0 x16 slots operating at x4 mode and two PCIe 3.0 x1 slots for additional expansion. Wireless connectivity is provided by dual-band Wi-Fi 6E with two rear SMA antenna connectors, and Bluetooth 5.2. Wired networking uses a Realtek RTL8125BG 2.5G LAN controller. Audio is driven by a Realtek ALC1220 codec delivering 8-channel HD audio with five rear audio jacks and an optical S/PDIF output. The rear I/O panel includes one HDMI port, one USB 3.2 Gen 2x2 Type-C (20 Gbps), two USB 3.2 Gen 2, three USB 3.2 Gen 1, two USB 2.0, and one RJ45 LAN port, alongside a Clear CMOS button for convenient BIOS recovery. Internal headers support front-panel USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1, and dual USB 2.0 headers. RGB lighting is managed through four NZXT RGB LED connectors and two 5V ARGB connectors, all configurable via NZXT CAM software. Seven independent fan channels (one CPU_FAN, one AIO_PUMP, five SYS_FAN) provide comprehensive thermal management. Key Specifications: - Socket: Intel LGA 1700 (12th & 13th Gen Core) - Chipset: Intel Z790 Express - Form Factor: ATX - Memory: 4× DDR5 DIMM, max 128 GB, dual-channel, XMP 3.0, 5000+ MHz OC - Storage: 3× M.2 (PCIe 4.0 x4 / SATA 6 Gb/s), 4× SATA 6 Gb/s - Expansion: 1× PCIe 5.0 x16, 2× PCIe 4.0 x16 (x4 mode), 2× PCIe 3.0 x1 - Wireless: Wi-Fi 6E (dual-band) + Bluetooth 5.2 - LAN: Realtek RTL8125BG 2.5 GbE - Audio: Realtek ALC1220, 8-channel HD - Rear USB: 1× USB 3.2 Gen 2x2 Type-C, 2× USB 3.2 Gen 2, 3× USB 3.2 Gen 1, 2× USB 2.0 - Power: 16+1+2 DrMOS, 2 oz copper PCB - OS Support: Windows 11/10 64-bit - Warranty: 3 Years

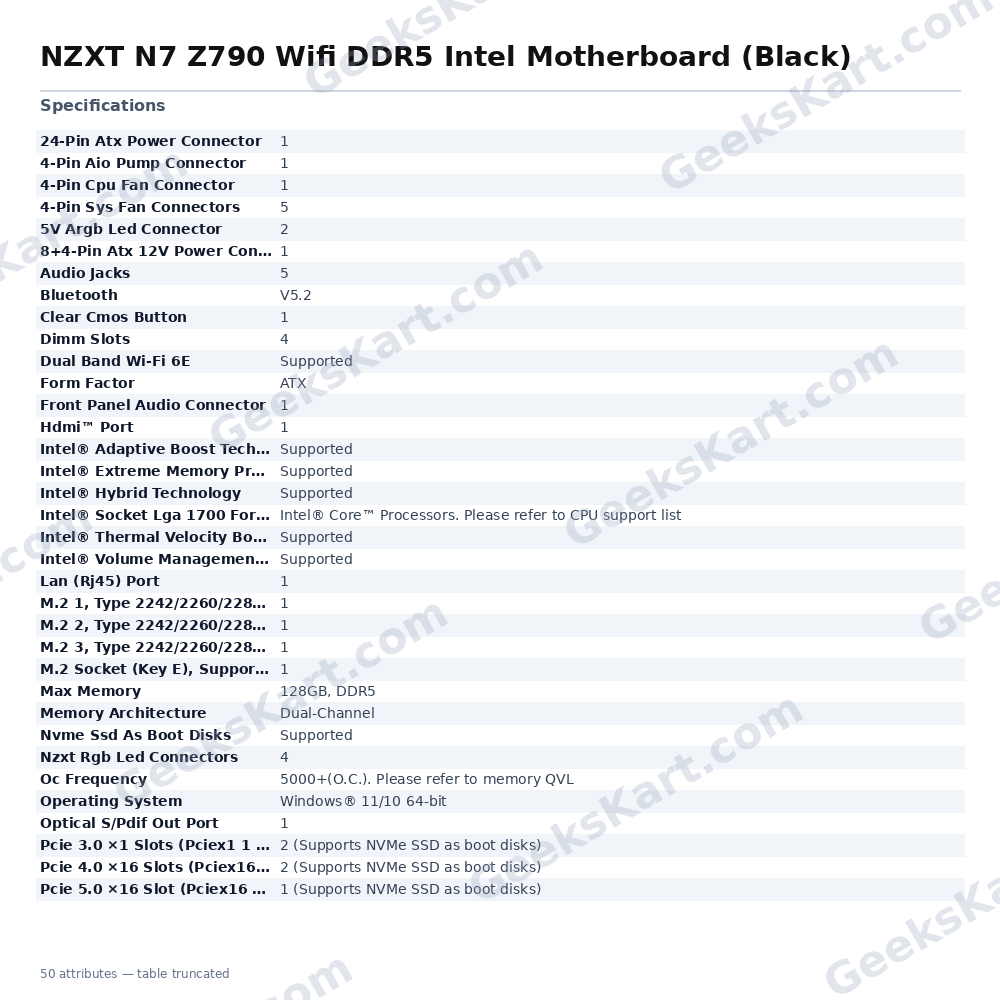

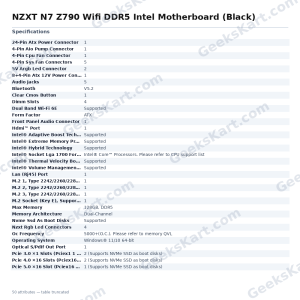

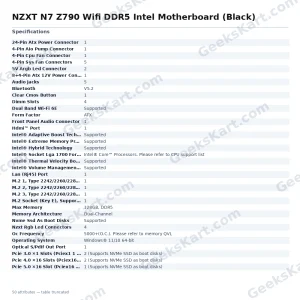

Datasheet
| Usb 2.0 | 2 |
|---|---|
| Bluetooth | V5.2 |
| Post Leds | 4 |
| Realtek® | RTL8125BG 2.5G LAN |
| Dimm Slots | 4 |
| Audio Jacks | 5 |
| Hdmi™ Port | 1 |
| Oc Frequency | 5000+(O.C.). Please refer to memory QVL |
| Power Button | 1 |
| Reset Button | 1 |
| Lan (Rj45) Port | 1 |
| Operating System | Windows® 11/10 64-bit |
| Sata 6Gb/S Ports | 4 |
| Clear Cmos Button | 1 |
| Dual Band Wi-Fi 6E | Supported |
| Memory Architecture | Dual-Channel |
| Usb 3.2 Gen 1 Ports | 3 |
| Usb 3.2 Gen 2 Ports | 2 |
| 5V Argb Led Connector | 2 |
| Nvme Ssd As Boot Disks | Supported |
| 4-Pin Cpu Fan Connector | 1 |
| Nzxt Rgb Led Connectors | 4 |
| Optical S/Pdif Out Port | 1 |
| 4-Pin Aio Pump Connector | 1 |
| 4-Pin Sys Fan Connectors | 5 |
| Intel® Hybrid Technology | Supported |
| 24-Pin Atx Power Connector | 1 |
| Front Panel Audio Connector | 1 |
| Usb 3.2 Gen 2X2 Type-C Port | 1 |
| Turbo Boost Max 3.0 Technology | Supported |
| 8+4-Pin Atx 12V Power Connector | 1 |
| Wireless Antenna Sma Connectors | 2 |
| Intel® Thermal Velocity Boost (Tvb) | Supported |
| Intel® Volume Management Device (Vmd) | Supported |
| Usb 2.0 Header (Up To 4 Usb 2.0 Ports) | 2 |
| Intel® Adaptive Boost Technology (Abt) | Supported |
| Intel® Extreme Memory Profile (Xmp) 3.0 | Supported |
| Pcie 3.0 ×1 Slots (Pciex1 1 And Pciex1 2) | 2 (Supports NVMe SSD as boot disks) |
| M.2 1, Type 2242/2260/2280 (Pcie 4.0 ×4 Mode) | 1 |
| Usb 3.2 Gen1 Header (Up To 2 Usb 3.2 Gen 1 Ports) | 1 |
| Pcie 5.0 ×16 Slot (Pciex16 1), Supports ×16 Mode | 1 (Supports NVMe SSD as boot disks) |
| Usb 3.2 Gen2X2 Front Panel Header (For Usb Type-C) | 1 |
| M.2 2, Type 2242/2260/2280/22110 (Pcie 4.0 ×4 Mode) | 1 |
| M.2 3, Type 2242/2260/2280 (Pcie 4.0 ×4 And Sata 6Gb/S Mode) | 1 |
| Pcie 4.0 ×16 Slots (Pciex16 2 And Pciex16 3), Support ×4 Mode | 2 (Supports NVMe SSD as boot disks) |
| Intel® Socket Lga 1700 For Intel® 13Th And 12Th Generation Processors | Intel® Core™ Processors. Please refer to CPU support list |
| M.2 Socket (Key E), Supports Type 2230 Wi-Fi/Bt Pcie Wi-Fi Module And Intel® Cnvio/Cnvio2 | 1 |
| Warranty | 3 Years |
| Form Factor | ATX |
| Max Memory | 128GB, DDR5 |
