NZXT T120 120mm CPU Air Cooler (White)
MPN NZXT-T120-WHITE · Brand NZXT
The NZXT T120 White CPU air cooler features four Direct Contact copper heat pipes, an F120P 120mm PWM fan (500–1,800 RPM), and broad compatibility with Intel LGA1700/115X/1200 and AMD AM4/AM5 platforms
Inclusive of GST · GST invoice available
Overview

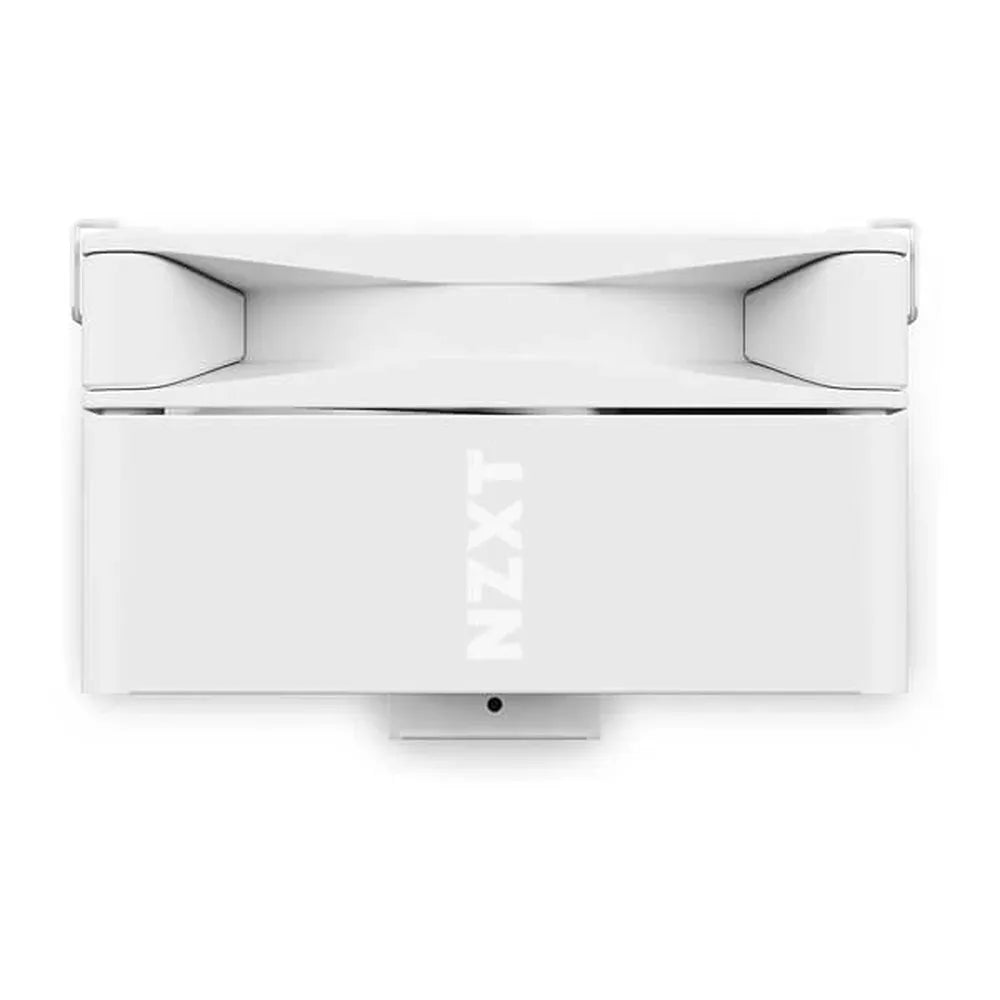

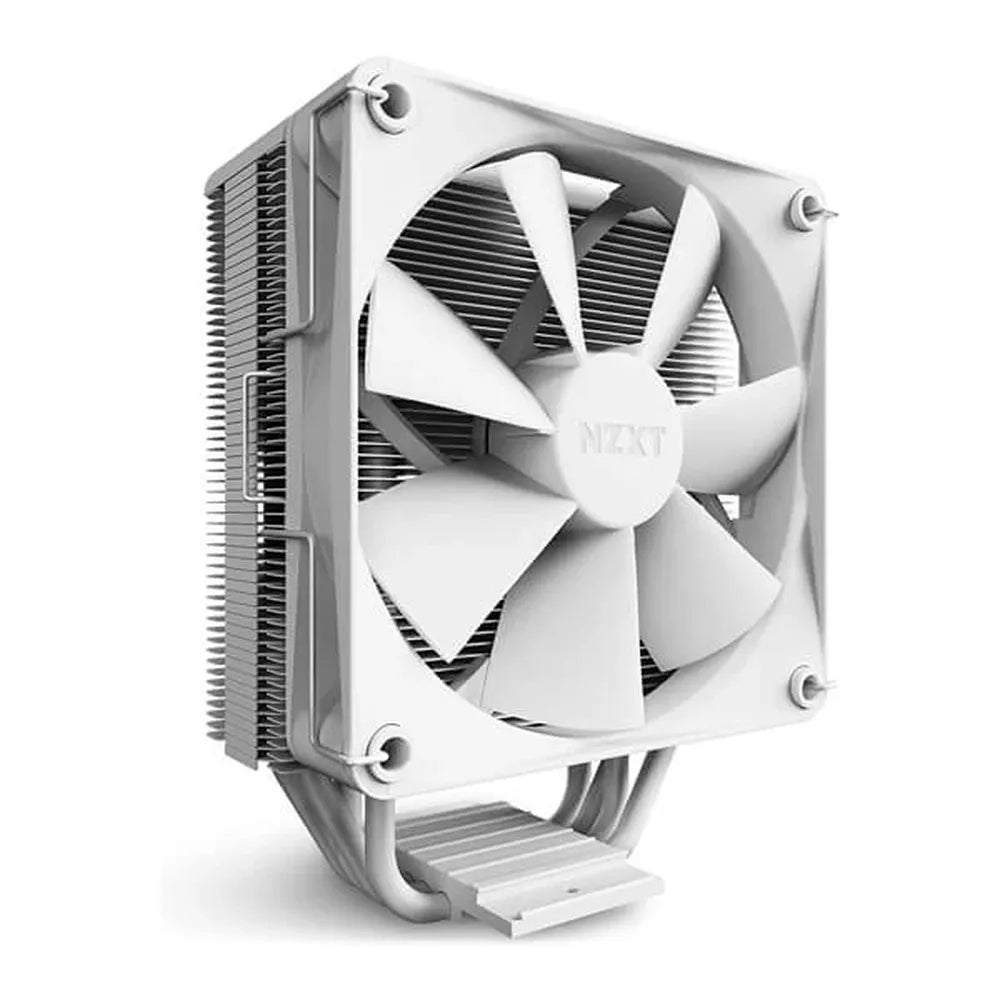

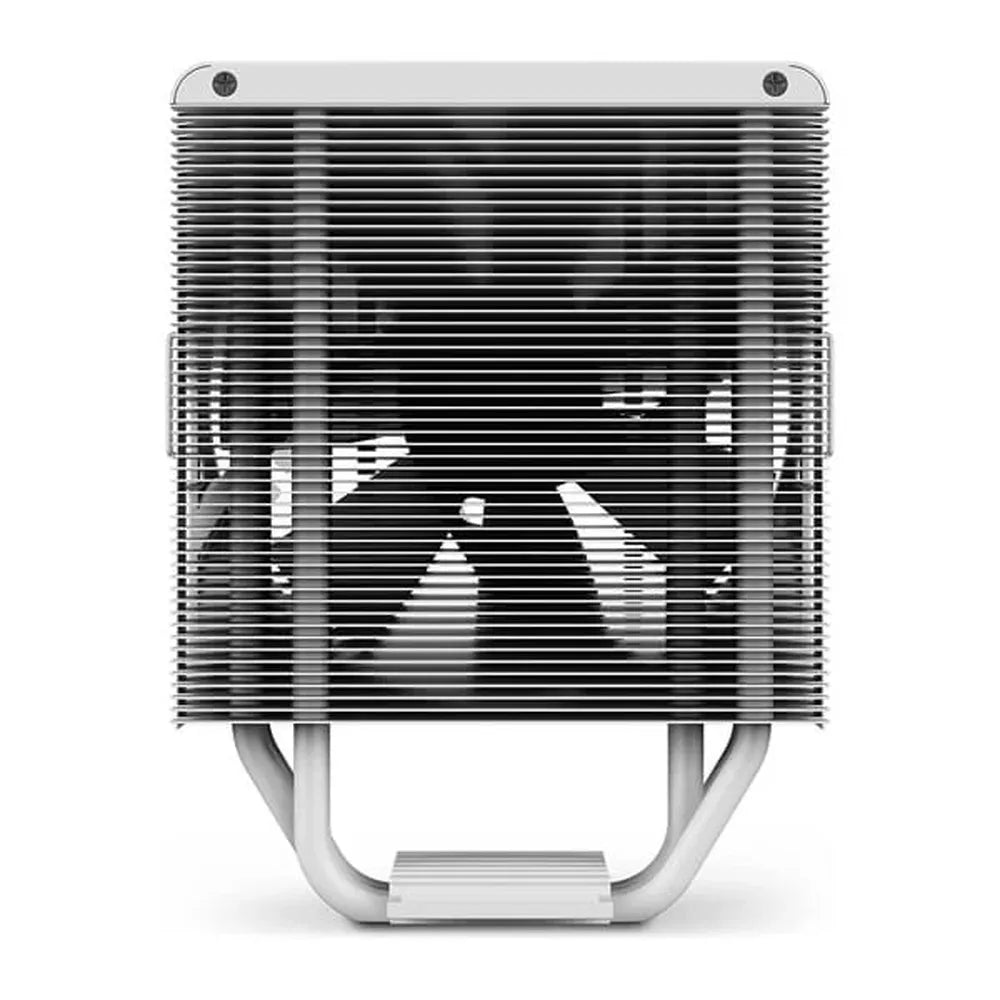

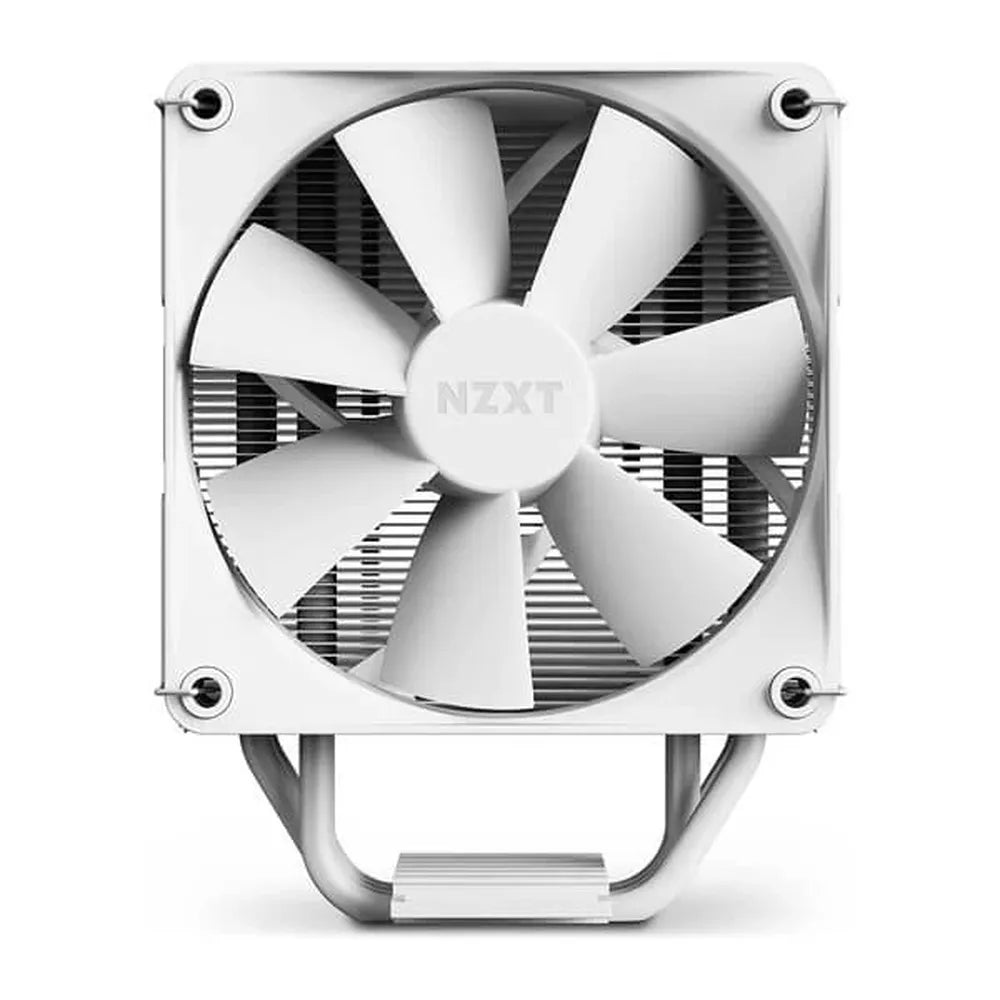

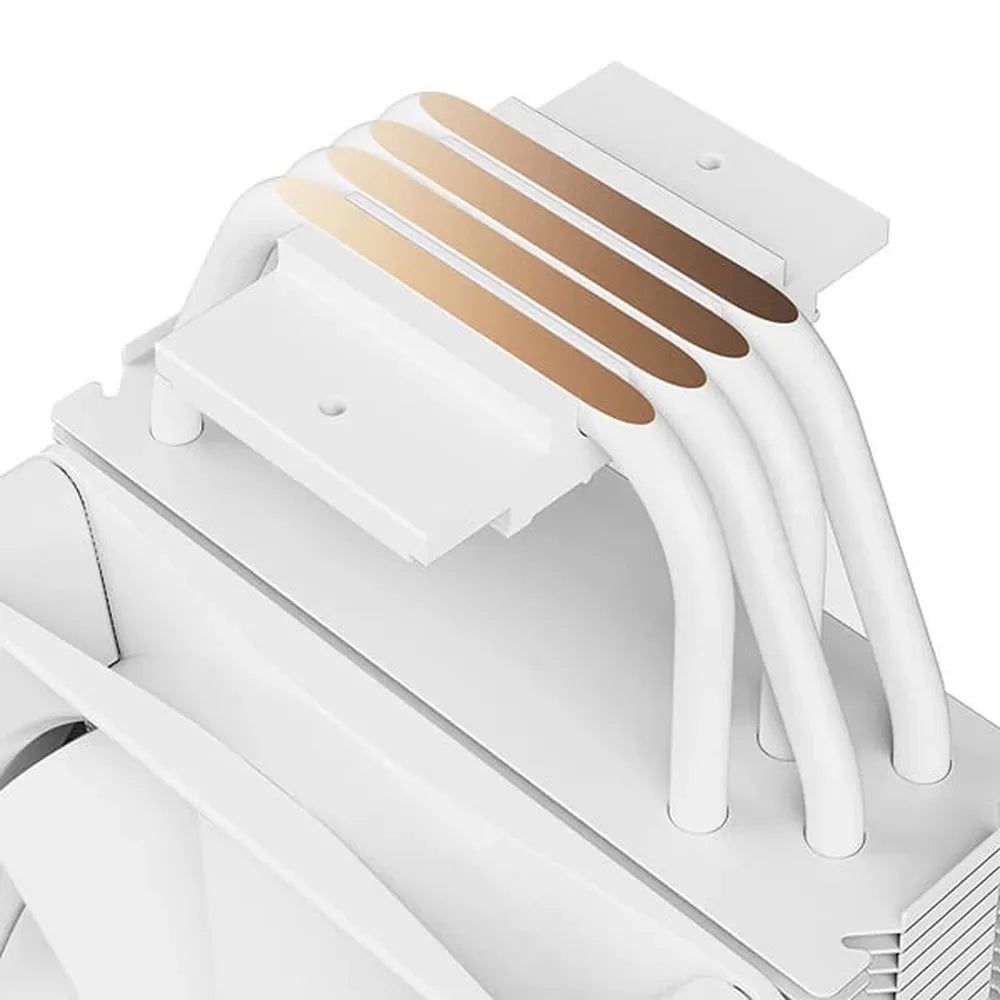

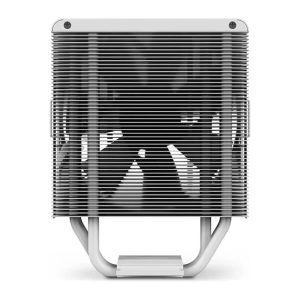

The NZXT T120 120mm CPU Air Cooler in White (model RC-TN120-W1) is a compact, single-tower air cooler designed to deliver reliable thermal performance while maintaining a clean, minimal aesthetic inside your PC build. At the heart of the cooler are four copper heat pipes using Direct Contact technology, which places the heat pipes in direct contact with the CPU integrated heat spreader to maximise thermal transfer efficiency. An aluminum heat pipe cover conceals the copper piping, giving the cooler a tidy, cohesive look that complements white-themed builds. The included NZXT F120P Static Pressure Fan (120 x 120 x 26 mm) operates across a speed range of 500–1,800 RPM (±300 RPM) and moves between 21.67 and 78.02 CFM of airflow while maintaining static pressures of 0.75–2.7 mm-H2O. Noise output ranges from 17.9 to 30.6 dBA, keeping acoustics manageable under typical workloads. The fan uses a Fluid Dynamic Bearing rated for 60,000 hours of service life and connects via a standard 4-pin PWM header, drawing 12V DC at 0.23A (2.76W). The slim radiator profile — measuring 120 mm tall, 66 mm wide, and 159 mm deep — is designed to leave room for an optional push-pull secondary fan, and its low profile helps avoid interference with tall RAM DIMMs or GPU slots in most mid-tower cases. The copper coldplate measures 40 x 35 mm, while the aluminum heatsink fins dissipate heat away from the base efficiently. Compatibility spans Intel sockets LGA1700, 115X, and 1200, as well as AMD AM4 and AM5, covering a wide range of current-generation and recent platforms. The package includes retention brackets and mounting accessories for both Intel and AMD motherboards, plus 1 gram of NZXT High-Performance Thermal Paste to ensure a proper interface between the cooler and CPU from day one. Verified Specifications: — Model: RC-TN120-W1 | Color: White — Cooler Dimensions: 120 mm (H) × 66 mm (W) × 159 mm (D) — Coldplate: Copper, 40 × 35 mm — Heatsink Material: Aluminum — Heat Pipes: 4 × copper, Direct Contact — Fan Model: F120P Static Pressure Fan (120 × 120 × 26 mm) — Fan Speed: 500–1,800 ±300 RPM | Airflow: 21.67–78.02 CFM — Static Pressure: 0.75–2.7 mm-H2O | Noise: 17.9–30.6 dBA — Bearing: Fluid Dynamic | Life: 60,000 hours — Connector: 4-pin PWM | Power: 12V DC, 0.23A, 2.76W — Intel Support: LGA1700, 115X, 1200 | AMD Support: AM4, AM5 — Warranty: 2 Years

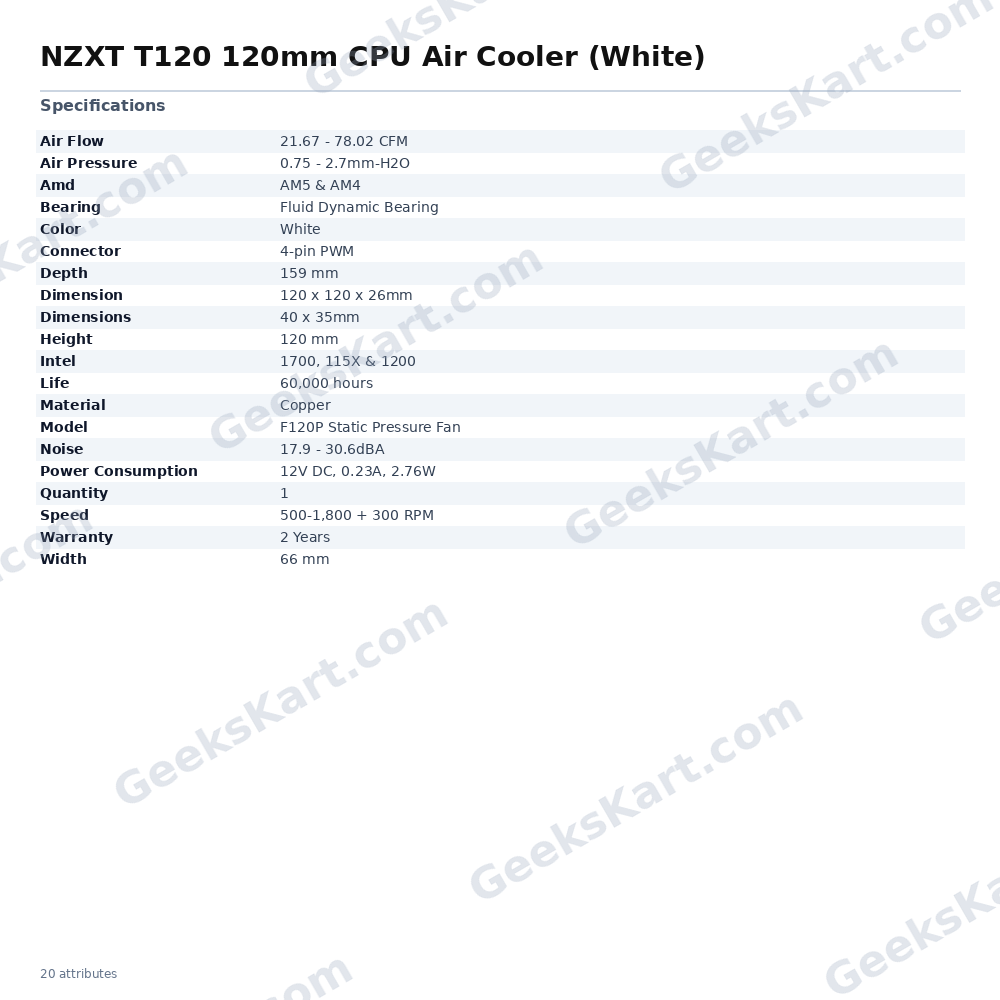

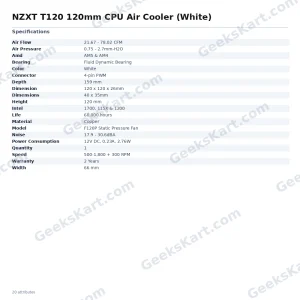

Datasheet
| Warranty | 2 Years |
|---|---|
| color | White |
| Power Consumption | 12V DC, 0.23A, 2.76W |
| Amd | AM5 & AM4 |
| Life | 60,000 hours |
| Depth | 159 mm |
| Intel | 1700, 115X & 1200 |
| Model | F120P Static Pressure Fan |
| Noise | 17.9 – 30.6dBA |
| Speed | 500-1,800 + 300 RPM |
| Width | 66 mm |
| Height | 120 mm |
| Bearing | Fluid Dynamic Bearing |
| Air Flow | 21.67 – 78.02 CFM |
| Material | Copper |
| Quantity | 1 |
| Connector | 4-pin PWM |
| Dimension | 120 x 120 x 26mm |
| Dimensions | 40 x 35mm |
| Air Pressure | 0.75 – 2.7mm-H2O |
