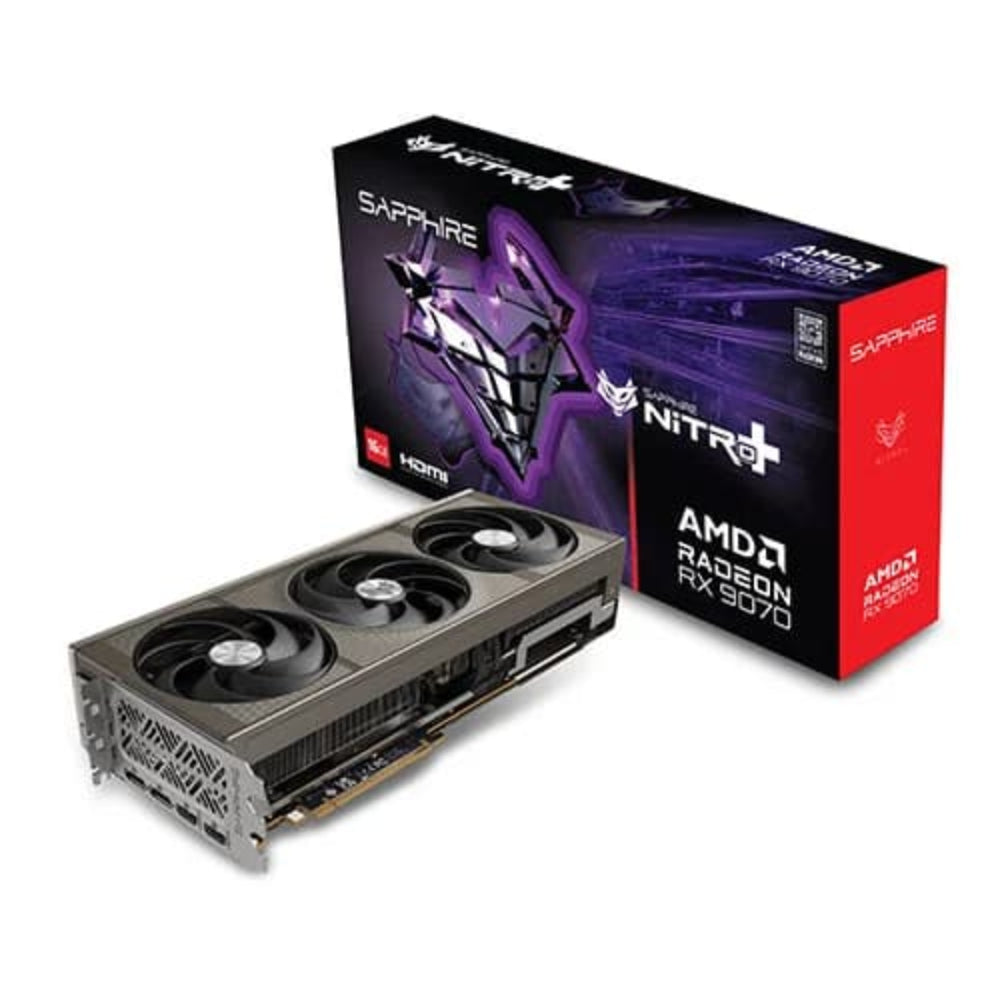

SAPPHIRE Radeon Nitro+ RX 9070 OC 16GB AMD Graphic Card

The Sapphire Radeon Nitro+ RX 9070 OC (product code 11349-01-20G) is a factory-overclocked graphics card built on AMD’s RDNA 4 architecture. It features 3,584 stream processors across 56 compute units equipped with third-generation ray accelerators and second-generation AI accelerators, making it suited for both high-fidelity gaming and accelerated creative workloads. With a boost clock of up to 2,700 MHz and a game clock of up to 2,210 MHz, the card is rated for 4K gaming and supports up to four simultaneous displays via two HDMI and two DisplayPort 2.1a outputs — each capable of driving resolutions up to 7,680×4,320. Sapphire’s Tri-X cooling solution combines three AeroCurve fan blades with an Integrated Cooling Module, optimised composite heatpipes, and a Free Flow heatsink fin arrangement to manage the card’s 245 W typical board power. The fans use dual-ball bearings and attach via a quick-connect mechanism, allowing individual fan replacement without returning the full card. Honeywell PTM7950 phase-change thermal interface material is used between the die and heatsink to aid heat transfer. The structural package includes a cold-rolled steel FrameDefense frame, an all-metal magnetic backplate (Quick Connect MagniPlate), and an L-shape GPU support bracket to prevent PCIe slot sag. Power delivery runs through a premium 14-phase digital design with built-in fuse protection on the external PCIe power connector; the card uses a 12V-2×6 (H++) connector and a 3×8-pin adapter is included in the box. An ARGB light bar with 3-pin 5V header enables motherboard RGB synchronisation via TriXX software. Verified Specifications: • GPU: AMD Radeon RX 9070, RDNA 4 architecture • Stream processors: 3,584 | Compute units: 56 • Ray accelerators: 56 | AI accelerators: 112 • Boost clock: up to 2,700 MHz | Game clock: up to 2,210 MHz • Memory: 16 GB GDDR6, 256-bit bus, 20 Gbps effective • Infinity Cache: 64 MB • Interface: PCIe 5.0 x16 • Outputs: 2× HDMI, 2× DisplayPort 2.1a (max 7680×4320) • Typical board power: 245 W | Recommended PSU: 650 W minimum • Dimensions: 330.8 mm (L) × 128.5 mm (W) × 65.68 mm (H) — 3.2-slot ATX • OS support: Windows 10/11 64-bit, Linux • Warranty: 3 years • Bundled accessories: L-shape support bracket, 3-pin 5V ARGB cable, magnetic backplate, 12V-2×6 to 3×8-pin power adapter Software support includes AMD Adrenalin Edition, HYPR-RX with AFMF 2, FSR 4 with AI upscaling, AMD Fluid Motion Frames 2, Anti-Lag 2, Noise Suppression, FreeSync, and AV1 encode/decode. The card is configurable through Sapphire TriXX, which provides performance/efficiency quicksets, fan control, TriXX Boost, and RGB management
