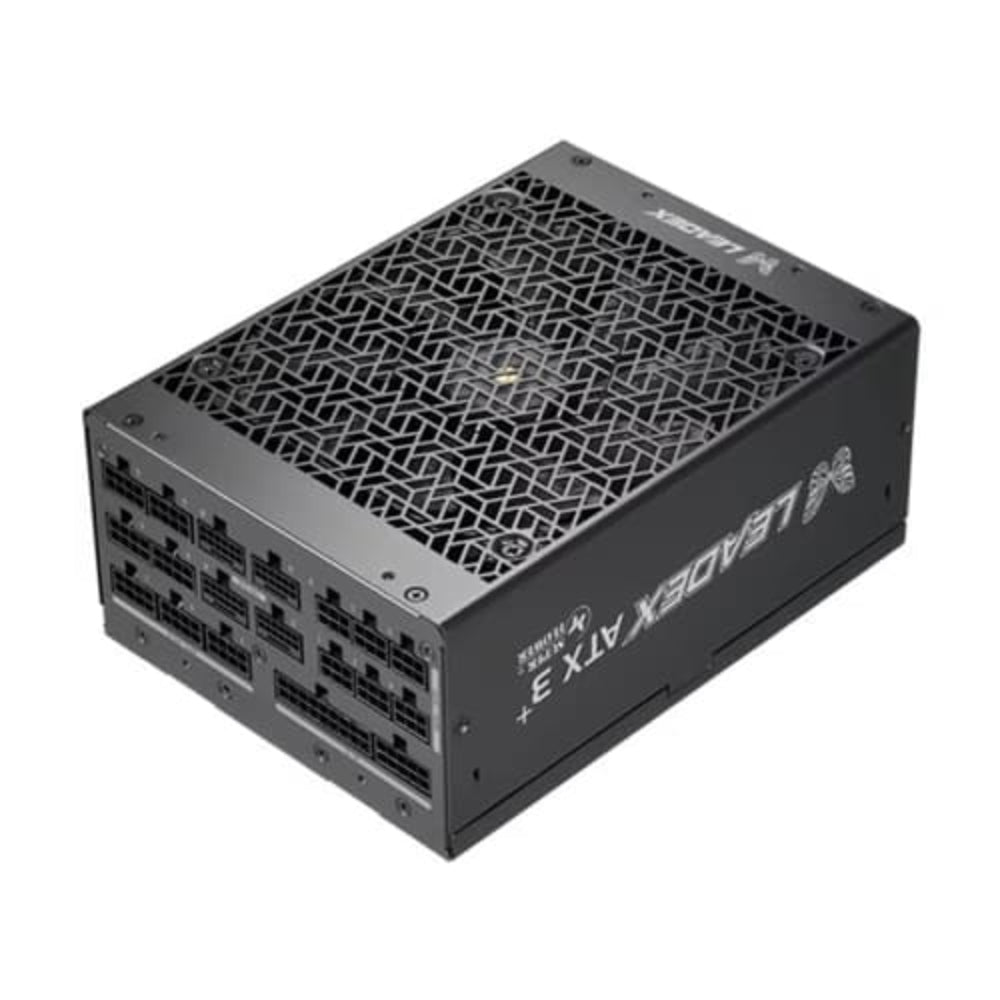

SUPER FLOWER Leadex 2800W 80+ Titanium ATX 3.1 Fully Modular Power Supply ( 2800W )

The Super Flower Leadex 2800W 80+ Titanium (model SF-2800F14HP) is a fully modular, ultra-high-capacity power supply engineered for demanding workstation and enthusiast gaming builds that push power requirements to the extreme. Sitting at the top of the Leadex Titanium series, this unit delivers 2,800 watts of continuous output while maintaining elite-tier efficiency across its operating range. Efficiency and certification are central to the Leadex 2800W's identity. It carries both the 80 Plus Titanium certification and Cybenetics Titanium 230V input certification, indicating overall efficiency of 93% or greater and up to less than 95% under specified load conditions. These dual certifications mean less energy is wasted as heat, keeping your system cooler and your electricity costs lower during extended sessions. The unit complies with ATX 12V v2.32, EPS 12V v2.92, and the current ATX 3.1 specification, as well as Energy Star and EuP (Energy Using Products) regulations. ATX 3.1 compliance ensures full compatibility with the latest PCIe power standards, including the 12V-2x6 connector required by NVIDIA GeForce RTX 50 series and AMD Radeon 9000 series graphics cards. Six PCIe (6+2)-pin connectors provide flexible multi-GPU or multi-device cabling options. A 100% fully modular cabling design simplifies cable management, allowing you to connect only the cables your system requires and minimise airflow restriction inside the chassis. Internally, the unit employs a Bridgeless PFC and Full-Bridge LLC Resonant Circuit design alongside Active PFC on a single 230V input voltage rail. Japanese capacitors are used throughout, and Super Flower has implemented a 3-phase 12-pole motor fan — a distinctive thermal management choice — with a copper-shaft bearing for enhanced stability, heat dissipation, and longevity. Protection coverage is comprehensive: Over Voltage, Over Current, Over Power, Short Circuit, Under Voltage, Over Temperature, Low Voltage, No-Load Operation, and Surge and Inrush Protection are all built in, safeguarding your components against electrical anomalies. The chassis and components comply with RoHS and WEEE regulations, reflecting an unleaded, environmentally conscious build. Verified Specifications: - Model: SF-2800F14HP - Series: Leadex Titanium - Wattage: 2,800 W - Efficiency Certification: 80 Plus Titanium; Cybenetics Titanium 230V (≥93% to <95%) - Standard Compliance: ATX 12V v2.32, EPS 12V v2.92, ATX 3.1 - Modular: Fully Modular - PCIe Connectors (6+2): 6 - SATA Connectors: 4 - Peripheral (4-Pin) Connectors: 1 - Input Voltage: 230V (single voltage, Active PFC) - Warranty: 10 Years
