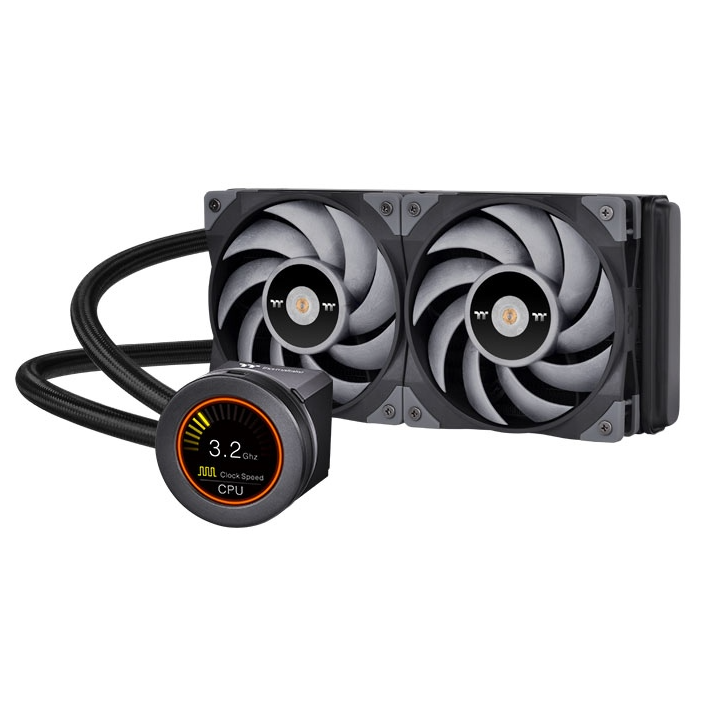

THERMALTAKE Tough Liquid Ultra 240 240mm CPU Liquid Cooler (Black)

The Thermaltake ToughLiquid Ultra 240 is a 240mm all-in-one liquid CPU cooler designed for enthusiast desktop builds that demand both thermal performance and visual customisation. At the heart of its design sits a 2.1-inch TFT-LCD rotational display running at 480x480 pixel resolution, capable of showing real-time system monitoring data as well as user-uploaded JPG and GIF files — all managed through the TT RGB Plus 2.0 software suite. Cooling is handled by two TOUGHFAN 12 Turbo fans, each measuring 120 x 120 x 25 mm and spinning across a PWM-controlled range of 500 to 2500 RPM via a 4-pin connector. Each fan delivers a maximum air flow of 72.69 CFM and a static pressure of 3.78 mm-H2O, with a rated noise level of 28.1 dB-A at peak speed. The dual-fan array pushes air through an aluminium radiator measuring 273 x 120 x 27 mm. The pump operates at a motor speed of 3200 RPM, drawing 4.56 W at 12 V (0.38 A), ensuring consistent coolant circulation through 400 mm rubber tubing to a copper water block cold plate. The copper base material accelerates heat transfer away from the CPU lid, while the closed-loop low-evaporation tube design means no coolant refills are required during normal use. The LCD display module runs on a dedicated 5 V rail drawing 11.5 W and connects to the motherboard via a Micro USB to USB 9-pin header interface. Software control requires a Windows 7, 8, 8.1, or 10 environment running TT RGB Plus 2.0 — the only supported application for this product series. TT RGB Plus products also integrate with the Razer Chroma ecosystem via Razer Synapse 3 and support Amazon Alexa voice commands through TT AI Voice Control. Verified Specifications: • Part Number: CL-W322-PL12GM-A • Radiator: 273 x 120 x 27 mm, Aluminium • Fan: 120 x 120 x 25 mm, PWM 500–2500 RPM, 72.69 CFM, 3.78 mm-H2O, 28.1 dB-A (per fan) • Pump: 3200 RPM, 12 V, 0.38 A, 4.56 W • LCD Display: 2.1-inch TFT-LCD, 480x480 px, 5 V, 11.5 W • Tubing: 400 mm Rubber • Water Block: Copper • CPU Compatibility (Intel): LGA 2066, 2011-3, 2011, 1366, 1200, 1156, 1155, 1151, 1150 • CPU Compatibility (AMD): AM4, AM3+, AM3, AM2+, AM2, FM2, FM1
