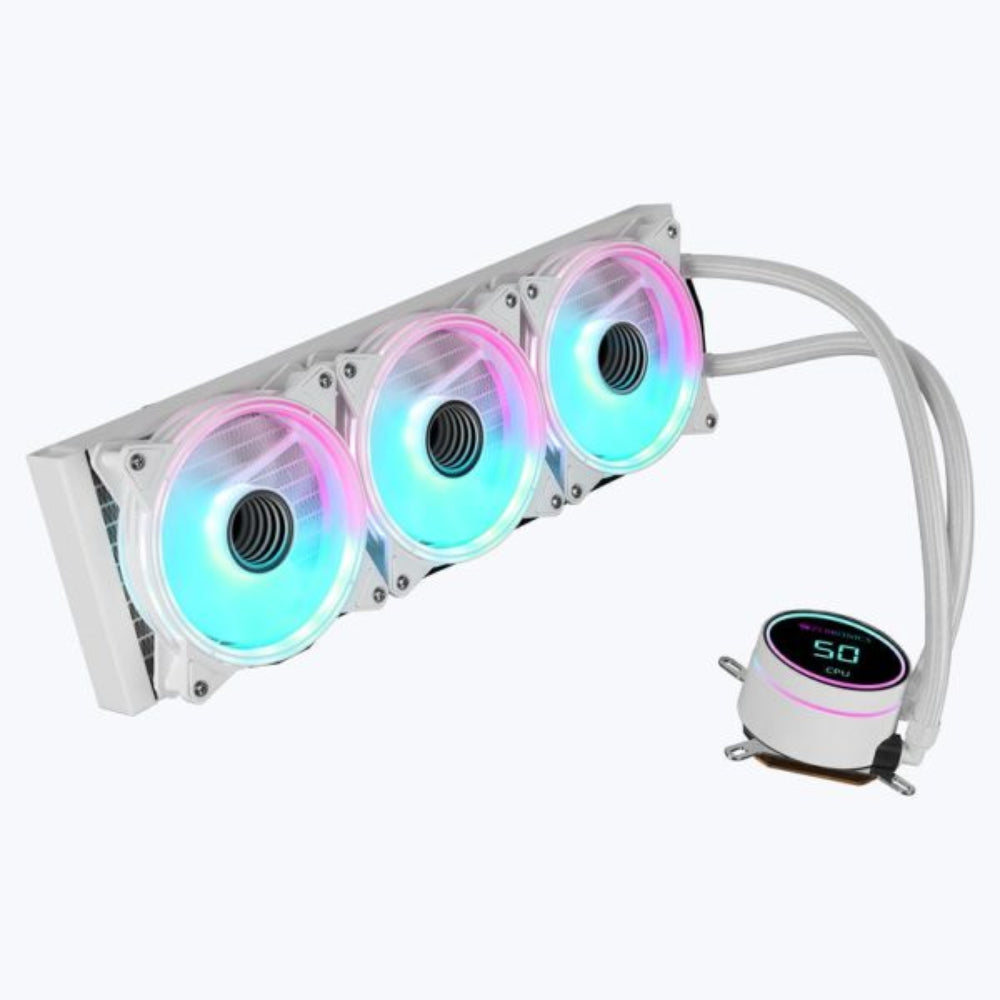

ZEBRONICS ZEB AIO360TW ARGB 360mmCPU Liquid Cooler ( White )
MPN ZEBRONICS-ZEB-AIO-360TW-ARGB-LIQUID-COOLER-WHITE · Brand Zebronics · 360mm
The Zebronics ZEB AIO360TW is a 360mm ARGB all-in-one CPU liquid cooler in white, featuring three 120mm fans (67.96 CFM, up to 1,800 RPM) and broad Intel/AMD socket support including LGA 1700 and AM5
Inclusive of GST · GST invoice available
Overview
The Zebronics ZEB AIO360TW is a 360mm all-in-one CPU liquid cooler finished in white, designed for builders who want capable thermal management with addressable RGB lighting. It ships with three 120mm fans that together deliver up to 67.96 CFM of airflow while spinning at a maximum of 1,800 RPM. Fan noise is rated between 15 and 35 dB, keeping acoustics manageable under varied workloads. The pump head features an ARGB-lit CPU block and connects via a 3-pin LED connector, making it compatible with motherboards that support ARGB sync. Lighting and fan speed can also be adjusted through the bundled Windows software. The pump itself spins at up to 2,500 RPM and produces no more than 30 dB of noise at peak speed. Tubing is constructed from braided rubber, measuring 38 cm in length and 1.2 cm in diameter — a specification that offers reasonable flexibility during installation. The radiator is built from aluminium and measures 39.5 × 12 × 2.7 cm, accommodating a standard 360mm three-fan mounting configuration. The aluminium cold plate and heat-transfer components are similarly stated to be aluminium construction. Compatibility spans a wide range of modern and legacy sockets. Intel support covers LGA 115X, 1200, 1366, 1700, 2011, and 2066, while AMD support extends from legacy FM1/FM2/AM2 through to the current AM4 and AM5 platforms. Both a dedicated AMD bracket and an Intel backplate are included in the box, alongside five screw sets, thermal paste with a spreader, and a QR-code quick-start guide. Verified Specifications: - Radiator size: 360mm (3 × 120mm fans) - Fan airflow: 67.96 CFM | Fan max speed: 1,800 RPM - Fan noise: 15–35 dB | Pump noise: 30 dB - Pump max speed: 2,500 RPM | Pump power: 3.6 W - Fan power: 2.16 W | Rated voltage: 12 V / 0.3 A - Power connector (fan): 4-pin | LED connector: 3-pin ARGB - Tube: braided rubber, 38 cm length, 1.2 cm diameter - Radiator dimensions: 39.5 × 12 × 2.7 cm - Pump head dimensions: 9.5 × 9 × 5.2 cm - Fan dimensions: 12 × 12 × 2.5 cm - MTBF (fan & pump): 30,000 hours each - Net weight: 1.4 kg - Colour: White - Country of origin: PRC

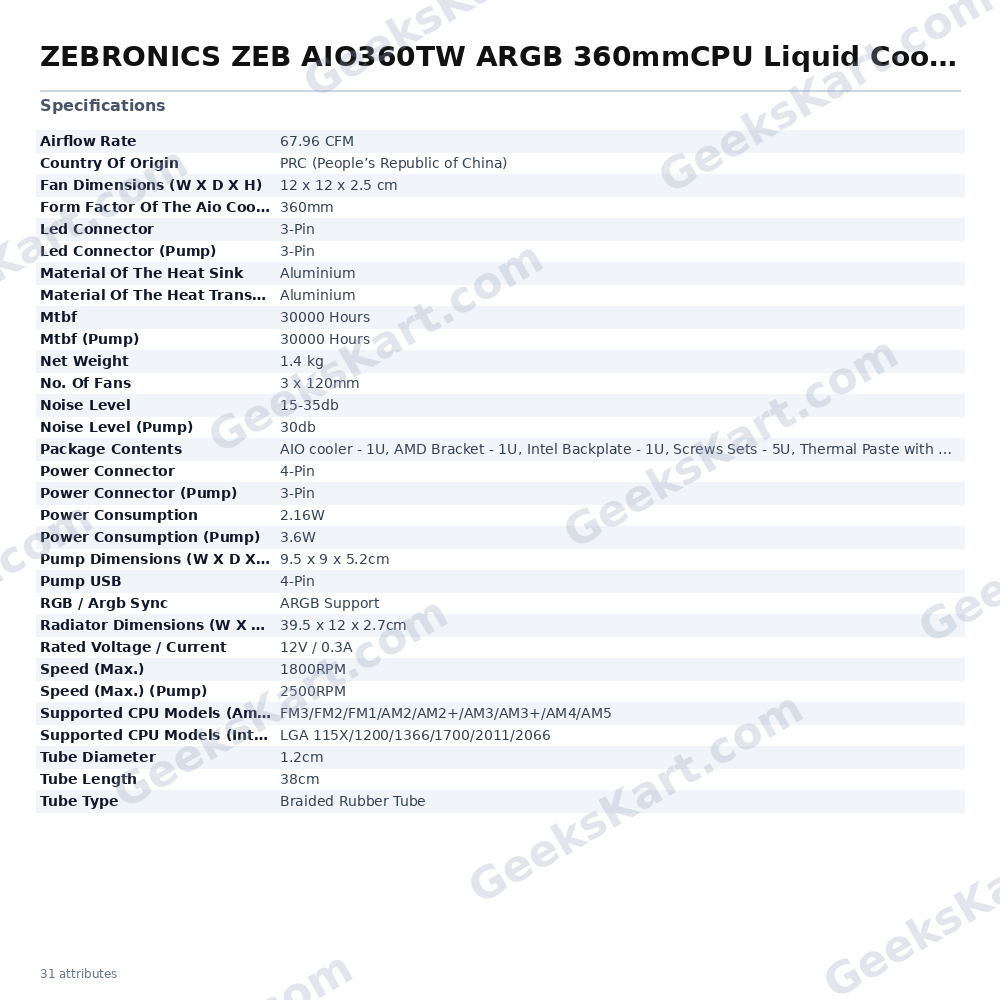

Datasheet
| Power Consumption | 2.16W |
|---|---|
| Mtbf | 30000 Hours |
| Pump USB | 4-Pin |
| Tube Type | Braided Rubber Tube |
| Net Weight | 1.4 kg |
| Mtbf (Pump) | 30000 Hours |
| No. Of Fans | 3 x 120mm |
| Noise Level | 15-35db |
| Tube Length | 38cm |
| Airflow Rate | 67.96 CFM |
| Speed (Max.) | 1800RPM |
| Led Connector | 3-Pin |
| Tube Diameter | 1.2cm |
| Power Connector | 4-Pin |
| RGB / Argb Sync | ARGB Support |
| Package Contents | AIO cooler – 1U, AMD Bracket – 1U, Intel Backplate – 1U, Screws Sets – 5U, Thermal Paste with Spreader – 1U, QR Code Guide – 1U |
| Country Of Origin | PRC (People’s Republic of China) |
| Noise Level (Pump) | 30db |
| Speed (Max.) (Pump) | 2500RPM |
| Led Connector (Pump) | 3-Pin |
| Power Connector (Pump) | 3-Pin |
| Rated Voltage / Current | 12V / 0.3A |
| Power Consumption (Pump) | 3.6W |
| Material Of The Heat Sink | Aluminium |
| Fan Dimensions (W X D X H) | 12 x 12 x 2.5 cm |
| Supported CPU Models (Amd) | FM3/FM2/FM1/AM2/AM2+/AM3/AM3+/AM4/AM5 |
| Pump Dimensions (W X D X H) | 9.5 x 9 x 5.2cm |
| Supported CPU Models (Intel) | LGA 115X/1200/1366/1700/2011/2066 |
| Form Factor Of The Aio Cooler | 360mm |
| Radiator Dimensions (W X D X H) | 39.5 x 12 x 2.7cm |
| Material Of The Heat Transfer Pipe | Aluminium |
