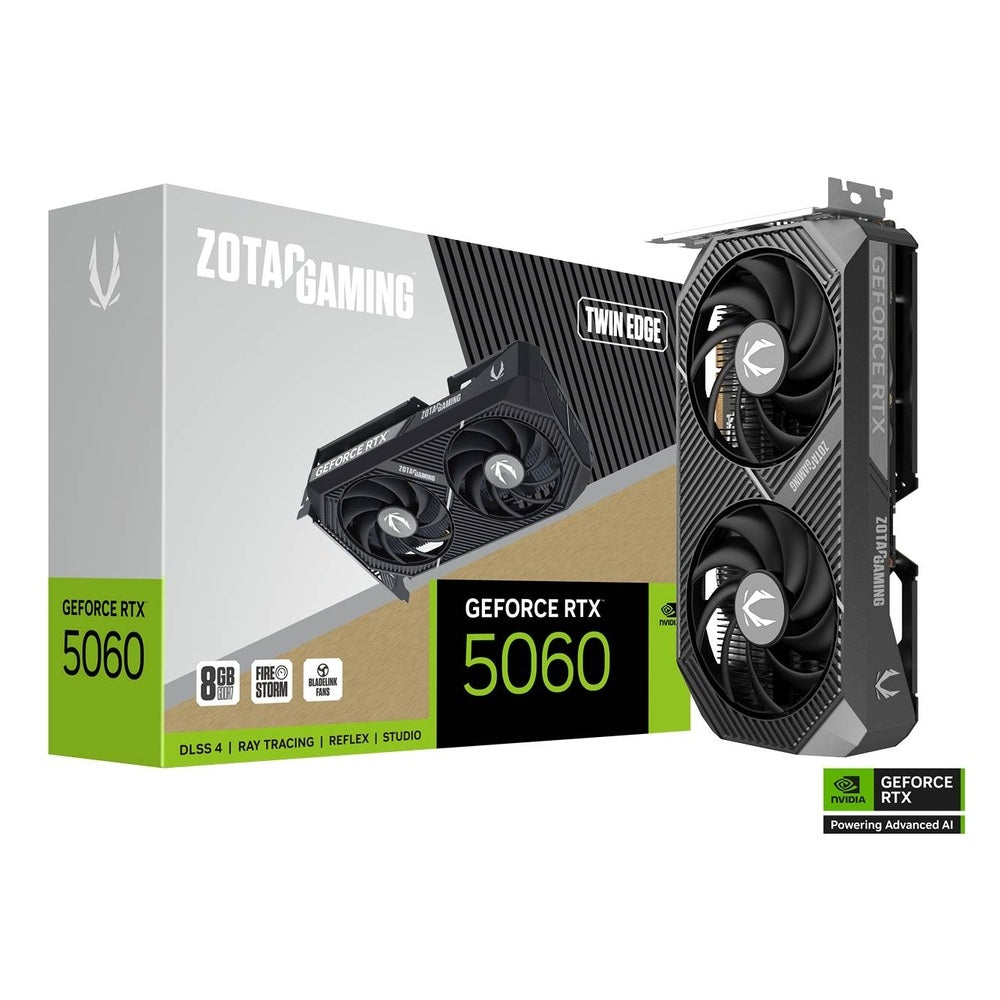

ZOTAC Gaming GeForce RTX 5060 Twin Edge 8GB Nvidia Graphic Card

The ZOTAC Gaming GeForce RTX 5060 Twin Edge 8GB is a compact, dual-slot graphics card built on NVIDIA’s Blackwell architecture. It is designed for gamers and creators who want capable RTX-class performance in a small form factor, measuring just 220.5 mm × 120.25 mm × 41.6 mm — well within the reach of most mid-tower and SFF cases. At its core, the card runs 3840 CUDA Cores paired with 8 GB of GDDR7 memory on a 128-bit bus clocked at 28 Gbps. The GPU engine operates at up to 2497 MHz, while a rated TDP of 145 W means the card draws power through a single 8-pin PCIe connector and only requires a 550 W power supply — lowering the barrier to an upgrade for many existing system owners. NVIDIA DLSS 4 leverages fifth-generation Tensor Cores to deliver Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution, allowing games to run at higher effective frame rates without sacrificing image quality. Full ray tracing is accelerated by fourth-generation RT Cores built into the Blackwell architecture. NVIDIA Reflex 2 further reduces system latency through Frame Warp technology, which aligns rendered frames with the very latest mouse input — a meaningful advantage in fast-paced competitive titles. Display connectivity is handled by three DisplayPort 2.1b outputs (UHBR20, supporting up to 4K 480 Hz or 8K 165 Hz with DSC) and one HDMI 2.1b port (supporting 4K 480 Hz HDR or 8K 120 Hz HDR with DSC), enabling up to four simultaneous displays. HDCP 2.3 is supported. The card connects via PCIe 5.0 x8 and is fully compatible with Windows 10 64-bit (version 1809 or later) and Windows 11. A metal backplate reinforces the PCB and improves rigidity during transport and installation. Cooling is handled by a dual-fan air cooler in a clean, non-RGB aesthetic. ZOTAC’s FireStorm utility provides monitoring and tuning controls including clock speeds, memory frequencies, voltage, fan speed, fan curve adjustments, and SPECTRA RGB lighting management where applicable. The card ships with a user manual and carries a 3-year warranty. Model number: ZT-B50600E-10M. Key Specifications: • GPU: NVIDIA GeForce RTX 5060 (Blackwell) • CUDA Cores: 3840 • Video Memory: 8 GB GDDR7 • Memory Bus: 128-bit • Memory Clock: 28 Gbps • Engine Clock: up to 2497 MHz • TDP: 145 W • Power Connector: 1 × 8-pin PCIe • Recommended PSU: 550 W • Interface: PCIe 5.0 x8 • Display Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b • Max Displays: 4 • Slot Width: 2 • Card Dimensions: 220.5 mm × 120.25 mm × 41.6 mm • DirectX: 12 Ultimate | OpenGL: 4.6 | HDCP: 2.3 • OS Support: Windows 10 64-bit (v1809+), Windows 11 • Warranty: 3 Years
