ASROCK A620M Pro RS Wifi DDR5 AMD Motherboard

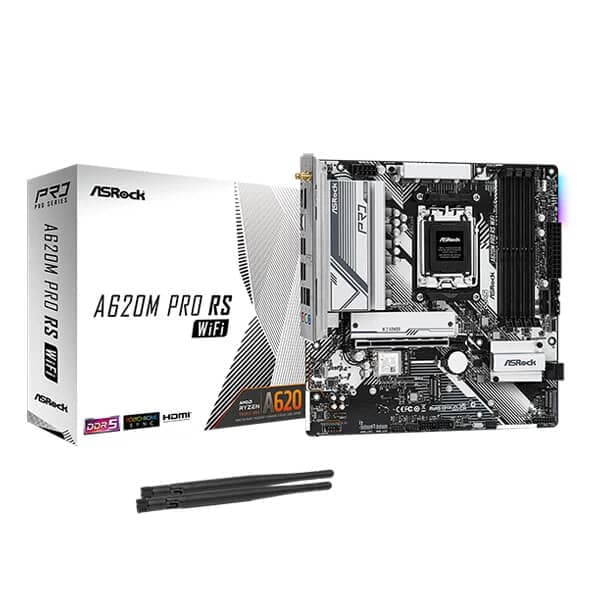

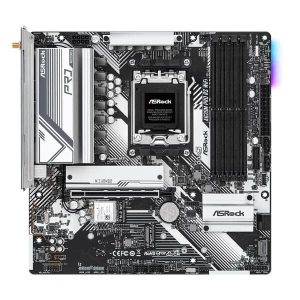

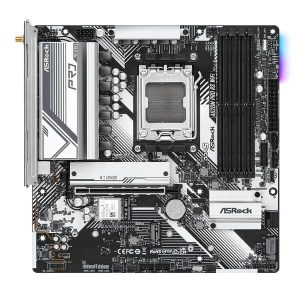

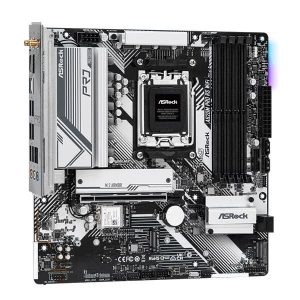

The ASRock A620M Pro RS WiFi is a Micro ATX motherboard built on the AMD A620 chipset, designed for AMD Socket AM5 Ryzen 7000 series processors. Its compact 9.6-inch × 9.6-inch form factor suits space-conscious builds without sacrificing connectivity or expandability. The board features a 6+2+1 power phase design with 50A Dr.MOS components rated for up to 120W CPU TDP, providing stable power delivery for Ryzen 7000 processors under sustained workloads. A six-layer PCB construction supports lower signal noise and improved thermal efficiency compared to standard four-layer designs. Memory support is handled by four DDR5 DIMM slots in dual-channel configuration, capable of holding up to 192 GB of non-ECC unbuffered DDR5 RAM. Speeds are supported up to DDR5-6000+ MHz via overclocking, with compatibility for both XMP and EXPO memory profiles. Storage options are generous for this segment: two CPU-connected Hyper M.2 slots (M2_1 and M2_2) each support PCIe Gen4×4 at up to 64 Gb/s, while a third chipset-connected M.2 slot (M2_3) runs at PCIe Gen3×2 (16 Gb/s). Four SATA3 ports at 6.0 Gb/s are also available, with RAID 0, 1, and 10 support across both SATA and NVMe storage. The single PCIe 4.0 ×16 slot accommodates discrete graphics cards, and the slot features a 15μ gold contact finish. For systems using integrated graphics, HDMI 2.1 (up to 4K 120Hz, HDR, HDCP 2.3) and DisplayPort 1.4 with DSC (up to 4K 120Hz, HDCP 2.3) are available on the rear panel. Wireless connectivity is handled by an 802.11ax Wi-Fi 6E module supporting the 2.4 GHz, 5 GHz, and 6 GHz bands with 2×2 MU-MIMO and Bluetooth 5.2. Wired networking is provided by a Realtek 8111H Gigabit LAN controller. Two external antenna ports are included on the rear I/O. USB connectivity totals 15 ports: 2× USB 3.2 Gen1 Type-C (1 rear, 1 front header), 5× USB 3.2 Gen1 Type-A (3 rear, 2 front), and 8× USB 2.0 (4 rear, 4 front). Audio is managed by a Realtek ALC897 codec with 7.1-channel HD output and Nahimic Audio software. RGB and ARGB lighting is supported via one 12V RGB header and three 5V addressable RGB headers, compatible with ASRock Polychrome SYNC. Fan headers include one CPU fan, one CPU/water pump fan, and three chassis/water pump fan connectors, all 4-pin with Smart Fan Speed Control. The board ships with BIOS Flashback support for updating firmware without a CPU installed, and includes ASRock Auto Driver Installer and Instant Flash utilities. It is certified FCC and CE, and is ErP/EuP ready. Key Specifications: - Socket: AMD AM5 | Chipset: AMD A620 - Form Factor: Micro ATX (9.6 in × 9.6 in / 24.4 cm × 24.4 cm) - Memory: 4× DDR5 DIMM, dual channel, up to 192 GB, DDR5-6000+ (OC), XMP/EXPO support - PCIe: 1× PCIe 4.0 ×16 - M.2: 2× PCIe Gen4×4 (CPU), 1× PCIe Gen3×2 (Chipset) - SATA: 4× SATA3 6.0 Gb/s | RAID: 0/1/10 - Display: HDMI 2.1 (4K 120Hz), DisplayPort 1.4 (4K 120Hz) - Audio: Realtek ALC897 7.1 CH HD + Nahimic Audio - LAN: Realtek 8111H Gigabit | Wi-Fi: 802.11ax Wi-Fi 6E + Bluetooth 5.2 - USB: 2× USB 3.2 Gen1 Type-C, 5× USB 3.2 Gen1 Type-A, 8× USB 2.0 - BIOS: 256 Mb AMI UEFI | OS: Windows 10/11 64-bit - Warranty: 3 Years
