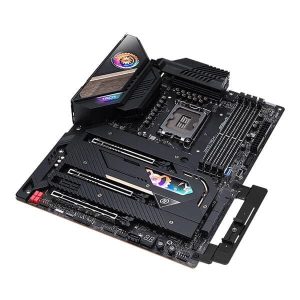

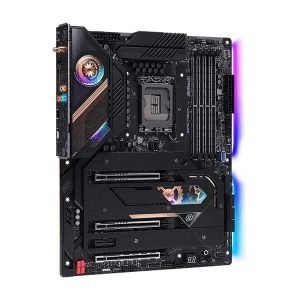

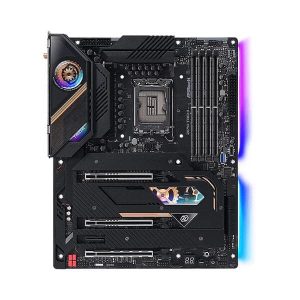

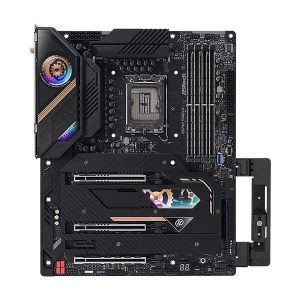

ASROCK Z690 Taichi Wifi DDR5 Intel Motherboard
MPN ASROCK-Z690-TAICHI-WIFI-DDR5 · Brand ASROCK · ATX
The ASRock Z690 Taichi WiFi DDR5 is an ATX motherboard for 12th Gen Intel LGA1700 processors, featuring a 20-phase Dr.MOS power design, PCIe 5.0 x16, DDR5 up to 6400+ MHz (OC), dual Thunderbolt 4 ports, and Killer Wi-Fi 6E networking
Inclusive of GST · GST invoice available
Overview
The ASRock Z690 Taichi WiFi DDR5 is a full-size ATX motherboard built around Intel's Z690 chipset, designed to support 12th Generation Intel Core processors in the LGA1700 socket. Its 20-phase Smart Power Stage (SPS) Dr.MOS power delivery system uses 105A power stages alongside Premium Memory Alloy Chokes and Nichicon 12K Black Caps to supply stable, regulated power to the CPU — a configuration suited to sustained performance workloads and overclocking sessions alike. Memory support is handled via four DDR5 DIMM slots capable of holding up to 128 GB of non-ECC unbuffered DDR5 RAM. Native speeds reach DDR5-4400 in single-DIMM-per-channel configuration, with overclocked profiles supported up to DDR5-6400+. Intel XMP 3.0 profiles are recognised, simplifying memory tuning within the UEFI. Expansion flexibility is a clear strength. Two CPU-direct PCIe 5.0 x16 slots (operable in x16 or x8/x8 mode) sit alongside a chipset-connected PCIe 4.0 x16 slot (x4 electrical) and a PCIe 3.0 x1 slot. Storage is equally well-provisioned: two Hyper M.2 sockets with PCIe Gen 4 x4 bandwidth (64 Gb/s each), one M.2 supporting both SATA3 and PCIe Gen 3 x2, six standard SATA3 ports, and one independent SATA3 port. RAID 0, 1, 5, and 10 are supported across SATA devices; RAID 0, 1, and 5 across M.2 NVMe. Connectivity stands out with dual rear USB4/Thunderbolt 4 Type-C ports running at 40 Gb/s, two USB 3.2 Gen2 Type-A rear ports, four USB 3.2 Gen1 Type-A rear ports, and a front-panel USB 3.2 Gen2x2 Type-C header (20 Gb/s). Networking combines a Killer E3100G 2.5 Gigabit Ethernet controller, an Intel I219V Gigabit LAN port, and a Killer AX1675 Wi-Fi 6E module (802.11ax, 2×2 160 MHz, 2.4/5/6 GHz) with Bluetooth. Killer DoubleShot Pro allows simultaneous use of wired and wireless connections with intelligent traffic prioritisation. Audio is managed by a Realtek ALC1220 codec delivering 7.1-channel HD audio with Content Protection, paired with an ESS SABRE9218 DAC on the front-panel output (130 dB SNR) and WIMA audio capacitors. Nahimic Audio software support is included. Graphics outputs consist of one HDMI 2.1 port (up to 4K/60 Hz) and two Thunderbolt 4 Type-C ports (up to 8K/60 Hz with a compatible iGPU-equipped processor), supporting triple-monitor configurations. The board ships in ATX form factor (30.5 cm × 24.4 cm) with an 8-layer, 2 oz copper PCB. A 3-year manufacturer warranty is included. Verifiable Specifications: - Socket: LGA1700 | Chipset: Intel Z690 - Memory: 4× DDR5, max 128 GB, up to DDR5-6400+ (OC), XMP 3.0 - PCIe: 2× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x16 (chipset, x4), 1× PCIe 3.0 x1 - Storage: 2× Hyper M.2 PCIe Gen4 x4, 1× M.2 PCIe Gen3 x2/SATA3, 6× SATA3, 1× independent SATA3 - USB rear: 2× USB4/TB4 Type-C (40 Gb/s), 2× USB 3.2 Gen2 Type-A (10 Gb/s), 4× USB 3.2 Gen1 Type-A - LAN: Killer E3100G 2.5 GbE + Intel I219V 1 GbE - Wireless: Killer AX1675 Wi-Fi 6E (802.11ax) + Bluetooth - Audio: Realtek ALC1220 + ESS SABRE9218 DAC (130 dB SNR) - Form Factor: ATX, 30.5 cm × 24.4 cm | PCB: 8-layer, 2 oz copper - OS: Windows 10 64-bit / Windows 11 64-bit - Certifications: FCC, CE, ErP/EuP, CEC Tier II - Warranty: 3 Years

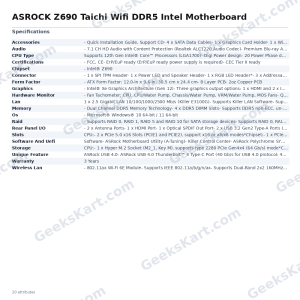

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | – Intel® Z690 |
| CPU Type | Supports 12th Gen Intel® CoreTM Processors (LGA1700)- Digi Power design- 20 Power Phase design- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology- Supports ASRock Hyper BCLK Engine V |
| Os | – Microsoft® Windows® 10 64-bit / 11 64-bit |
| Lan | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports PXE1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)- Supports Wake-On-LAN- Supports Lightning/ESD Protection- Supports Energy Efficient Ethernet 802.3az- Supports UEFI PXE |
| Raid | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)- Premium Blu-ray Audio support- Supports Surge Protection- WIMA Audio Capacitors (For Front Outputs)- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)- Pure Power-In- Direct Drive Technology- PCB Isolate Shielding- Impedance Sensing on Rear Out port- Individual PCB Layers for R/L Audio Channel- Gold Audio Jacks- 15μ Gold Audio Connector- Nahimic Audio |
| Slots | CPU:- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*Chipset:- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*- 1 x PCIe 3.0 x1 Slot (PCIE3)*- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)- Supports AMD CrossFire™- 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2)*Supports NVMe SSD as boot disks |
| Memory | – Dual Channel DDR5 Memory Technology- 4 x DDR5 DIMM Slots- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*- Max. capacity of system memory: 128GB- Supports Intel® Extreme Memory Profile (XMP) 3.0- 15μ Gold Contact in DIMM Slots*Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively.) |
| Storage | CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*- 6 x SATA3 6.0 Gb/s Connectors- 1 x Independent SATA3 6.0 Gb/s Connector*Supports Intel® Optane™ Technology (M2_2 only) Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Graphics | – Intel® Xe Graphics Architecture (Gen 12)- Three graphics output options: 1 x HDMI and 2 x Intel® Thunderbolt™ 4- Supports Triple Monitor- Supports Intel® Thunderbolt™ 4 with max. resolution up to 8K (7680×4320) @ 60Hz**- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port and Intel® Thunderbolt™ 4 Ports*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Supports two 4K displays or one 8K display |
| Connector | – 1 x SPI TPM Header- 1 x Power LED and Speaker Header- 1 x RGB LED Header*- 3 x Addressable LED Headers**- 1 x CPU Fan Connector (4-pin)***- 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****- 1 x VRM/Water Pump Fan Connector (4-pin)******- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)- 1 x Independent USB 3.2 Gen1 Type-A Connector- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)- 1 x Clear CMOS Button- 1 x Dr. Debug with LED- 1 x Power Button with LED- 1 x Reset Button with LED *Supports in total up to 12V/3A, 36W LED Strip**Support in total up to 5V/3A, 15W LED StripThe CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. CPU_FAN3/WP supports the water cooler fan of maximum 2A (24W) fan power.*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.******The VRM/Water Pump Fan Connector supports the VRM fan of maximum 2A (24W) fan power.CPU_FAN2/WP_3A, CPU_FAN3/WP, VRM_FAN1/WP, CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use |

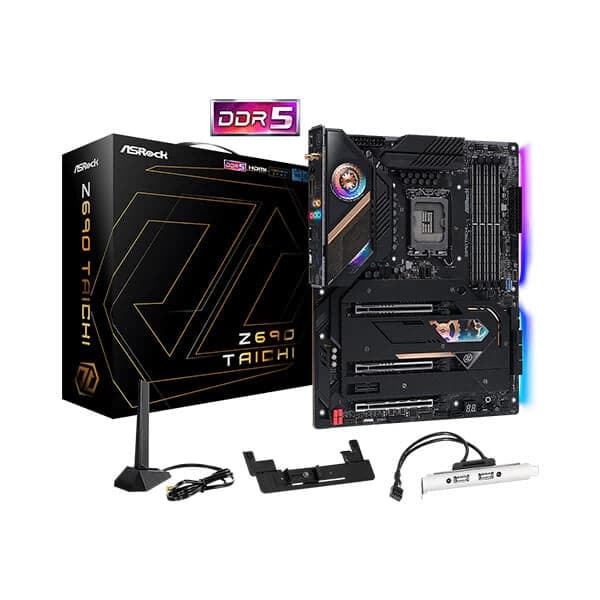

| Accessories | – Quick Installation Guide, Support CD- 4 x SATA Data Cables- 1 x Graphics Card Holder- 1 x Wireless Dongle USB Bracket- 1 x 3010 Cooling Fan with Bracket and Screw Package- 1 x 4010 Cooling Fan Bracket and Screw Package- 1 x ASRock WiFi 2.4/5/6 GHz Antenna- 3 x Screws for M.2 Sockets- 1 x Standoff for M.2 Socket |
| Wireless Lan | – 802.11ax Wi-Fi 6E Module- Supports IEEE 802.11a/b/g/n/ax- Supports Dual-Band 2×2 160MHz with extended 6GHz band support*- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology- Supports Bluetooth + High speed class II- Supports MU-MIMO- Supports Killer LAN Software- Supports Killer DoubleShot™ Pro |
| Certifications | – FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)- CEC Tier II ready |
| Rear Panel I/O | – 2 x Antenna Ports- 1 x HDMI Port- 1 x Optical SPDIF Out Port- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)- 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)*- 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)**- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)- 1 x BIOS Flashback Button- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED)*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging**USB3_2, USB3_3 and USB3_4 are from Intel® Z690; USB3_1 is from ASMedia ASM3042.USB3_1_2 are the Lightning Gaming Ports.Ultra USB Power is supported on USB3_3 port.ACPI wake-up function is not supported on USB3_3 port |
| Unique Feature | ASRock USB 4.0- ASRock USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol)ASRock USB 3.2 Gen2- ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s)- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium Power Choke- 105A SPS (Smart Power Stage)- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCB- 8 Layer PCB- 2oz Copper PCBServer-Grade Low-Loss PCBKiller 2.5G LAN802.11ax Wi-Fi 6EKiller DoubleShot™ ProASRock Auto Driver InstallerASRock Steel SlotsASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock Ultra USB PowerASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
| Hardware Monitor | – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, +0.82V PCH, +1.05V PCH, +1.05V PROC, DRAM, VCCIN_AUX, VCCSA |
| Software And Uefi | Software- ASRock Motherboard Utility (A-Tuning)- Killer Control Center- ASRock Polychrome SYNC*UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID Installer |
