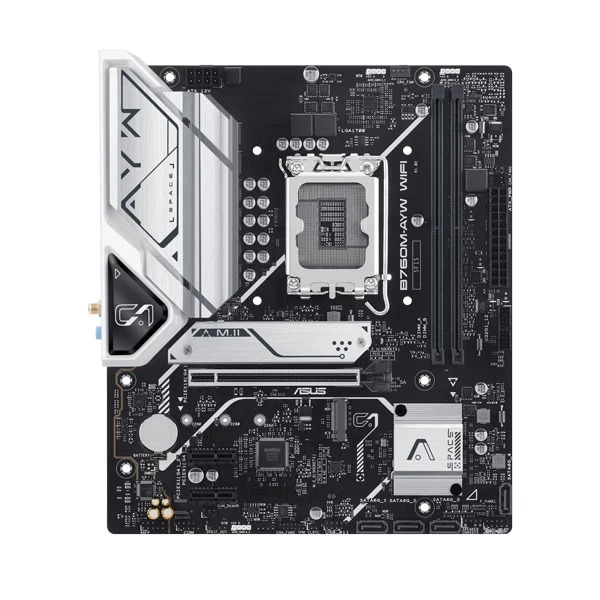

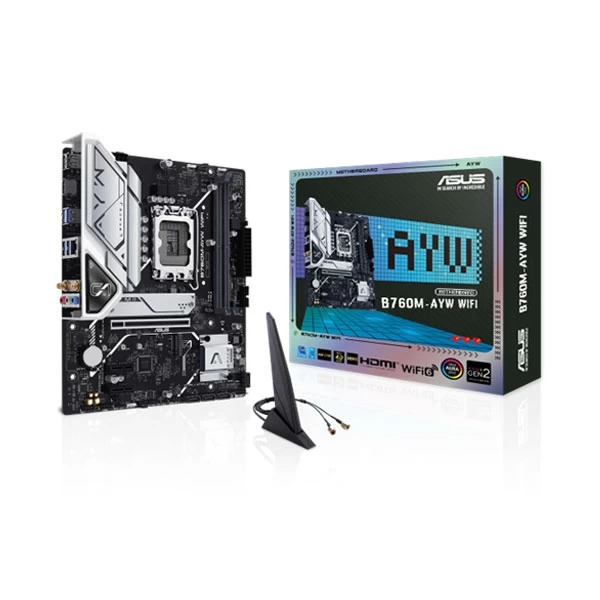

The Asus B760M-AYW WIFI DDR5 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: LGA 1700; Chipset: B760; Form Factor: Micro-ATX; Memory Type: DDR5; Memory Speed: up to 8000. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹10493 subject to availability — confirm at checkout
Gigabyte X870I Aorus Pro Ice WiFi7 M-ITX Motherboard
₹34,895.00
GIGABYTE B650 Aorus Pro AX Wifi DDR5 AMD Motherboard
₹27,715.00
Asus B760M-AYW WIFI DDR5 M-ATX Motherboard
₹11,450.00
Asus B760M-AYW WIFI DDR5 M-ATX Motherboard. Highlights: up to 8000
100 in stock
This item is selling fast!
Additional information
| Usb | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|---|---|
| Bios | 128 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Feature: – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
| Model | B760M-AYW-WIFI |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/ 7400(OC)/7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Graphics | 1 x HDMI port |
| Platform | INTEL |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide |
| Graphics Port | 1 x HDMI |
| Manageability | WOL by PME, PXE |
| Memory Feature | Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function |
| Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Special Feature | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core + – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED Core – Q-Slot ASUS EZ DIY – ProCool ASUS Thermal Solution – M.2 heatsink – VRM heatsink design Aura Sync – Addressable Gen 2 headers |
| Operating System | Windows 11, Windows 10 64-bit |
| Channel Supported | Dual Channel |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| Wireless Networking | WiFi 6,Bluetooth 5.3 |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Wireless & Bluetooth | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications |
| Internal I/O Connector | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Memory Type | DDR5 |
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | |
| Max Memory | 96 GB |
| Memory Speed | up to 8000 |
