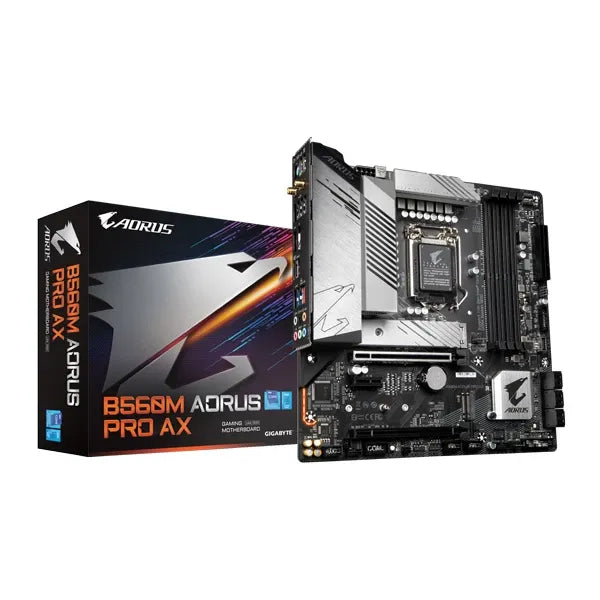

GIGABYTE B560M Aorus Pro AX Wifi DDR4 Intel Motherboard
MPN GIGABYTE-B560M-AORUS-PRO-AX · Brand Gigabyte · mATX
The GIGABYTE B560M Aorus Pro AX is a Micro ATX motherboard for Intel LGA1200 10th and 11th Gen processors, featuring a 12+1 phase digital VRM, Intel Wi-Fi 6, 2.5 GbE LAN, dual M.2 slots with PCIe 4.0 support, and USB 3.2 Gen2x2 connectivity
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B560M Aorus Pro AX is a Micro ATX motherboard built on the Intel B560 Express chipset, designed for Intel LGA1200 socket processors from the 10th and 11th generations. It supports Core i9, i7, i5, i3, Pentium, and Celeron processors from the 10th generation, while 11th generation support extends to Core i9, i7, and i5 families. The board measures 24.4 cm x 24.4 cm and fits standard Micro ATX cases. At the heart of its power delivery is a 12+1 phase digital VRM solution using 50A DrMOS components, paired with an 8-pin ATX 12V power connector. This configuration is designed to deliver stable voltage to demanding Intel 11th Gen processors, including those pushed with memory overclocking. Shielded memory routing further supports memory stability at elevated frequencies. Four DDR4 DIMM slots support up to 128 GB of system memory in dual-channel configuration, with XMP profile support. With 11th Gen processors, DDR4 speeds up to 5333 MHz (O.C.) are supported; 10th Gen Core i9/i7 CPUs support up to DDR4 2933, while i5/i3/Pentium/Celeron models top out at DDR4 2666. Storage connectivity is comprehensive: one M.2 slot (M2P_CPU) supports PCIe 4.0 x4 NVMe drives up to 2280 size when using an 11th Gen processor, while a second M.2 slot on the board's rear (M2A_SB) accepts PCIe 3.0 x4 or SATA-based M.2 drives up to 22110 size. Six SATA 6 Gb/s ports round out storage options, and the board is Intel Optane Memory Ready. Networking is handled by the Intel Wi-Fi 6 AX200 module, supporting 802.11a/b/g/n/ac/ax on 2.4 GHz and 5 GHz dual-band frequencies with 160 MHz channel support and up to 2.4 Gbps theoretical data rates. Bluetooth 5.1 is included. Wired networking uses an Intel 2.5 GbE LAN chip with cFosSpeed traffic-shaping software bundled. The rear I/O panel includes a USB Type-C port with USB 3.2 Gen2x2 (20 Gb/s) support, one USB 3.2 Gen2 Type-A port, two USB 3.2 Gen1 ports, six USB 2.0/1.1 ports, a PS/2 keyboard/mouse combo port, DisplayPort 1.2 (up to 4096x2304 at 60 Hz), HDMI 1.4 (up to 4096x2160 at 30 Hz), RJ-45, and six audio jacks for 7.1-channel audio via a Realtek HD Audio codec. Internal headers add further USB 3.2 Gen1 and USB 2.0 connectivity. Expansion consists of one PCIe x16 slot (PCIe 4.0 with 11th Gen, otherwise PCIe 3.0), one PCIe x16 slot running at x4, and one PCIe x1 slot. RGB Fusion 2.0 supports addressable LED (ARGB) and standard RGB strip headers board. Smart Fan 6 provides multi-zone fan and pump control with FAN STOP support. Q-Flash Plus enables BIOS updates without a CPU or memory installed. Verified Specifications: - Socket: LGA1200 | Chipset: Intel B560 Express - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4 x DDR4 DIMM, dual-channel, up to 128 GB, XMP support - Storage: 1 x M.2 PCIe 4.0 x4 (CPU, 11th Gen only), 1 x M.2 PCIe 3.0 x4/SATA (chipset), 6 x SATA 6 Gb/s - Wireless: Intel Wi-Fi 6 AX200, 802.11ax, 2.4/5 GHz, Bluetooth 5.1 - LAN: Intel 2.5 GbE - USB: 1 x USB-C 3.2 Gen2x2 (rear), 1 x USB 3.2 Gen2 Type-A (rear), 2 x USB 3.2 Gen1 (rear), 6 x USB 2.0 (rear) - Display: 1 x HDMI 1.4, 1 x DisplayPort 1.2 - Audio: Realtek HD, 7.1-channel - VRM: 12+1 phase digital, 50A DrMOS - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

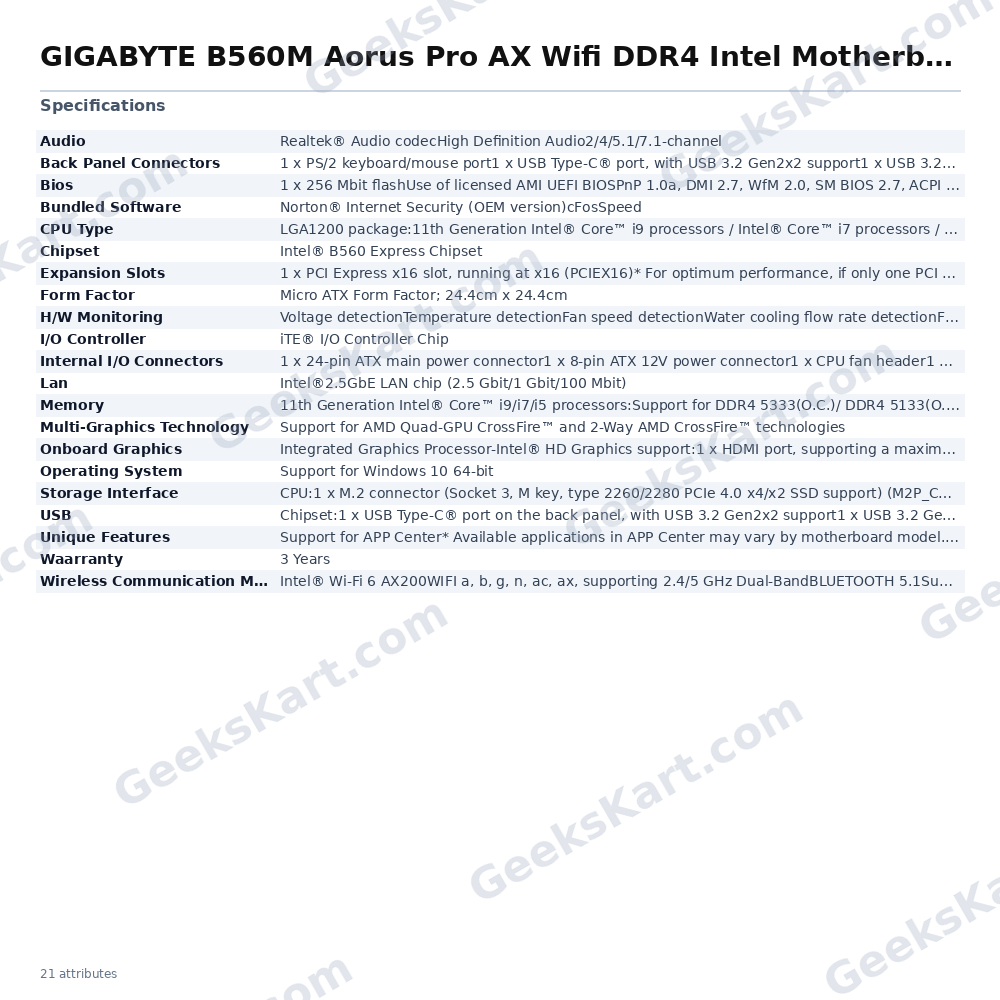

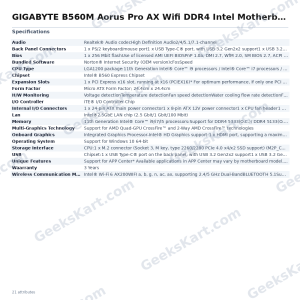

Datasheet
| Form Factor | mATX |
|---|---|
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support1 x USB 3.2 Gen2 Type-A ports (red) on the back panel2 x USB 3.2 Gen1 ports on the back panel2 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header2 x USB 3.2 Gen1 ports available through the internal USB headerChipset+ 2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio codecHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Waarranty | 3 Years |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)**Supported by 11th Generation processors only.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version, HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)** Supported by 11th Generation processors only.Chipset:1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C® port, with USB 3.2 Gen2x2 support1 x USB 3.2 Gen2 Type-A port (red)2 x USB 3.2 Gen1 ports6 x USB 2.0/1.1 ports1 x DisplayPort1 x HDMI port1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | Intel® Wi-Fi 6 AX200WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.1Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
