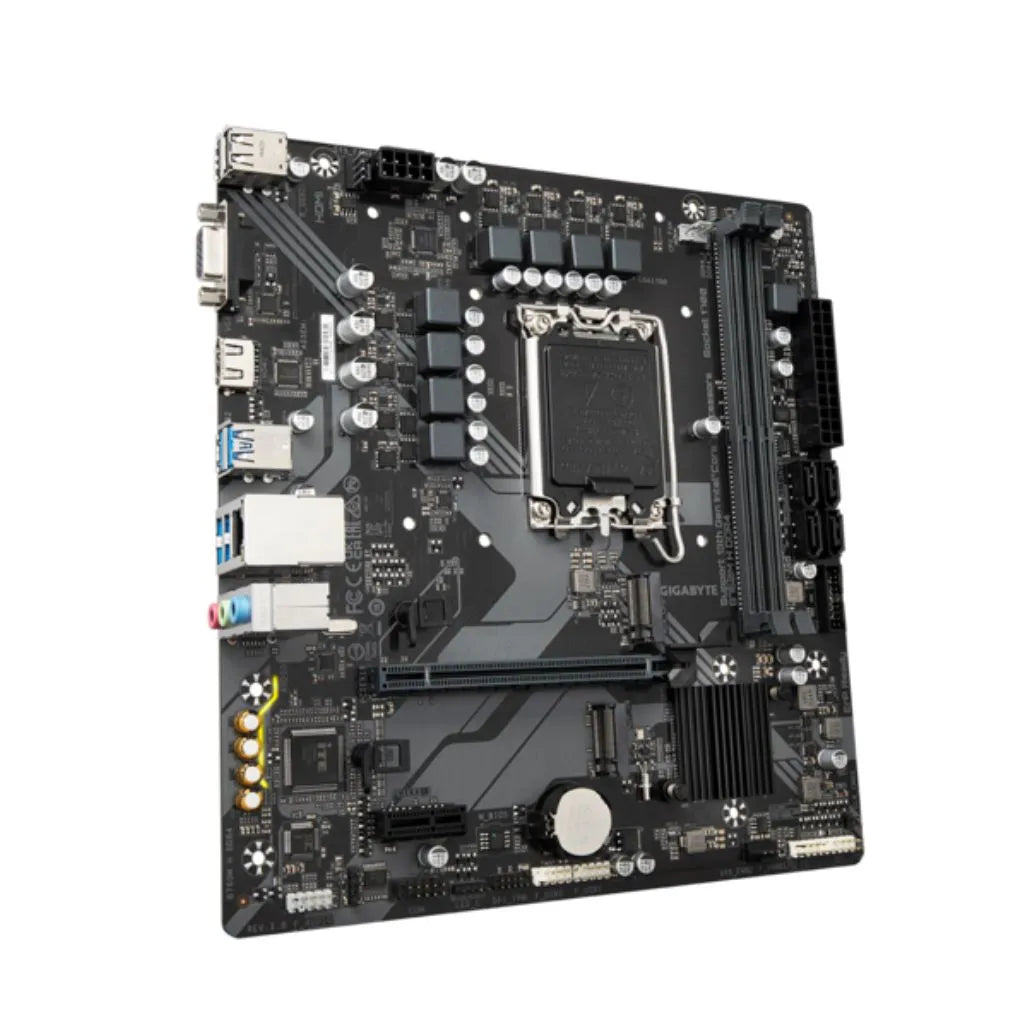

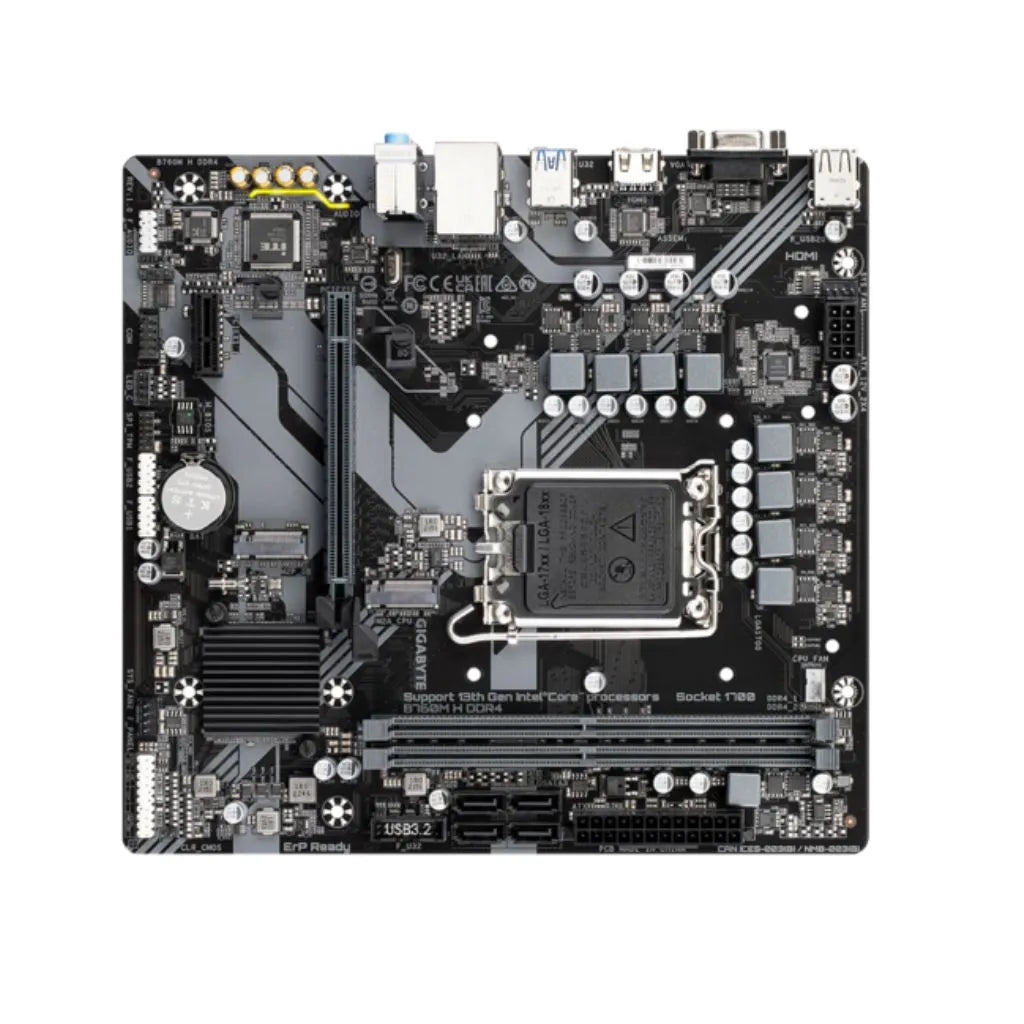

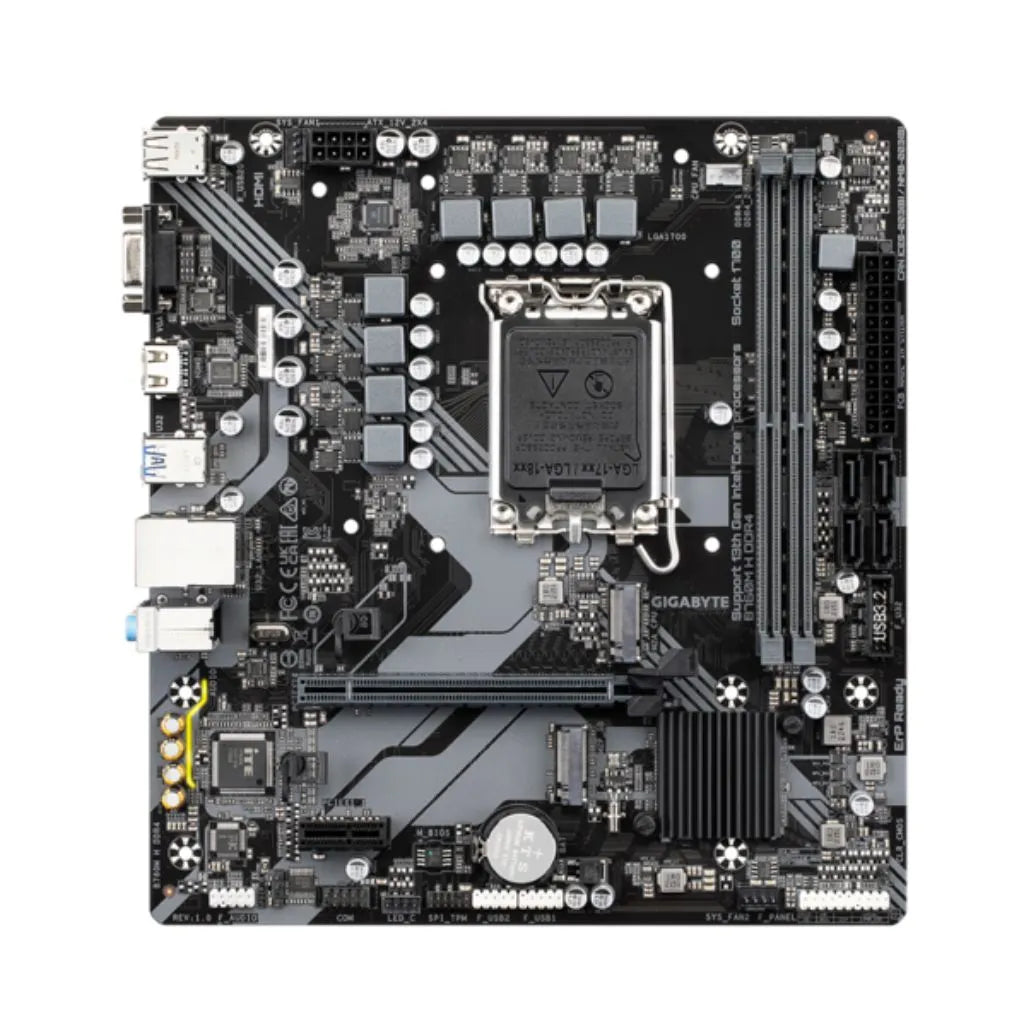

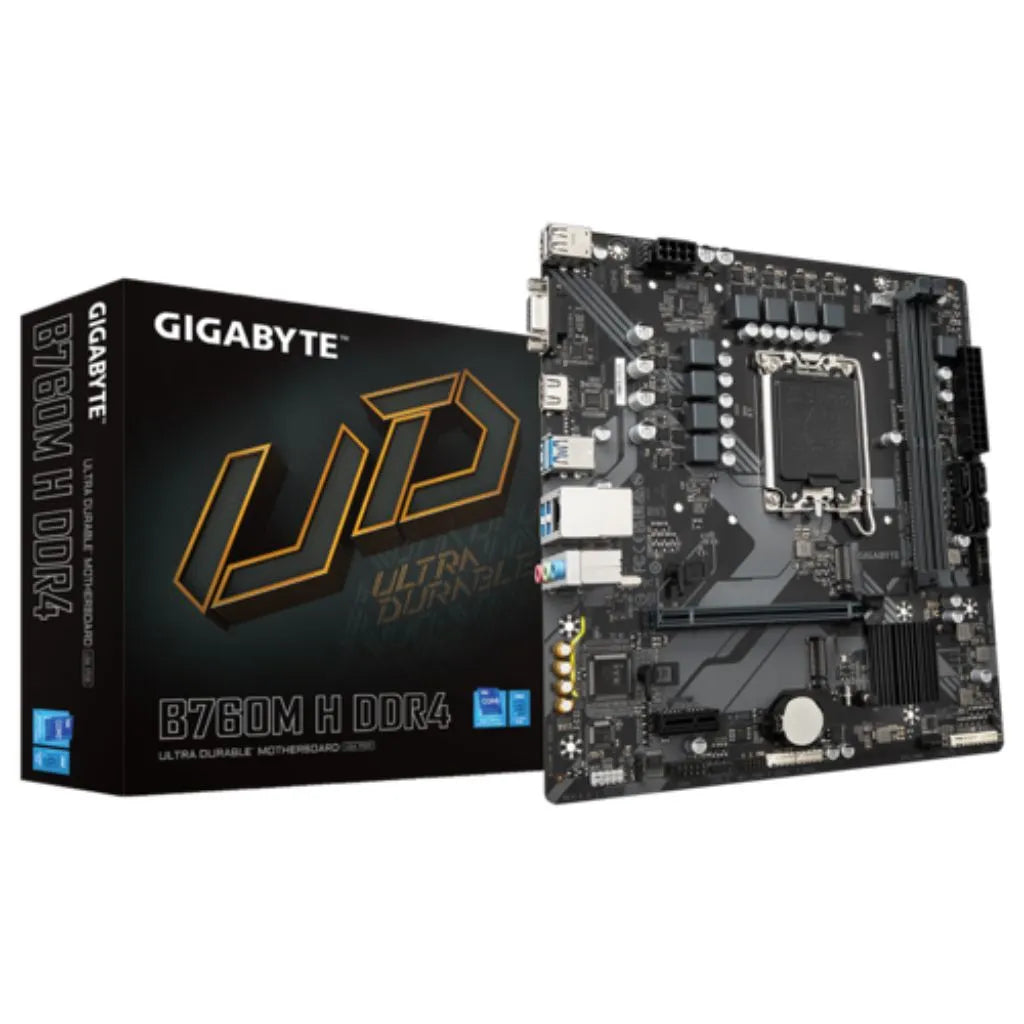

GIGABYTE B760M-H DDR4 Intel Motherboard

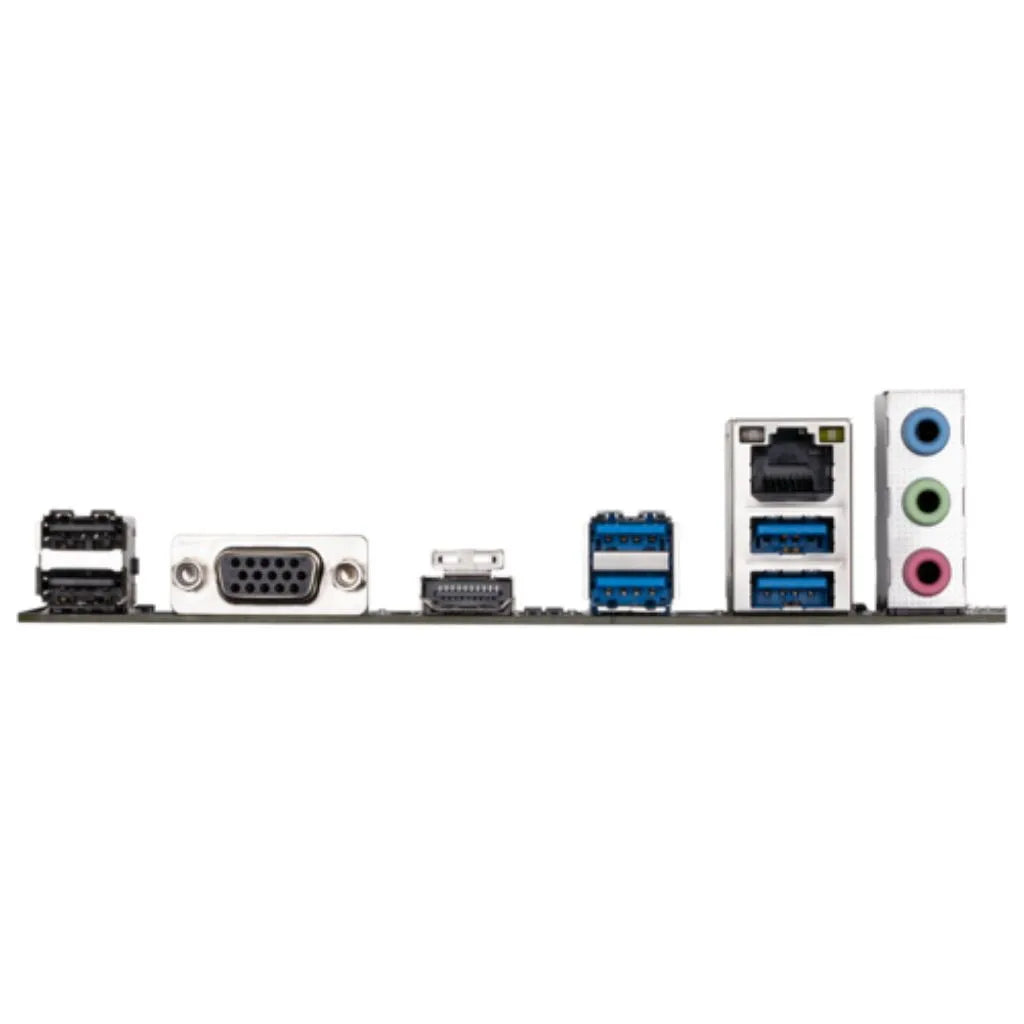

The GIGABYTE B760M-H DDR4 (Rev 1.0) is a Micro-ATX motherboard built on Intel's B760 Express chipset, designed for Intel LGA1700 socket processors. It supports both 12th Generation (Alder Lake) and 13th Generation (Raptor Lake) Intel Core, Pentium Gold, and Celeron processors, making it a versatile foundation for new builds and upgrades alike. Memory flexibility is covered by two DDR4 DIMM slots running in dual-channel configuration, supporting speeds from DDR4 2133 up to DDR4 3200 MT/s with XMP profile support. Total system memory capacity reaches up to 64 GB, with each slot accommodating up to a 32 GB module. For storage, the board provides two M.2 Socket 3 connectors — one CPU-direct (M2A_CPU) and one chipset-connected (M2P_SB) — both supporting PCIe 4.0 x4/x2 M.2 2280 SSDs. Four SATA 6Gb/s ports round out storage connectivity, and Intel Rapid Storage Technology enables SATA RAID 0/1/5/10 configurations. The primary expansion slot is a PCIe 4.0 x16 (CPU-direct) slot featuring GIGABYTE's EZ-Latch quick-release mechanism, alongside a chipset-connected PCIe 3.0 x1 slot. Display output is handled by one HDMI 2.0 port (up to 4K 3840×2160 @ 60 Hz, HDCP 2.3, HDR) and one VGA D-Sub port (up to 1920×1200 @ 60 Hz), both requiring integrated Intel graphics. Rear connectivity includes four USB 5 Gb/s (USB 3.2 Gen 1) Type-A ports, two USB 2.0 Type-A ports, a Realtek Gigabit Ethernet (10/100/1000 Mbps) RJ-45 port, and three 3.5 mm audio jacks (Line In, Line Out, Microphone). Audio is delivered through a Realtek 7.1 Surround Sound HD Audio codec with an onboard audio noise guard and high-end audio capacitors. Wi-Fi and Bluetooth are not included. GIGABYTE's Smart Fan 6 system provides intelligent thermal management through multiple temperature sensors, PWM/DC hybrid fan headers, and a fan-stop feature that silences fans below a user-defined threshold. The 6+1+1 phase digital VRM solution helps maintain stable CPU power delivery. BIOS is a 128 Mb Flash ROM UEFI AMI implementation with Easy Mode, My Favorites, and PerfDrive tuning for 13th Gen processors. An onboard RGB LED strip header allows basic lighting customisation. Verified Specifications: - Chipset: Intel B760 Express - Socket: LGA1700 (12th & 13th Gen Intel Core / Pentium Gold / Celeron) - Form Factor: Micro-ATX, 230 × 215 mm - Memory: 2x DDR4 DIMM, up to 64 GB, DDR4-2133 to 3200 MT/s, XMP, Dual Channel - Storage: 2x M.2 PCIe 4.0 x4 (2280), 4x SATA 6Gb/s, RAID 0/1/5/10 - Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) - Display: 1x HDMI 2.0 (4K@60Hz), 1x VGA D-Sub (1920×1200@60Hz) - USB (rear): 4x USB 5Gb/s Type-A, 2x USB 2.0 Type-A - LAN: Realtek 10/100/1000 Mbps Gigabit Ethernet - Audio: Realtek 7.1 Surround Sound HD Audio - BIOS: 128 Mb Flash ROM, UEFI AMI - OS Support: Windows 10 64-bit, Windows 11 64-bit - Warranty: 3 Years
