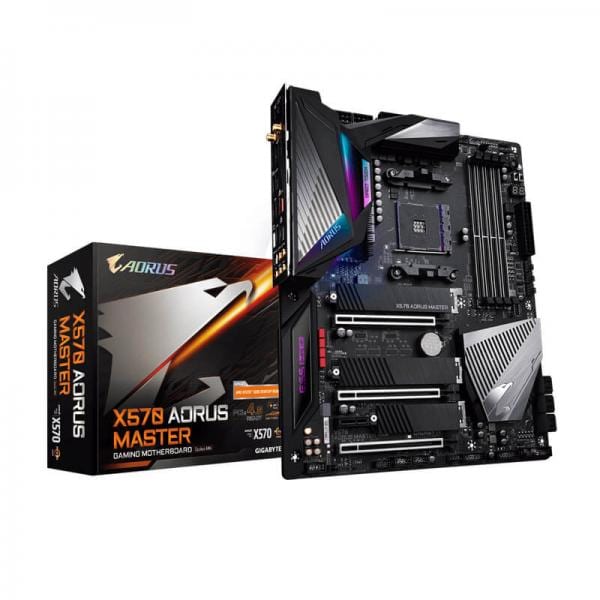

The Gigabyte X570 Aorus Master WiFi is a full-size ATX motherboard built on the AMD X570 chipset for Socket AM4 processors. It supports 3rd Generation and 2nd Generation AMD Ryzen processors, including Ryzen models with Radeon Vega Graphics, making it a capable platform for both new and previous-generation AMD builds. Power delivery is handled by a Direct 14-phase Infineon digital VRM solution with PowIRstage components, backed by a Fins-Array heatsink and Direct Touch heatpipe thermal design to keep the VRM running cool under sustained workloads. Two 8-pin ATX 12V connectors supply the CPU, and a dedicated water-cooling CPU fan header is provided alongside a standard CPU fan header. Memory support spans four DDR4 DIMM slots in dual-channel configuration with a maximum capacity of 128 GB (up to 32 GB per DIMM). With a 3rd Gen Ryzen processor installed, the board supports speeds up to DDR4-4400 (O.C.) and is compatible with XMP profiles. ECC unbuffered modules are also supported, giving workstation users added data integrity. Storage options are generous: three M.2 Socket 3 connectors (M key, supporting SATA and PCIe 4.0 x4 NVMe with 3rd Gen Ryzen), each covered by a thermal guard, plus six SATA 6 Gb/s ports with support for RAID 0, 1, and 10. For expansion, the board provides two CPU-connected PCIe 4.0 x16 slots (running at x16 and x8 with 3rd Gen Ryzen) and additional chipset-connected PCIe 4.0 slots, with support for NVIDIA SLI and AMD CrossFire multi-GPU configurations. Connectivity is handled by dual-band Intel Wi-Fi 6 (802.11ax, 2T2R, up to 2.4 Gbps) with Bluetooth 5.0, a Realtek 2.5 GbE LAN port, and an Intel Gigabit Ethernet port. Audio uses a Realtek ALC1220-VB codec paired with an ESS SABRE9118 DAC, delivering up to 7.1-channel HD audio with S/PDIF output. RGB Fusion 2.0 provides multi-zone addressable LED control with headers for both ARGB and standard RGB strips. Key Specifications: – Socket: AMD AM4 – Chipset: AMD X570 – Form Factor: ATX (30.5 cm x 24.4 cm) – Memory: 4x DDR4 DIMM, up to 128 GB, DDR4-4400 O.C. (3rd Gen Ryzen), dual-channel, ECC/non-ECC unbuffered, XMP – Storage: 3x M.2 PCIe 4.0/3.0 x4 (with thermal guards), 6x SATA 6 Gb/s, RAID 0/1/10 – PCIe: 2x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x4 (chipset), 1x PCIe 4.0/3.0 x1 (chipset) – Wireless: Wi-Fi 6 802.11ax 2T2R, Bluetooth 5.0 – LAN: Realtek 2.5 GbE + Intel GbE (dual NIC) – Audio: Realtek ALC1220-VB + ESS SABRE9118 DAC, 7.1-channel, S/PDIF – USB (rear): 1x USB-C 3.2 Gen 2, 3x USB-A 3.2 Gen 2, 2x USB 3.2 Gen 1, 4x USB 2.0 – BIOS: Dual BIOS, AMI UEFI, Q-Flash Plus (update without CPU/RAM) – Warranty: 3 Years
MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
₹10,605.00
GIGABYTE Z790 Eagle AX WiFi DDR5 Intel Motherboard
₹21,605.00
GIGABYTE X570 Aorus Elite Wifi DDR4 AMD Motherboard
₹43,465.00
The Gigabyte X570 Aorus Master WiFi is an AMD AM4 ATX motherboard featuring PCIe 4.0, triple M.2 with thermal guards, Wi-Fi 6, dual LAN (2.5 GbE + GbE), and a 14-phase Infineon VRM — suited for 2nd and 3rd Gen AMD Ryzen builds
Out of stock
Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | ATX |
| Chipset | AMD X570 |
| CPU Type | |
| Lan | 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2) |
| USB | Integrated in the CPU:2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel* For 3rd Generation AMD Ryzen™ processors only.2 x USB 3.2 Gen 1 ports on the back panelIntegrated in the Chipset:1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel4 x USB 3.2 Gen 1 ports available through the internal USB headersChipset USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB codec* The front panel line out jack supports DSD audio.ESS SABRE9118 DAC chipHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 3rd Generation AMD Ryzen™ processors:Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | Integrated in the CPU (PCIEX16/PCIEX8):3rd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)2nd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)Integrated in the Chipset (PCIEX4/PCIEX1):1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)* For 3rd Generation AMD Ryzen™ processors only.1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0* For 3rd Generation AMD Ryzen™ processors only |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboChargerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeedXSplit Gamecaster Broadcaster (12 months license) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Integrated in the CPU (M2A_SOCKET):3rd Generation AMD Ryzen™ processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)* For 3rd Generation AMD Ryzen™ processors only.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)* For 3rd Generation AMD Ryzen™ processors only.6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, and RAID 10* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Back Panel Connectors | 1 x Q-Flash Plus button1 x Clear CMOS button2 x SMA antenna connectors (2T2R)1 x USB Type-C™ port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)* For 3rd Generation AMD Ryzen™ processors only.1 x USB 3.2 Gen 2 Type-A port (red)2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x RJ-45 ports1 x optical S/PDIF Out connector5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C™ port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)2 x temperature sensor headers1 x power button1 x reset button2 x BIOS switches1 x Clear CMOS jumperVoltage Measurement Points |
| Multi-Graphics Technology | Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologiesFor 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only |
| Wireless Communication Module | Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.0Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
