GIGABYTE X870M Aorus Elite Wifi7 DDR5 AMD Motherboard
MPN GIGABYTE-X870M-AORUS-ELITE-WIFI7 · Brand GIGABYTE · mATX

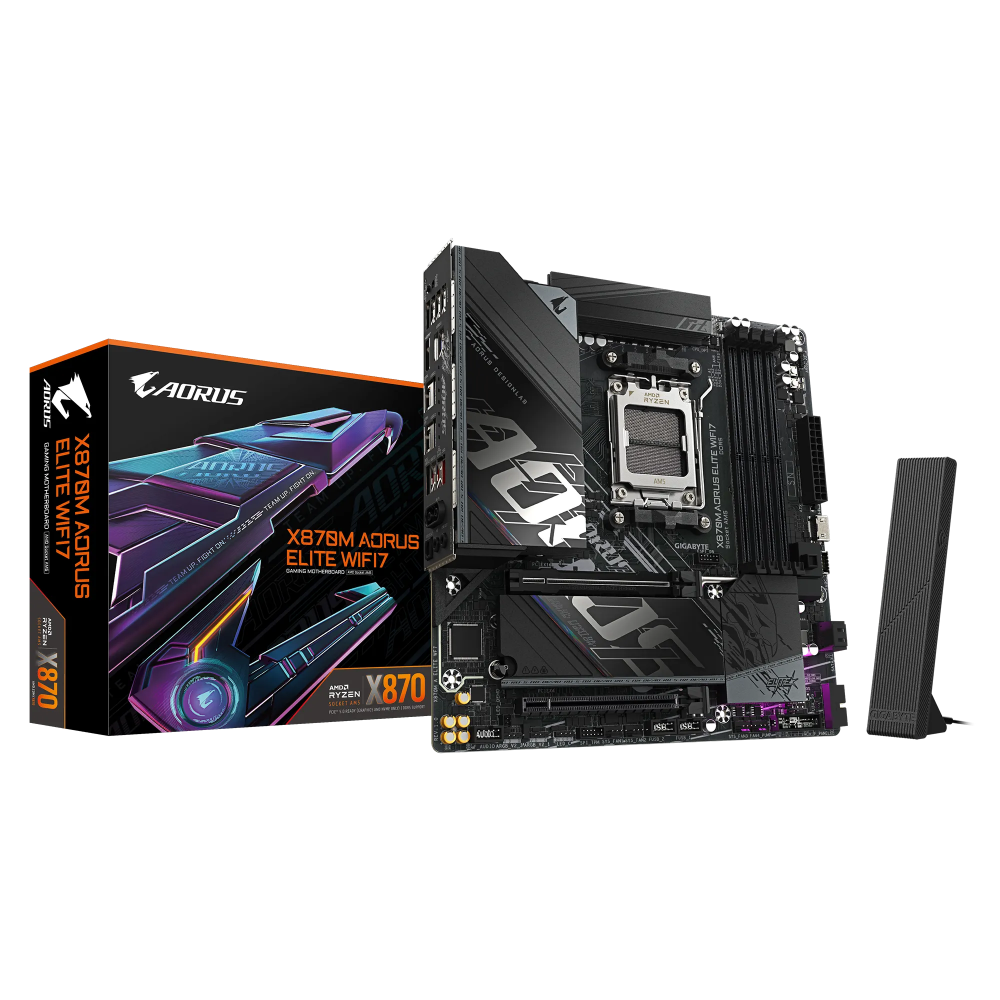

The GIGABYTE X870M Aorus Elite WiFi 7 is a Micro-ATX AM5 motherboard featuring the AMD X870 chipset, PCIe 5.0, Wi-Fi 7, USB4, and a 14-phase 60 A DrMOS VRM for AMD Ryzen 7000/8000/9000 series processors
Inclusive of GST · GST invoice available
Overview
The GIGABYTE X870M Aorus Elite WiFi 7 is a Micro-ATX motherboard built on the AMD X870 chipset for the AM5 socket, offering a feature-rich foundation for Ryzen 7000, 8000, and 9000 series processors in a compact 24.4 cm × 24.4 cm footprint. Its power delivery system centres on a 14-phase VCORE design using 60 A DrMOS components arranged in a 7+7 parallel configuration, supplemented by two 60 A DrMOS SOC phases and two MISC phases, ensuring stable power delivery under sustained CPU loads and overclocking scenarios. Memory support spans four DDR5 DIMM slots in a dual-channel architecture, accommodating up to 256 GB total capacity (up to 64 GB per DIMM). Speeds range from standard 4400 MT/s up to 8200 MT/s with overclocking, and the board supports both AMD EXPO and Intel XMP profiles for straightforward memory performance tuning. Connectivity is a standout strength. The board integrates a Realtek Wi-Fi 7 RTL8922AE module covering 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11be (160 MHz) support and Bluetooth 5.4, alongside a Realtek 2.5 GbE wired LAN port. USB options on the rear panel include two USB4 Type-C ports (supporting DisplayPort output at up to 3840×2160 @ 240 Hz), two USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, and four USB 2.0 ports. An internal USB 3.2 Gen 2×2 Type-C header adds front-panel flexibility. Storage is handled by two M.2 slots: the primary CPU-connected slot (M2A_CPU) supports PCIe 5.0 ×4 NVMe drives with Ryzen 9000/7000 processors and accepts blades up to 25110 mm, while the chipset-connected slot (M2C_SB) runs at PCIe 4.0 ×4. Two SATA 6 Gb/s ports round out storage, with RAID 0/1 available for SATA and RAID 0/1/5/10 for NVMe (RAID 5 requires Ryzen 9000). Expansion includes a CPU-connected PCIe 5.0 ×16 primary slot and a chipset PCIe 4.0 ×4 secondary slot. Audio is powered by a Realtek ALC1220 codec delivering up to 7.1-channel High Definition Audio with S/PDIF optical output. GIGABYTE's X3D Turbo Mode BIOS feature enables one-click gaming performance optimisation for both X3D and non-X3D Ryzen 9000 processors. Fan control extends to five system headers and two pump-capable headers, plus three addressable RGB Gen 2 headers and one standard RGB header for lighting customisation. Q-Flash Plus allows BIOS updates without a CPU or memory installed. Verified Specifications: - Form Factor: Micro ATX, 24.4 cm × 24.4 cm - Socket / Chipset: AM5 / AMD X870 - CPU Support: AMD Ryzen 7000, 8000, and 9000 series - Memory: 4 × DDR5 DIMM, up to 256 GB, 4400–8200 MT/s (O.C.), EXPO & XMP - Primary M.2: PCIe 5.0 ×4 (CPU), up to 25110 mm - Secondary M.2: PCIe 4.0 ×4 (Chipset), up to 22110 mm - SATA: 2 × 6 Gb/s - Primary PCIe Slot: PCIe 5.0 ×16 (CPU) - Secondary PCIe Slot: PCIe 4.0 ×4 (Chipset) - VRM: 14 VCORE phases (DrMOS 60 A, 7+7 parallel) + 2 SOC + 2 MISC - Wireless: Realtek Wi-Fi 7 RTL8922AE, 2.4/5/6 GHz, BT 5.4 - LAN: Realtek 2.5 GbE - Audio: Realtek ALC1220, 7.1-channel, S/PDIF out - USB (rear): 2 × USB4 Type-C, 2 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1, 4 × USB 2.0 - Display: HDMI 2.1 (4096×2160 @ 60 Hz), USB4 Type-C DP (3840×2160 @ 240 Hz) - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash, Q-Flash Plus - OS: Windows 11 64-bit
Datasheet

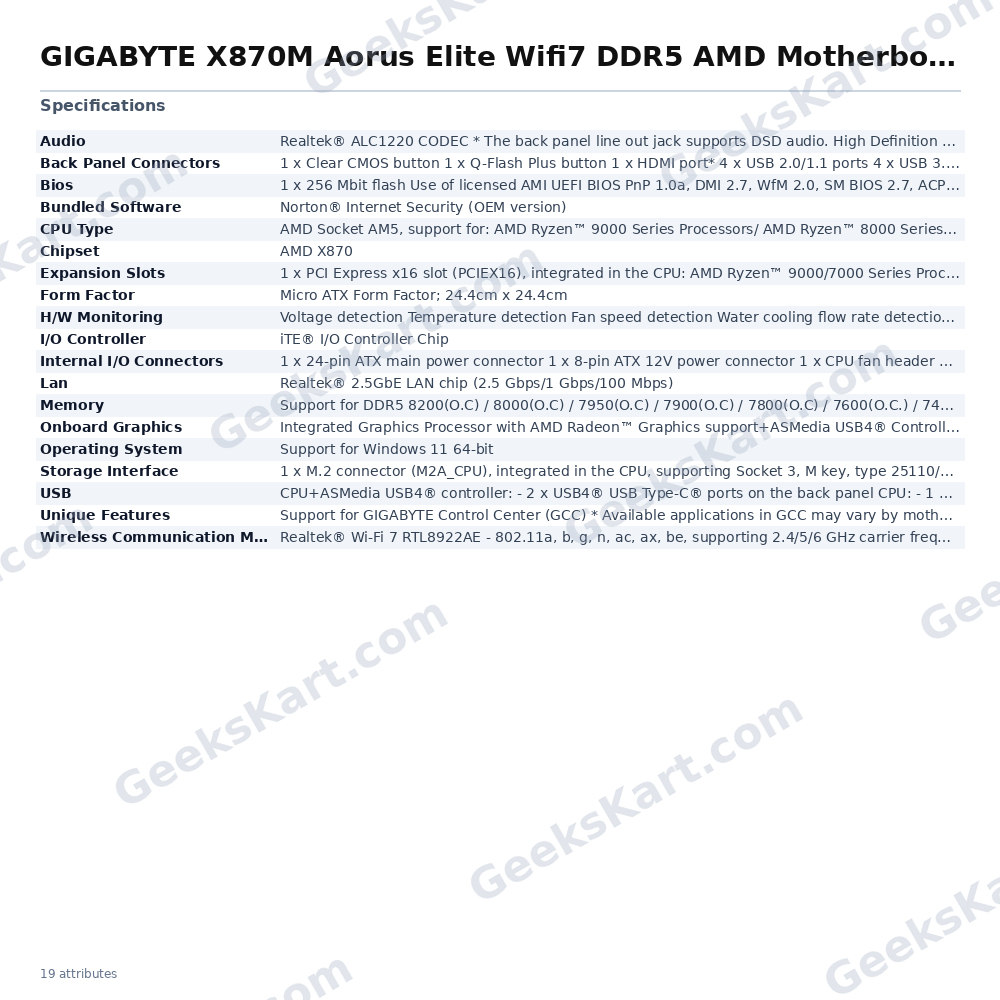

| Form Factor | mATX |
|---|---|
| Chipset | AMD X870 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU+ASMedia USB4® controller: – 2 x USB4® USB Type-C® ports on the back panel CPU: – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: – 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices |
| Back Panel Connectors | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port* 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB4® USB Type-C® ports (DisplayPort*) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU |
| Wireless Communication Module | Realtek® Wi-Fi 7 RTL8922AE – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details |
