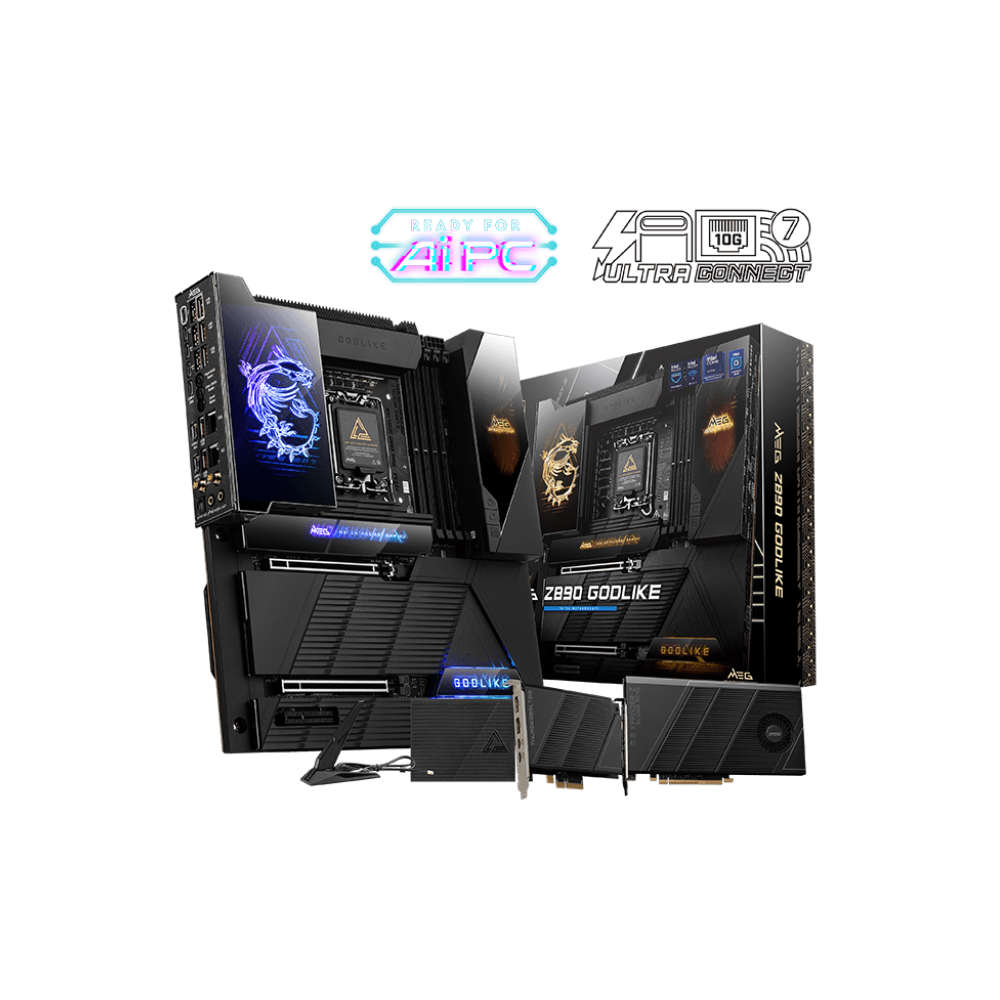

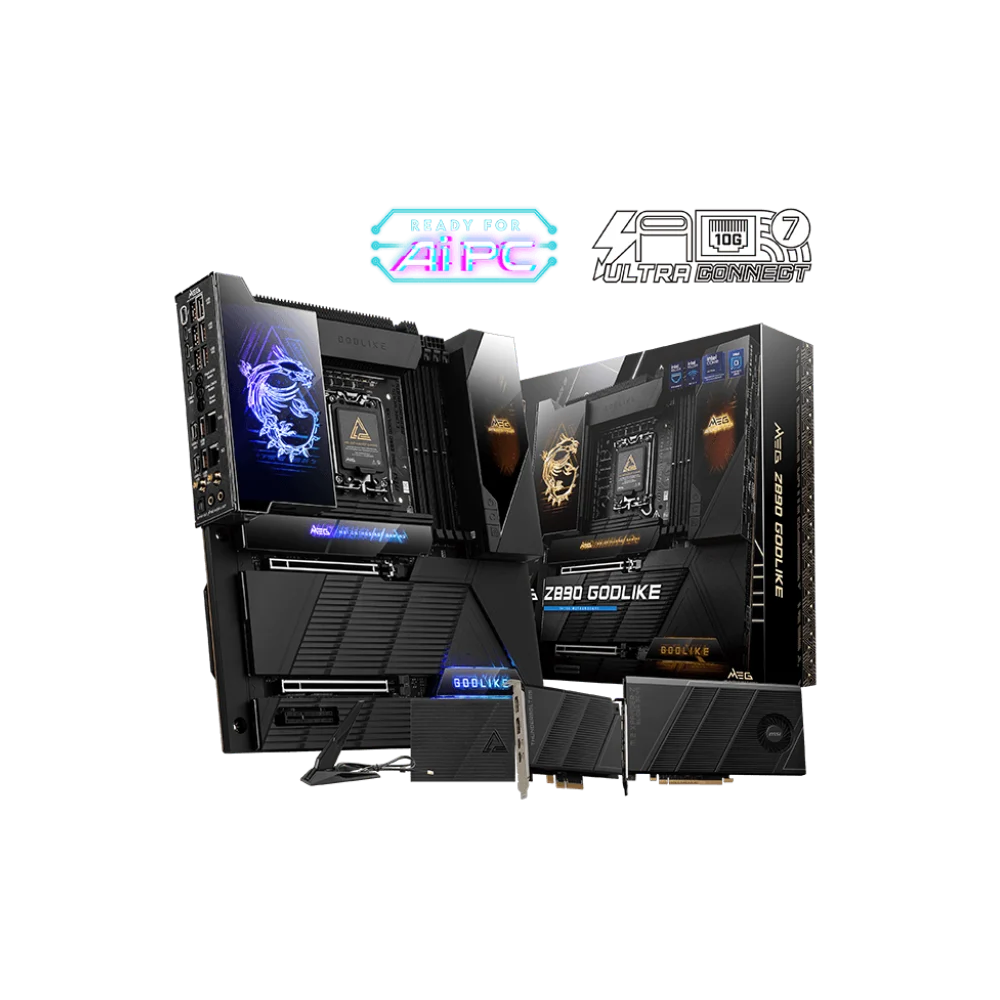

MSI Meg Z890 Godlike Wifi7 DDR5 Intel Motherboard

The MSI MEG Z890 Godlike is a flagship E-ATX motherboard built on the Intel Z890 chipset, designed to support Intel Core Ultra Series 2 processors in the LGA 1851 socket. It represents the top of MSI’s MEG lineup, combining extreme connectivity, advanced thermal engineering, and a rich feature set suited to enthusiast builders, competitive overclockers, and demanding content creation workloads. At the heart of its connectivity story, the MEG Z890 Godlike ships with full-speed Intel Killer BE1750x Wi-Fi 7, supporting tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz (up to 320 MHz channel width) for theoretical wireless speeds up to 5.8 Gbps, alongside Bluetooth 5.4 with MLO and 4KQAM. Wired networking is equally capable, pairing a Marvell AQC113CS 10 Gbps LAN controller with an Intel Killer E5000B 5 Gbps LAN port for aggregated or redundant Ethernet configurations. Storage flexibility is a defining strength. Six onboard M.2 slots are complemented by two additional PCIe 5.0 x4 M.2 slots delivered through the included M.2 XPANDER-Z SLIDER GEN5 card, bringing the total to eight M.2 connectors. Two of the onboard slots draw directly from the CPU via PCIe 5.0 x4, while the expansion card adds two more Gen5 slots. Four SATA 6 Gb/s ports are also available. RAID 0, 1, 5, and 10 are supported for both SATA and NVMe arrays. The power delivery system features a 26+2+1+1 Duet Rail configuration using 110A SPS power stages, backed by dual 8-pin CPU power connectors and a 10-layer PCB constructed with 2 oz thickened copper and server-grade materials. Thermal management is addressed by the Frozr Guard heatsink system, incorporating wavy fins, a direct-touch cross heat-pipe, MOSFET baseplate, and 9 W/mK thermal pads, alongside Double-Sided M.2 Shield Frozr coverage. A unique onboard feature is the Dynamic Dashboard III — a 3.99-inch full-color LCD panel for real-time hardware monitoring, BIOS update status, and personalised display output. Audio is handled by a Realtek ALC4082 codec paired with an ESS9219Q combo DAC/headphone amplifier, delivering 7.1-channel USB audio with up to 32-bit/384 kHz front panel playback and S/PDIF output. Thunderbolt connectivity includes an onboard Thunderbolt 4 header (front) and one rear Thunderbolt 4 Type-C port, each supporting 40 Gbps transfers and 8K display output. An internal Thunderbolt 5 accessory card connector (JTBT5) is also present, enabling optional dual Thunderbolt 5 ports with up to 160 Gbps total bandwidth and up to 27 W power delivery. USB rear I/O includes eight USB 10 Gbps Type-A, five USB 10 Gbps Type-C, and one USB 20 Gbps Type-C port. A front USB 20 Gbps Type-C header with 60 W Power Delivery is also included. Expansion slots comprise two PCIe x16 slots (PCIe 5.0 x16 and x8 from CPU) and one PCIe 4.0 x4 slot from the chipset. The board supports Windows 11 64-bit and measures 277 mm × 304.8 mm (E-ATX form factor). Key Verified Specifications: • Chipset: Intel Z890 • Socket: LGA 1851 (Intel Core Ultra Series 2) • Form Factor: E-ATX, 277 mm × 304.8 mm • Memory: 4× DDR5 UDIMM, up to 256 GB; up to 9200+ MT/s (OC, 1DPC 1R); XMP 3.0; CUDIMM support • M.2 Slots: 8 total (6 onboard + 2 via expansion card); up to PCIe 5.0 x4 • SATA: 4× SATA 6 Gb/s • PCIe Slots: 2× x16 (PCIe 5.0), 1× x4 (PCIe 4.0) • Wireless: Intel Killer BE1750x Wi-Fi 7 (802.11be), Bluetooth 5.4, up to 5.8 Gbps • LAN: 10 Gbps (Marvell AQC113CS) + 5 Gbps (Intel Killer E5000B) • Audio: Realtek ALC4082 + ESS9219Q DAC; 7.1-ch; 32-bit/384 kHz • Thunderbolt: 2× TB4 (onboard); TB5 card connector (accessory) • USB Rear: 8× USB 10G Type-A, 5× USB 10G Type-C, 1× USB 20G Type-C • Display Output: DisplayPort 2.1 (UHBR20) via TB4 Type-C; up to 8K@60Hz (iGPU required) • OS Support: Windows 11 64-bit
